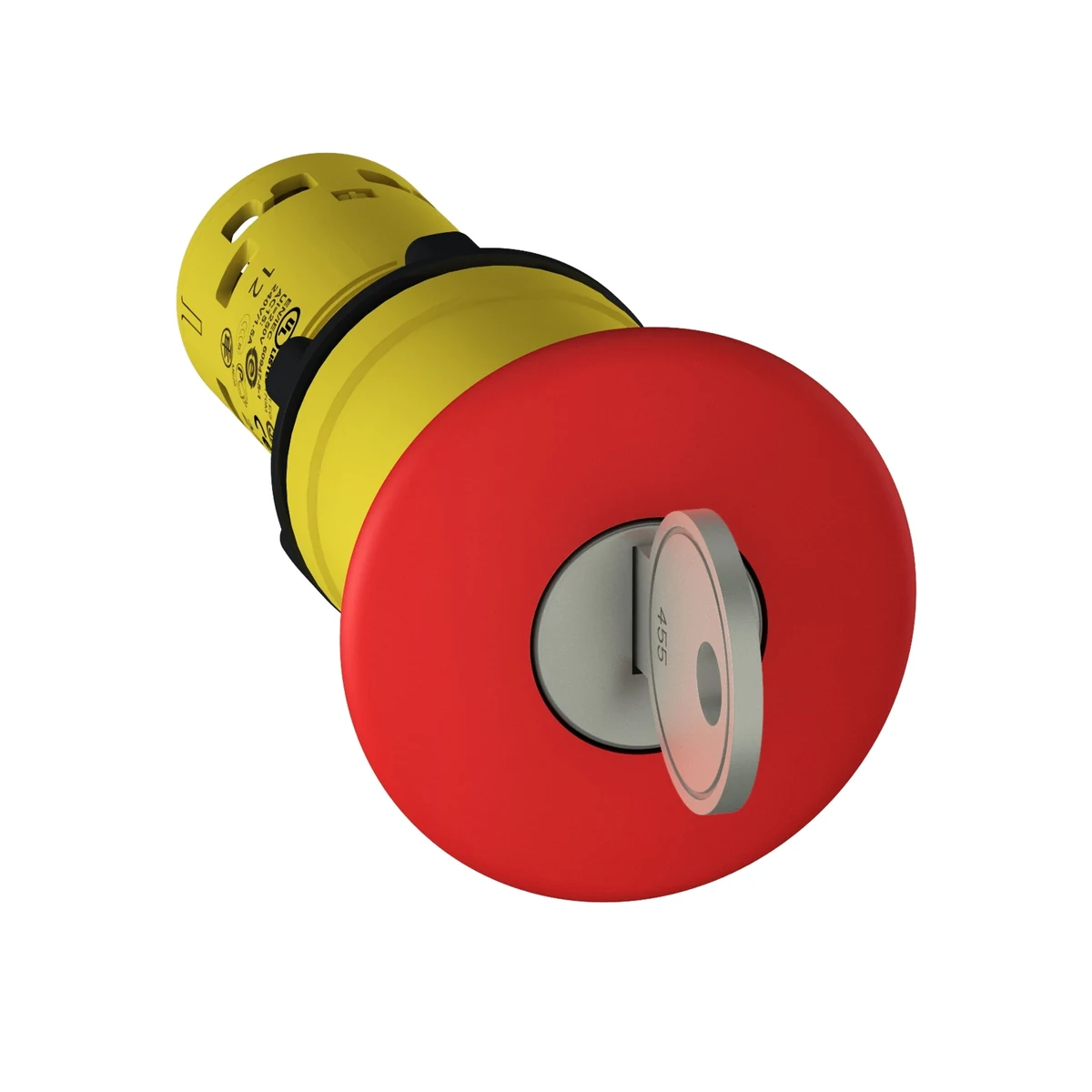

Schneider Electric XB7NS9445 1NO/1NC - Key-Operated Mushroom Red
- Brand: Schneider Electric
- SKU: XB7NS9445
- MPN: XB7NS9445
- Price: 1768.07 TRY + VAT · incl. VAT 2121.68 TRY
- Availability: Made to order
- Key-Operated Push Buttons
- Schneider Electric Key-Operated Push Buttons
- Selection guide: Key-Operated Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XB7NS9445 Teknik Veri Föyü (PDF)
Schneider Electric XB7NS9445 1NO/1NC - Key-Operated Mushroom Red. Technical specifications of this model: Color: Red
| Color | Red |
|---|---|
| Series | Harmony XB7 |
| Product Type | Acil Durdurma Butonu |
| Mounting Diameter | 22 mm |
| Signalling Head Shape | Round |
| Operating Mechanism Type | mandallama |
| Reset Type | Anahtarla bırakılan |
| Operator Profile | Kırmızı mantar Ø 40 mm, işaretsiz |
| Key Lock Type | Key 455 |
| Contact Arrangement | 1NO+1NC |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, 1 x 0,34…2 x 2,5 mm² kablo uçsuz (IEC 60947-1) |
| Device Presentation | Monolitik ürün |
| Terminal Designation (ISO) | (21-22)NC; (13-14)NO |
| Product Weight | 0.035 kg |
| Device Mounting | Sabitleme deliği - çap: 22,5 mm 22,3 +0,4/0 (IEC 60947-1) |
| Fixing Centres | >= 30 x 40 mm (destek paneli) metal 1…6 mm; >= 30 x 40 mm (destek paneli) plastik 2…6 mm |
| Fixing Method | Sabitleme somunu baş altı: 2…2,4 N.m |
| Contact Operation Type | Ani hareketli |
| Contact Usage | Standard |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Mechanical Endurance | 100000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Short-Circuit Protection | 4 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 5 x 10exp(-7) @ 17 V ve 5 mA (IEC 60947-5-4) |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| Electric Shock Protection Class | Sınıf II (IEC 60536) |
| IP Rating | IP20 (IEC 60529 (arka yüz)); IP65 (IEC 60529 (ön yüz)) |
| Enclosure Type | UL type 3/12 |
| Standards | IEC 60947-5-5; IEC 60364-5-53; ISO 13850; IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60204-1 |
| Certifications | CCC; GOST |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 15 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
