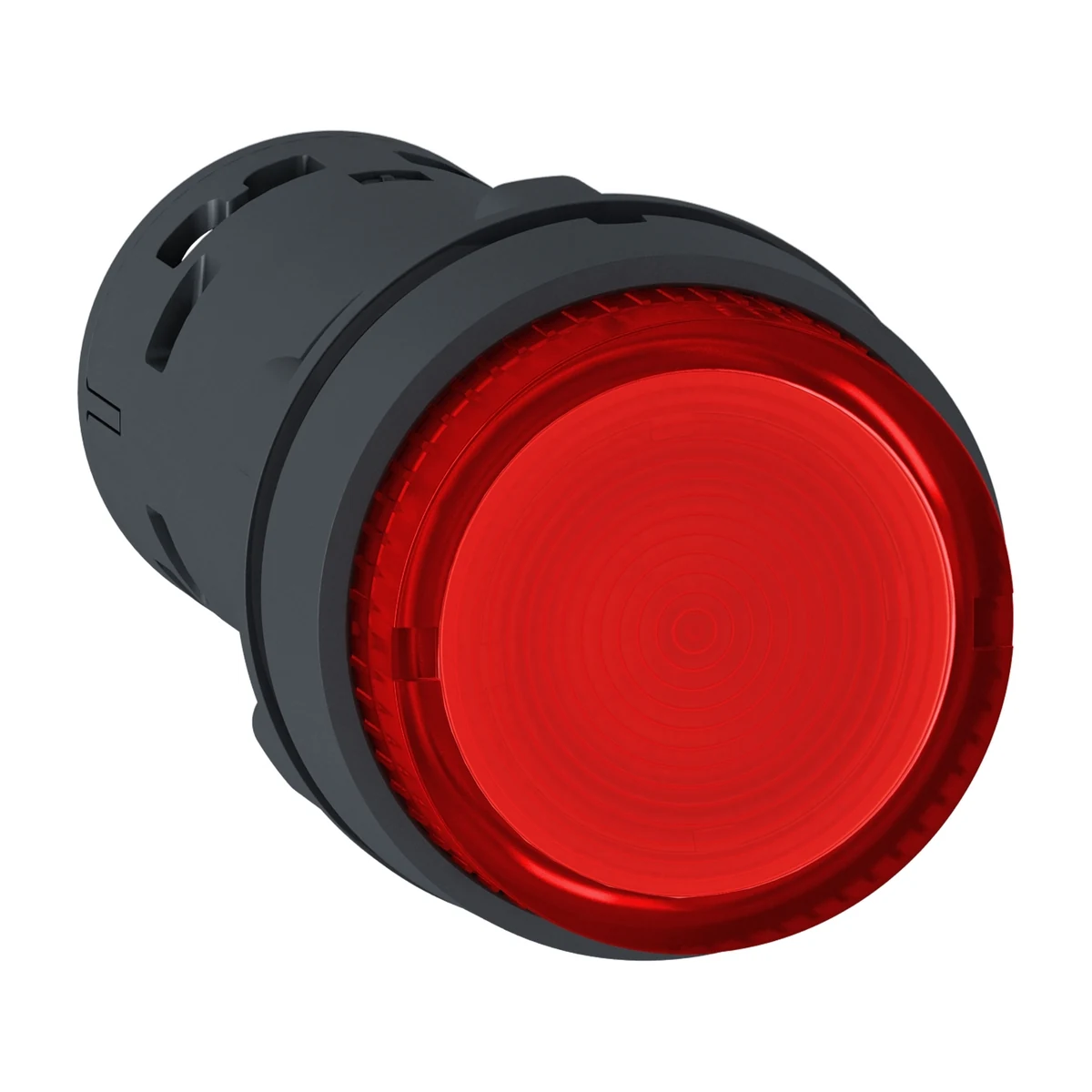

Schneider Electric XB7NW34M2 Kırmızı1NK
- Brand: Schneider Electric
- SKU: XB7NW34M2
- MPN: XB7NW34M2
- Price: 1167.59 TRY + VAT · incl. VAT 1401.11 TRY
- Availability: In stock
- Spring-Return Push Buttons
- Schneider Electric Spring-Return Push Buttons
- Selection guide: Spring-Return Push Buttons Selection Guide
- Schneider Electric XB7NW34M2 Teknik Veri Föyü (PDF)
Schneider Electric XB7NW34M2 Kırmızı1NK.
| Series | Harmony XB7 |
|---|---|
| Product Type | Işıklı buton |
| Mounting Diameter | 22 mm |
| IP Rating | IP20 (IEC 60529 (arka yüz)); IP65 (IEC 60529 (ön yüz)) |
| Signalling Head Shape | Round |
| Operating Mechanism Type | yaylı kurma |
| Operator Profile | Kırmızı çıkık, işaretsiz |
| Operator Additional Information | Daz lens ile |
| Contact Arrangement | 1NC |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, 1 x 0,34…2 x 2,5 mm² kablo uçsuz (IEC 60947-1) |
| Light Source | LED |
| Lamp Holder Type | Entegre LED |
| Rated Control Supply Voltage (Us) | 230 V AC @ 50/60 Hz |
| Device Presentation | Monolitik ürün |
| Terminal Designation (ISO) | (11-12)NC |
| Product Weight | 0.023 kg |
| Device Mounting | Sabitleme deliği - çap: 22,5 mm 22,3 +0,4/0 (IEC 60947-1) |
| Fixing Centres | >= 30 x 40 mm (destek paneli) metal 1…6 mm; >= 30 x 40 mm (destek paneli) plastik 2…6 mm |
| Fixing Method | Sabitleme somunu baş altı: 2…2,4 N.m |
| Contact Operation Type | Yavaş kesen |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Mechanical Endurance | 300000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Short-Circuit Protection | 4 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ <= 10exp(-6) @ 17 V ve 5 mA (IEC 60947-5-4) |
| Signalling Type | Fixed |
| Supply Voltage Limits | 195…264 V AC |
| Current Consumption | 22–27 mA |
| Service Life | 70000 h nominal gerilimde ve 25 °C |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| Electric Shock Protection Class | Sınıf II (IEC 61140) |
| Enclosure Type | UL type 12 |
| Standards | CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-1; UL 508; JIS C8201-1 |
| Certifications | GOST; CCC |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma |
| Electromagnetic Emission | Sınıf B (IEC 55011) |
