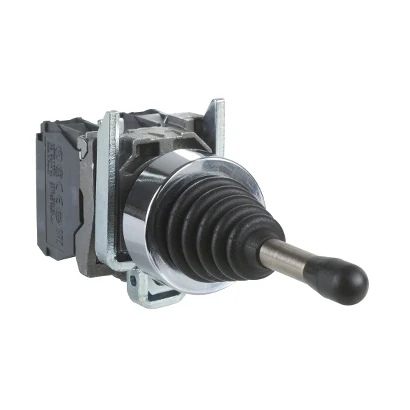

Schneider Electric XD4PA22 JOYSTICK
- Brand: Schneider Electric
- SKU: XD4PA22
- MPN: XD4PA22
- Price: 4892.77 TRY + VAT · incl. VAT 5871.32 TRY
- Availability: In stock
- Joystick Control Switches
- Selection guide: Joystick Control Switches Selection Guide: Technical Criteria & Application Standards
- Schneider Electric XD4PA22 Teknik Veri Föyü (PDF)
Schneider Electric XD4PA22 JOYSTICK.
| Series | Harmony XDA |
|---|---|
| Product Type | Kumanda kontrolörü |
| Bezel Material | Krom kaplı metal |
| Fixing Ring Material | Zamak |
| Mounting Diameter | 22.5 mm |
| Operating Mechanism Type | Yaylı kurma 0 konumuna, uzun çalışma mili 54 mm uzunluk |
| Operator Position Information | 3 konum |
| Contact Arrangement | 1NO |
| Contact Operation Type | Yavaş kesen |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Product Weight | 0.116 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Signalling Head Shape | Round |
| Contact Usage | Standard |
| Positive Opening | None |
| Mechanical Endurance | 1000000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Rated Operational Current (Ie) | 0,1 A @ 250 V, DC-13, R300 (IEC 60947-5-1); 0,22 A @ 125 V, DC-13, R300 (IEC 60947-5-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V, 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V, 5 mA temiz ortamda (IEC 60947-5-4) |
| Device Presentation | Angled |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| Electric Shock Protection Class | Sınıf I (IEC 60536) |
| IP Rating | IP66 |
| Enclosure Type | UL type 4X/13 |
| IK Impact Protection | IK03 (IEC 50102) |
| Standards | IEC 60947-5-5; UL 508; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-1; CSA C22.2 No 14; JIS C8201-1 |
| Certifications | CSA; LROS (Lloyds register of shipping); BV; UL listeli; DNV |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
