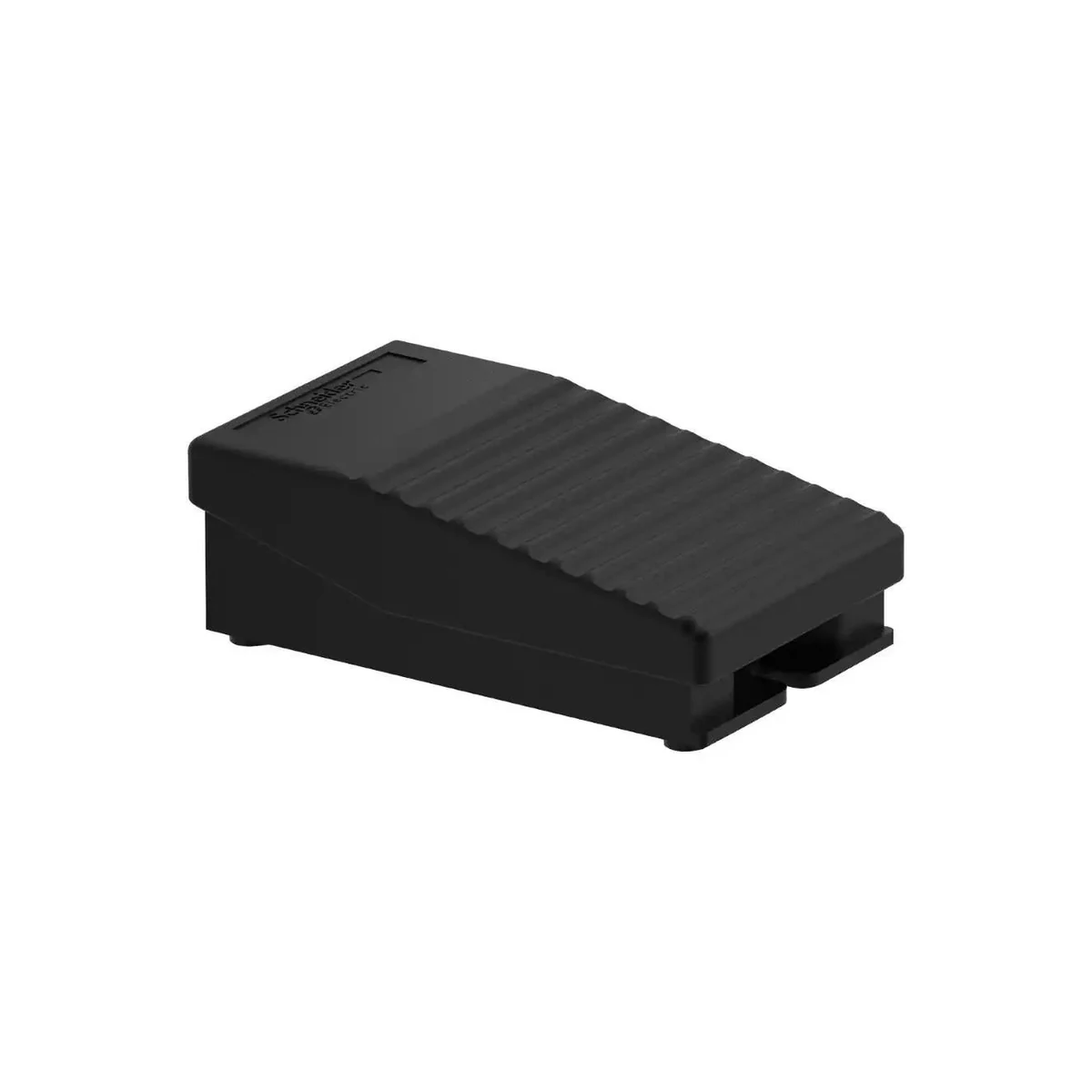

Schneider Electric XPEA110 Foot Switch
- Brand: Schneider Electric
- SKU: XPEA110
- MPN: XPEA110
- Price: 5476.57 TRY + VAT · incl. VAT 6571.88 TRY
- Availability: In stock
- Pedals
- Selection guide: Pedals Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XPEA110 Teknik Veri Föyü (PDF)
Schneider Electric XPEA110 Foot Switch. Technical specifications of this model: Mechanical Endurance: 2000000 cycles Product Weight: 0.275 kg
| Mechanical Endurance | 2000000 devir |
|---|---|
| Product Weight | 0.275 kg |
| Series | Harmony XPE |
| Product Type | Ayak anahtarı |
| Material | Plastic |
| Contact Operation Type | 1 adım |
| Contact Arrangement | 1NO+1NC |
| Color | Black |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Connection Terminals | Vida kelepçesi terminali, <= 1 x 2,5 mm² kablo uçlu veya uçsuz; Vida kelepçesi terminali, <= 2 x 1,5 mm² kablo uçlu veya uçsuz |
| Cable Entry | M20 kablo rakoru için 1 düz delik; M16 kablo rakoru için 1 düz delik |
| Rated Operational Current (Ie) | 3 A, 240 V, AC-15, A300; 0,27 A, 250 V, DC-13, Q300 (IEC 60947-5-1 ek A) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Maximum Resistance Between Terminals | 25 MOhm (IEC 60255-7 kategori 3); 25 MOhm (NF C 93-050 yöntem A) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1); 10 A kartuş sigortası tip gG (VDE 0660-200) |
| Standards | IEC 60947-5-1 |
| Operating Ambient Temperature | -25…55 °C |
| Storage Temperature | -40…70 °C |
| Vibration Resistance | 5 gn (f= 10…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 25 gn (IEC 60068-2-27) |
| IP Rating | IP43 |
