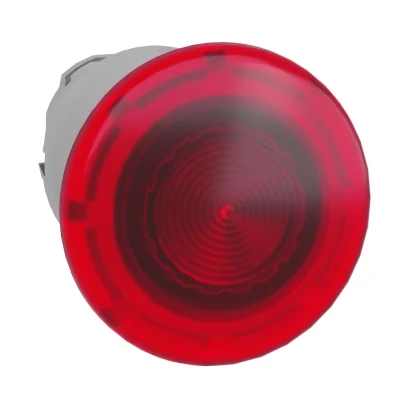

Schneider Electric ZB4BW643 Illuminated Mushroom Head Push-Pull
- Brand: Schneider Electric
- SKU: ZB4BW643
- MPN: ZB4BW643
- Price: 2446.39 TRY + VAT · incl. VAT 2935.67 TRY
- Availability: Made to order
- Mushroom Head Push Buttons
- Selection guide: Mushroom Head Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ZB4BW643 Teknik Veri Föyü (PDF)
Schneider Electric ZB4BW643 Illuminated Mushroom Head Push-Pull.
| Series | Harmony XB4 |
|---|---|
| Product Type | Işıklı acil kapatma basmalı düğmesi için başlık |
| Compatible Products | Evrensel LED |
| Bezel Material | Krom kaplı metal |
| Head Type | Standard |
| Mounting Diameter | 22.5 mm |
| Signalling Head Shape | Round |
| Operating Mechanism Type | mekanik mandallama |
| Reset Type | Itme-çekme |
| Operator Profile | Kırmızı mantar Ø 40 mm, işaretsiz |
| Head / Lens Colour | Red |
| Product Weight | 0.051 kg |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| Mechanical Endurance | 300000 cycles |
| Device Presentation | Temel alt montajlar |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| IP Rating | IP66 (IEC 60529); IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| IK Impact Protection | IK05 (IEC 62262) |
| Standards | JIS C8201-5-1; IEC 60364-5-53; IEC 60947-5-5; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-1; CSA C22.2 No 14; UL 508; JIS C8201-1 |
| Certifications | BV; CSA; DNV; LROS (Lloyds register of shipping); UL listeli |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
