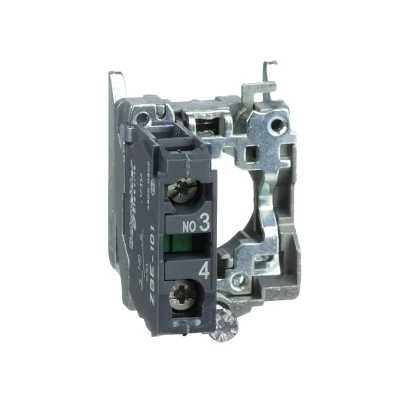

Schneider Electric ZB4BZ101 Contact Block with Screw Terminal B
- Brand: Schneider Electric
- SKU: ZB4BZ101
- MPN: ZB4BZ101
- Price: 472.60 TRY + VAT · incl. VAT 567.12 TRY
- Availability: In stock
- Push Button and Pilot Light Accessories and Spare Parts
- Schneider Electric Push Button and Pilot Light Accessories and Spare Parts
- Selection guide: Push Button and Pilot Light Accessories Selection Guide
- Schneider Electric ZB4BZ101 Teknik Veri Föyü (PDF)
Schneider Electric ZB4BZ101 Contact Block with Screw Terminal B.
| Series | Harmony XB4 |
|---|---|
| Product Type | Eksiksiz gövde/kontak tertibatı |
| Fixing Ring Material | Zamak |
| Head Type | Standard |
| Contact Arrangement | 1NO |
| Contact Operation Type | Yavaş kesen |
| Contact Block Type | Tek |
| Device Arrangement | Sabitleme bileziği; Gövde |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Terminal Designation (ISO) | (13-14)NO |
| Product Weight | 0.053 kg |
| Contact Usage | Standart kontaklar |
| Positive Opening | None |
| Operating Travel | 2,6 mm (Elektrik durumu değişimi YOK); 4,3 mm (toplam hareket) |
| Operating Force | 2,3 N Elektrik durumu değişimi YOK |
| Operating Torque | 0,05 N.m Elektrik durumu değişimi YOK |
| Mechanical Endurance | 5000000 cycles |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V, 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V, 5 mA temiz ortamda (IEC 60947-5-4) |
| Device Presentation | Temel alt montajlar |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| IP Rating | IP20 |
| Standards | CSA C22.2 No 14; IEC 60947-5-1; UL 508; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-5; IEC 60947-1; JIS C8201-1 |
| Certifications | BV; UL; CSA; DNV; LROS (Lloyds register of shipping) |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
