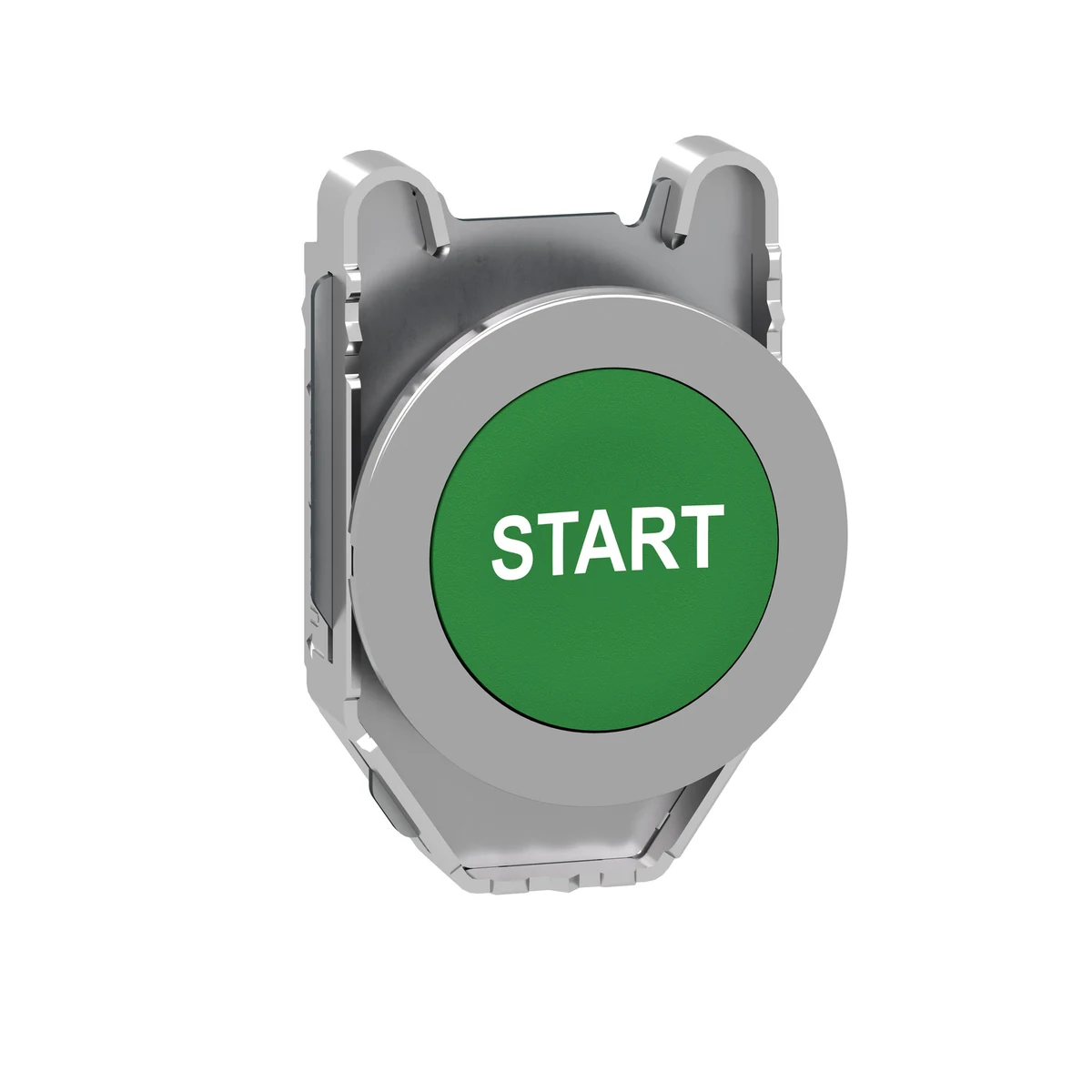

Schneider Electric ZB4FA333 Head with White "START" Text on Green, Green
- Brand: Schneider Electric
- SKU: ZB4FA333
- MPN: ZB4FA333
- Price: 2135.03 TRY + VAT · incl. VAT 2562.04 TRY
- Availability: Made to order
- Spring-Return Push Buttons
- Schneider Electric Spring-Return Push Buttons
- Selection guide: Spring-Return Push Buttons Selection Guide
- Schneider Electric ZB4FA333 Teknik Veri Föyü (PDF)
Schneider Electric ZB4FA333 Head with White "START" Text on Green, Green.
| Series | Harmony XB4 |
|---|---|
| Product Type | Işıksız Buton için başlık |
| Bezel Material | Krom kaplı metal |
| Mounting Diameter | 30.5 mm |
| Head Type | Ankastre |
| Signalling Head Shape | Round |
| Operating Mechanism Type | yaylı kurma |
| Operator Profile | Yeşil sıva altı, BAŞLAT (beyaz) |
| Head / Lens Colour | Green |
| Mechanical Endurance | 10000000 cycles |
| Device Presentation | Temel elaman |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| IP Rating | IP66 (IEC 60529); IP67 (IEC 60529); IP69 (IEC 60529); IP69K (ISO 20653); Type 13 (UL 50 E); Type 12 (UL 50 E); Type 4 (UL 50 E); Type 4X (UL 50 E) |
| IK Impact Protection | IK06 (IEC 50102) |
| Standards | CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1 |
| Certifications | UL listeli; CSA; CCC; EAC |
| Vibration Resistance | 5 gn (f= 10…500 Hz) (IEC 60068-2-6); 25 mm peak to peak (f= 2…10 Hz) (IEC 60068-2-6) |
