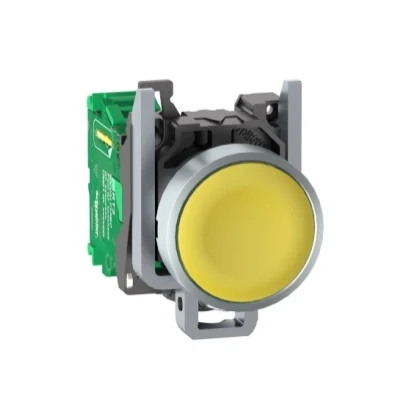

Schneider Electric ZB4RTA5 Yellow
- Brand: Schneider Electric
- SKU: ZB4RTA5
- MPN: ZB4RTA5
- Price: 10063.55 TRY + VAT · incl. VAT 12076.26 TRY
- Availability: Made to order
- Spring-Return Push Buttons
- Schneider Electric Spring-Return Push Buttons
- Selection guide: Spring-Return Push Buttons Selection Guide
- Schneider Electric ZB4RTA5 Teknik Veri Föyü (PDF)
Schneider Electric ZB4RTA5 Yellow. Technical specifications of this model: Color: Yellow
| Color | Yellow |
|---|---|
| Series | Harmony XB5 |
| Product Type | Kablosuz ve pilsiz iletici |
| Bezel Material | Krom kaplı metal |
| Fixing Ring Material | Zamak |
| Mounting Diameter | 22 mm |
| Transmission Frequency | 2405 MHz |
| Emission Class | 5M00G7W |
| Antenna Type | Çok yönlü |
| Signalling Head Shape | Round |
| Operating Mechanism Type | iletici ile yaylı dönüş basmalı düğme |
| Operator Profile | Sarı sıva altı |
| Maximum Power Consumption (W) | 1 mW |
| Channel Count | 16 |
| Modulation Technique | O-QPSK |
| Bandwidth | 5 MHz |
| Antenna Gain | 0 dBi |
| Flush Mounting Depth | 42 mm |
| Product Weight | 0.045 kg |
| Operating Travel | 4,3 mm (toplam hareket) |
| Operating Force | 10 N K/A değişimi elektrik durumu |
| Mechanical Endurance | Serbest düşme direnci 1000 mm (IEC 60068-2-32) |
| Standards | CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; UL 508 |
| Radio Approvals | ANATEL; ARIB T66; FCC; ICASA; RSS |
| Communication Protocol | Zigbee yeşil güç @ 2,4 GHz (IEEE 802.15.4) |
| Reception Time | 2 ms |
| Response Time | < 2 msn |
| Emission Power | 3 mW |
| Fixing Method | Sabitleme vidası baş altı: 0,8…1,2 N.m |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| Relative Humidity | 95 % @ -40…70 °C yoğuşmasız |
| IP Rating | IP66 (IEC 60529 (ön yüz)); IP67 (IEC 60529 (ön yüz)); IP69 (IEC 60529 (ön yüz)); IP69K (IEC 60529 (ön yüz)) |
| IK Impact Protection | IK03 (IEC 50102) |
| Vibration Resistance | 5 gn (f= 11…500 Hz) (IEC 60068-2-6); +/- 10 mm (f= 2…11 Hz) (IEC 60068-2-6) |
| Certifications | UL; CSA; C-Tick; GOST; BT 2006/95/EC |
