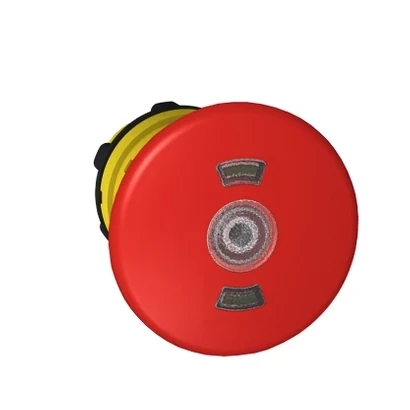

Schneider Electric ZB5AT8643M Emergency Stop with Status Indicator
- Brand: Schneider Electric
- SKU: ZB5AT8643M
- MPN: ZB5AT8643M
- Price: 1123.11 TRY + VAT · incl. VAT 1347.73 TRY
- Availability: Made to order
- Emergency Stop Buttons
- Schneider Electric Emergency Stop Buttons
- Selection guide: Emergency Stop Buttons Selection Guide
- Schneider Electric ZB5AT8643M Teknik Veri Föyü (PDF)
Schneider Electric ZB5AT8643M Emergency Stop with Status Indicator.
| Series | Harmony XALF; Harmony XB5 |
|---|---|
| Product Type | Işıklı acil durdurma basmalı düğmesi için başlık |
| Bezel Material | Koyu gri plastik |
| Head Type | Standard |
| Mounting Diameter | 22.5 mm |
| Signalling Head Shape | Round |
| Reset Type | Itme-çekme |
| Operator Profile | Kırmızı mantar Ø 40 mm, işaretsiz |
| Device Presentation | Temel elaman |
| Product Weight | 0.034 kg |
| Mechanical Endurance | 300000 cycles |
| Compatible Products | Entegre LED |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| IP Rating | IP54 |
| Enclosure Type | UL type 4X/13 |
| High-Pressure Washdown Resistance | 7000000 Pa @ 55 °C, mesafe: 0,1 m |
| IK Impact Protection | IK05 (IEC 50102) |
| Standards | GB 14048.5; UL 508; ISO 13850; IEC 60204-1; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-1; JIS C8201-1; IEC 60947-5-5 |
| Certifications | CSA; DNV; BV; LROS (Lloyds register of shipping); UL listeli |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
