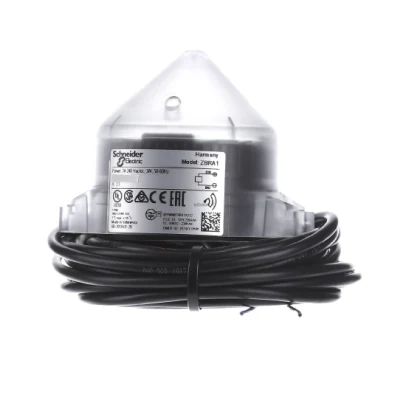

Schneider Electric ZBRA1 Booster Antenna, 5M Cable
- Brand: Schneider Electric
- SKU: ZBRA1
- MPN: ZBRA1
- Price: 10508.34 TRY + VAT · incl. VAT 12610.01 TRY
- Availability: Made to order
- Accessories and Spare Parts
- Schneider Electric Accessories and Spare Parts
- Selection guide: Accessories and Spare Parts Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ZBRA1 Teknik Veri Föyü (PDF)
Schneider Electric ZBRA1 Booster Antenna, 5M Cable.
| Series | Harmony XB5R |
|---|---|
| Product Type | Kablosuz ve pilsiz seri; Anten |
| Intended Field of Application | Kablosuz Schneider Electric ekosistem cihazları |
| Control Station Application | Alıcı-verici (emisyon ve alım) |
| Enclosure Base Colour | Black (RAL 9011) |
| Cover Color | Transparent |
| Material | Polikarbonat |
| Antenna Type | Çok yönlü |
| Antenna Gain | 0 dBi |
| Maximum Detection Distance | 100 m serbest alanda |
| Maximum Emission Power | 3 mW |
| Rated Control Supply Voltage (Us) | 24…240 V AC/DC 50/60 Hz +/- 10 % |
| Power Consumption (W) | 3 W AC/DC |
| Operating Position | Dikey |
| Status LED | 1 LED yeşil için güç AÇIK; 2 LED yeşil için emisyon sinyali |
| Overvoltage category | III |
| Electrical Connection | 2 iletken kablosu 0,34 mm² - esnek - 5 m |
| Tightening Torque | 0,6 N.m |
| Housing Material | Polikarbonat |
| Short-Circuit Protection | 0,06 A @ 24 V DC; 0,2 A @ 240 V AC |
| Channel Count | 1 |
| Product Weight | 0.2 kg |
| Storage Temperature | -40…70 °C |
| Relative Humidity | 5…90 % |
| Electric Shock Protection Class | Class II |
| IP Rating | IP65 |
| Pollution Degree | 3 |
| IK Impact Protection | IK03 |
| Certifications | CE; UL; CB; UKCA; FCC; IC; CCC; Giteki |
| Vibration Resistance | +/-0,5 mm (f= 10…55 Hz); 6 gn (f= 55…150 Hz) |
| Shock Resistance | 25 gn (süre = 6 ms) için 6000 şok; 15 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma |
| Insulation Resistance | > 500 MOhm @ 500 V DC |
| Rated Insulation Voltage (Ui) | 250 V |
