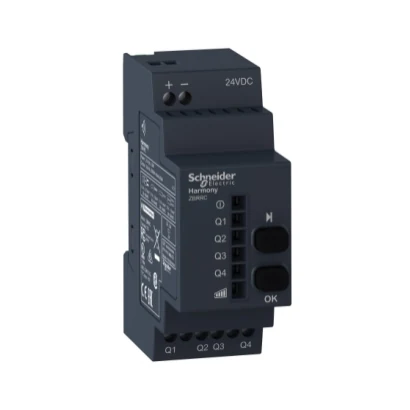

Schneider Electric ZBRRC 4 PNP Output (200 mA) Monostable Programmable Receiver
- Brand: Schneider Electric
- SKU: ZBRRC
- MPN: ZBRRC
- Price: 8951.55 TRY + VAT · incl. VAT 10741.86 TRY
- Availability: Made to order
- Push Buttons
- Schneider Electric Push Buttons
- Selection guide: Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ZBRRC Teknik Veri Föyü (PDF)
Schneider Electric ZBRRC 4 PNP Output (200 mA) Monostable Programmable Receiver.
| Series | Harmony XB5R |
|---|---|
| Product Type | Programlanabilir alıcı |
| Application | PLC için arayüz |
| Module Function | Tek kararlı |
| Transmission Frequency | 2405 MHz |
| Antenna Type | Çok yönlü |
| Antenna Gain | 0 dBi |
| Time Delay Range | 0,5 sn (tolerans: +/- 15 %) |
| Maximum Switching Current | 0,2 A DC |
| Minimum Switching Current | 10 mA DC |
| Rated Control Supply Voltage (Us) | 24 V DC +/- 15 % |
| Maximum Detection Distance | 100 m serbest alanda; 15 m plastik kutu tipinde XAL D verici ve metal bir muhafazada alıcı |
| Response Time | < 30 msn verici yerine oturduktan sonra |
| Utilization Category | DC-13 : R300 |
| Power Consumption (W) | 20 W DC |
| Short-Circuit Protection | 0,5 A sigorta tip hızlı çalışan |
| Tightening Torque | 0,6 N.m |
| Housing Material | Polikarbonat |
| Status LED | 1 LED yeşil için güç AÇIK; 1 LED yeşil ve sarı için radiofrequency reception signal; 4 LED yeşil için çıkış etkin |
| Mounting Support | 35 mm simetrik DIN rayı |
| Width | 36 mm |
| Height | 108 mm |
| Depth | 75 mm |
| Product Weight | 0.13 kg |
| Certifications | CE; UL; CB; UKCA; FCC; IC; CCC; Giteki |
| Storage Temperature | -40…70 °C |
| Relative Humidity | 5…90 % |
| Vibration Resistance | +/- 7,5 mm (f= 5…8 Hz); 2 gn (f= 8…150 Hz) |
| Shock Resistance | 10 gn (süre = 16 ms) için 6000 şok |
| IP Rating | IP20 |
| Pollution Degree | 2 |
| Overvoltage category | II |
| Insulation Resistance | > 500 MOhm @ 500 V DC |
| Rated Insulation Voltage (Ui) | 60 V |
