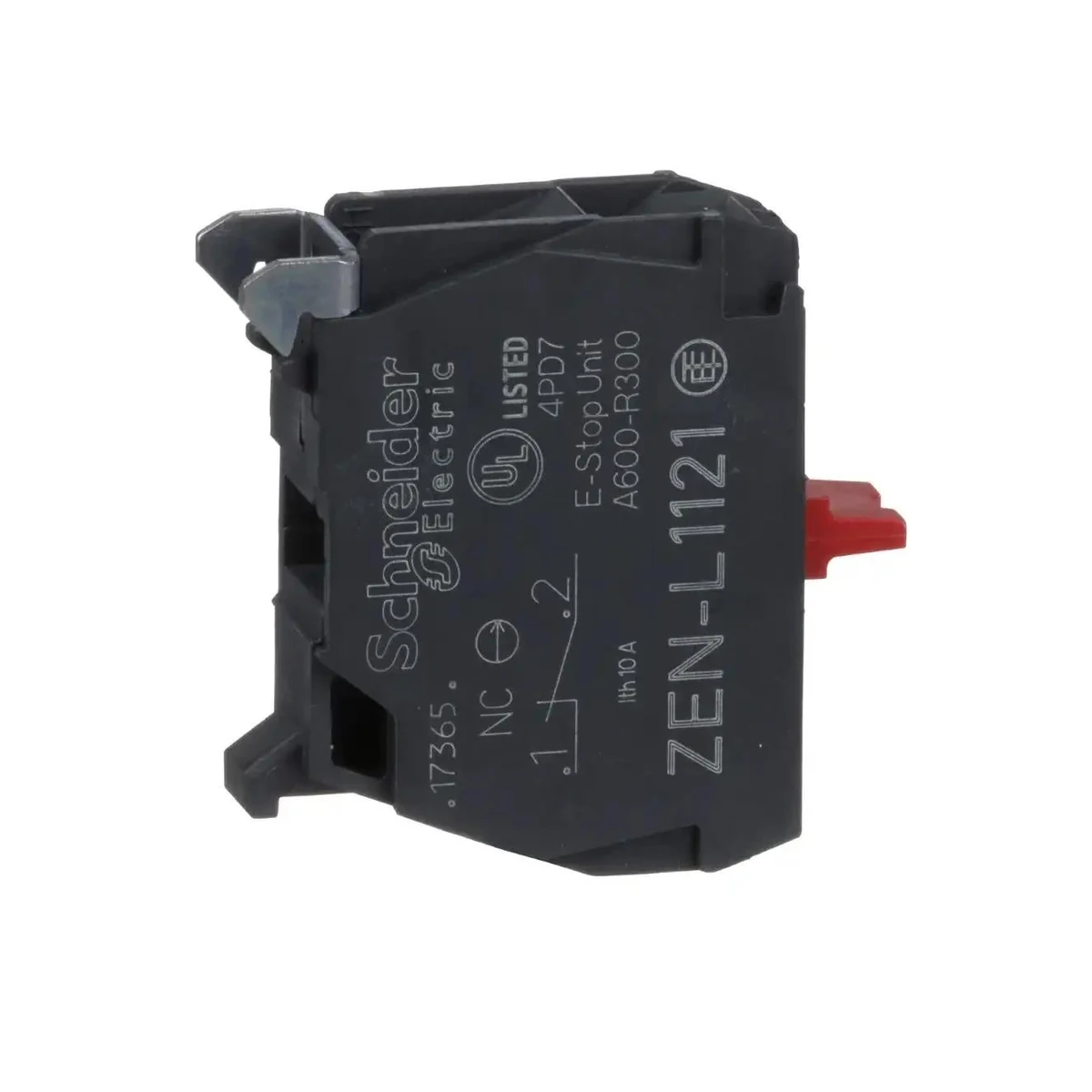

Schneider Electric ZENL1121 NC Control Box Contact Block
- Brand: Schneider Electric
- SKU: ZENL1121
- MPN: ZENL1121
- Price: 361.40 TRY + VAT · incl. VAT 433.68 TRY
- Availability: In stock
- Push Button and Pilot Light Accessories and Spare Parts
- Schneider Electric Push Button and Pilot Light Accessories and Spare Parts
- Selection guide: Push Button and Pilot Light Accessories Selection Guide
- Schneider Electric ZENL1121 Teknik Veri Föyü (PDF)
Schneider Electric ZENL1121 NC Control Box Contact Block. Technical specifications of this model: Mechanical Endurance: 10000000 cycles Product Weight: 0.015 kg
| Mechanical Endurance | 10000000 devir |
|---|---|
| Product Weight | 0.015 kg |
| Series | Harmony XAPS; Harmony XAL |
| Product Type | Kontak bloğu |
| Intended Field of Application | XAPS kontrol istasyonu için; XB5 Ø 22 mm kontrol ve sinyalleme birimleri için |
| Contact Arrangement | 1NC |
| Mounting Style | Müşteri tertibatı için |
| Contact Operation Type | Yavaş kesen |
| Positive Opening | Var (IEC 60947-5-1 ek K) |
| Operating Travel | 1,5 mm (NK değişimi elektrik durumu); 4,3 mm (toplam hareket) |
| Operating Force | 2 N NK değişimi elektrik durumu |
| Connection Terminals | Vida kelepçesi terminalleri, <= 2 x 1,5 mm² Kablo uçlu (IEC 60947-1); Vida kelepçesi terminalleri, >= 1 x 0,22 mm² kablo uçsuz (IEC 60947-1) |
| Tightening Torque | 0,8…1,2 N.m (IEC 60947-1) |
| Contact Material | Gümüş alaşım (Ag/Ni) |
| Maximum Resistance Between Terminals | 25 MOhm |
| Short-Circuit Protection | 10 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A (IEC 60947-5-1) |
| Rated Insulation Voltage (Ui) | 600 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ < 10exp(-6) @ 5 V ve 1 mA temiz ortamda (IEC 60947-5-4); Λ < 10exp(-8) @ 17 V ve 5 mA (IEC 60947-5-4) |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -40…70 °C |
| IP Rating | IP20 |
| Standards | IEC 60947-5-5; IEC 60947-5-4; UL 508; JIS C8201-5-1; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1 |
| Vibration Resistance | 5 gn (f= 12…500 Hz) (IEC 60068-2-6) |
| Shock Resistance | 30 gn (süre = 18 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27); 50 gn (süre = 11 ms) için yarım sinüs dalgası hızlandırma (IEC 60068-2-27) |
