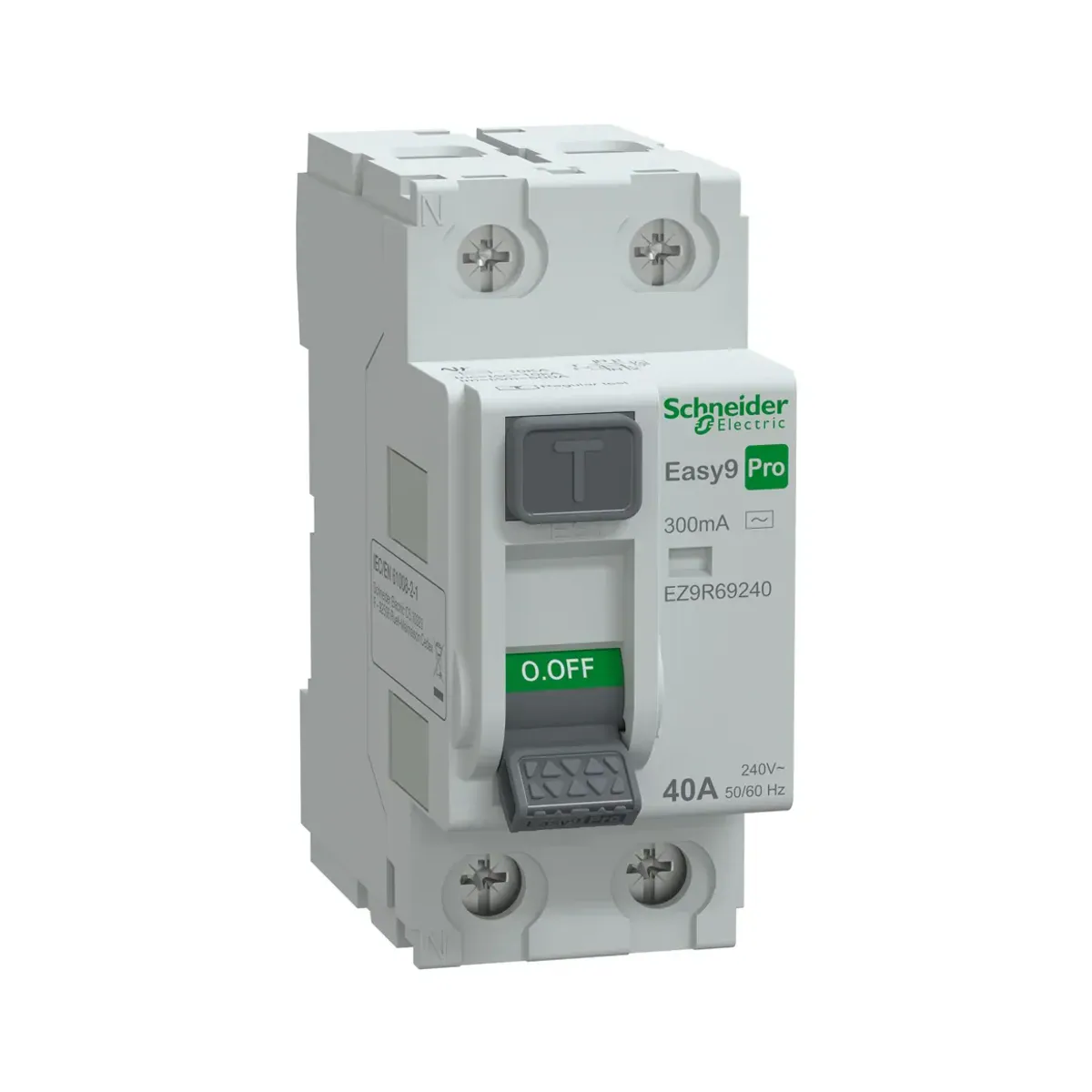

Schneider EZ9R69240 Easy9 Residual Current Device 2 Pole 40A 300mA AC Type 240V
- Brand: Schneider Electric
- SKU: EZ9R69240
- MPN: EZ9R69240
- Price: 1173.99 TRY + VAT · incl. VAT 1408.79 TRY
- Availability: In stock
- Residual Current Circuit Breakers (RCCB)
- Schneider Electric Residual Current Circuit Breakers (RCCB)
- Selection guide: Residual Current Devices Selection Guide
Schneider Electric EZ9R69240 — Pro RCD 2P 40A 300mA AC Type 240V. Current Sensitivity: 300mA Voltage: 240VAC Current: 40A Number of poles: 2 Poles Product Family: Easy9 XM devices Product Type: Residual current circuit breaker (RCCB) Short Device Name: Easy9 Pro RCCB Device Application: DISTRIBUTION Pole arrangement: 2P Neutral Position: LEFT Rated Current: 40 A Mains Type: AC Residual Current Protection Delay: INSTANTANEOUS Residual Current Protection Class: TYPE AC Rated Making and Breaking Capacity: 500 A Rated Conditional Short-Circuit Current: 10 KA Device Position in System: OUTGOER Mains Frequency: 50/60 Hz Rated Operational Voltage: 240 V AC 50/60 Hz Rated Insulation Voltage (Ui): 500 V Rated Impulse Withstand Voltage (Uimp): 4 KV Contact Position Indicator: Yes Impulse Current: 250 A Control type: TOGGLE Mounting Style: CLIP-ON Mounting Support: DIN rail Comb Busbar and Distribution Block Compatibility: TOP: PIN TYPEBOTTOM: PIN/FORK TYPE 9 mm Number of Module Pitches: 4 Height: 85 mm Width: 36 mm Depth: 79 mm Product Weight: 184 g Color: Gray (RAL 7035) Mechanical Endurance: 5000 CYCLES Electrical Endurance: 4000 CYCLES Connection Terminals: Tunnel terminal (top and bottom) 1…35 mm² Rigid; Tunnel terminal (top and bottom) 1…25 mm² Flexible Manufacturer Standard Declaration: IEC/EN 61008-1IEC/EN 61008-2-1 Manufacturer Certificate Declaration: CETSE IP Rating: IP20 Pollution Degree: 2 Tropical Environment Protection: 2 CONFORMING TO IEC 60068-1 Relative Humidity: 95 % AT 55 °C Operating Ambient Temperature: -5…60 °C Storage Temperature: -40…85 °C Halogen-Free Material Status: Product contains halogen above threshold values PVC-Free Declaration: No Series: Easy9 Pro
| Width | 36 mm |
|---|---|
| Mounting Style | CLIP-ON |
| Short Device Name | Easy9 Pro RCCB |
| Manufacturer Standard Declaration | IEC/EN 61008-1IEC/EN 61008-2-1 |
| Rated Operational Voltage | 240 V AC 50/60 Hz |
| Neutral Position | LEFT |
| Mounting Support | DIN rail |
| Device Application | DISTRIBUTION |
| 9 mm Module Pitch Count | 4 |
| Relative Humidity | 95 % AT 55 °C |
| Current Sensitivity | 300 mA |
| Manufacturer Certificate Declaration | CETSE |
| Electrical Endurance | 4000 CYCLES |
| Product Family | Easy9 XM devices |
| Residual Current Protection Class | TYPE AC |
| IP Rating | IP20 |
| Voltage | 240 V AC |
| Operating Ambient Temperature | -5…60 °C |
| Rated Current | 40 A |
| Pole Arrangement | 2P |
| Number of Poles | 2P |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Product Type | Kaçak akım koruma şalteri (RCCB) |
| Rated Conditional Short-Circuit Current | 10 kA |
| Product Weight | 184 g |
| Rated Insulation Voltage (Ui) | 500 V |
| Device Position in System | OUTGOER |
| PVC-Free Declaration | No |
| Halogen-Free Material Status | Ürün eşik değerlerin üzerinde halojen içerir |
| Height | 85 mm |
| Tropical Environment Protection | 2 CONFORMING TO IEC 60068-1 |
| Residual Current Protection Delay | INSTANTANEOUS |
| Impulse Current | 250 A |
| Mains Frequency | 50/60 Hz |
| Contact Position Indicator | Available |
| Mains Type | AC |
| Rated Making and Breaking Capacity | 500 A |
| Connection Terminals | Tünel tipi terminal (üst ve alt) 1…35 mm² Rijit; Tünel tipi terminal (üst ve alt) 1…25 mm² Esnek |
| Depth | 79 mm |
| Pollution Degree | 2 |
