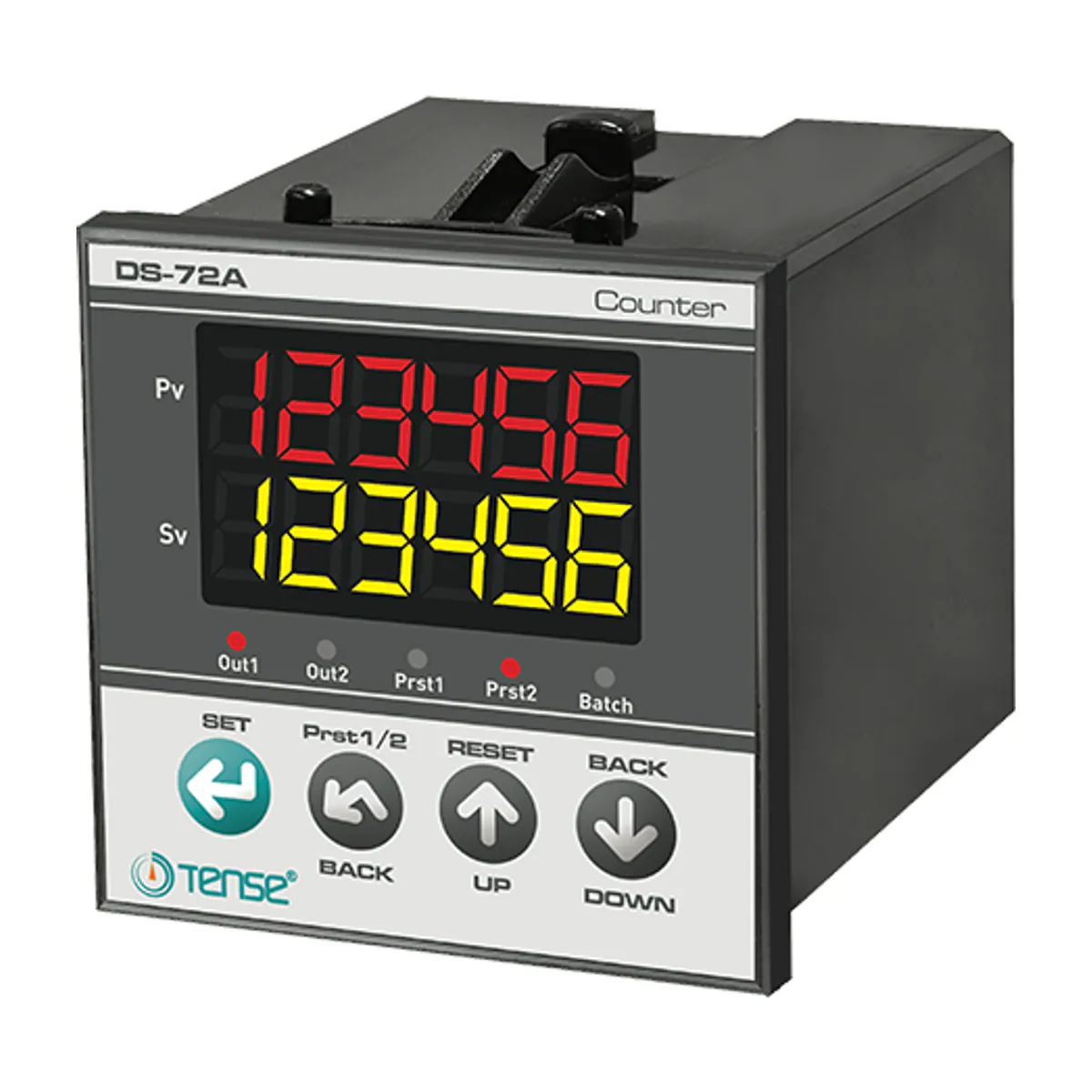

Tense DS-72A Digital Counter, 72 x 72 mm

• Brand: Tense
• SKU: DS-72A
• MPN: DS-72A
• Price: 2378.20 TRY + VAT · incl. VAT 2853.84 TRY
• Availability: In stock
• Tachometers and Counters
• Selection guide: Tachometers and Counters Selection Guide: Technical Criteria and Engineering Practice

Tense DS-72A, digital counter. Dimensions / Enclosure: 72 x 72 mm; Number of Setpoints: 2; Number of Outputs: 2; Inputs: CP1, CP2, RESET; Input Types: Dry contact, proximity and encoder (NPN/PNP/Totem Pole). Counter relays are designed to carry out certain operations depending on input pulses. Key Features: Up/Down Counter with Dual Contacts; Up/Down Counting with Phase-Shifted Input; Password-Protected; Selectable Counting Frequency; Calibration Multiplier Selectable Between 0.00001 and 9.99999; Adjustable Decimal Point Between Digits 1. and 5.; Choice of 7 Input Types and 10 Output Types; OFFSET Addition Feature; for PRESET1; Absolute/Relative Selection; Output Contacts; Continuous Output or 0.1…..999.9 sec.; Ability to Load the Last Count Value at the Moment of Power Loss on Power-Up After Power Loss; RESET from the Panel; Ability to Monitor the PRESET 1/2 Value on the Display; Ability to Keep Control Parameters in Permanent Memory.
