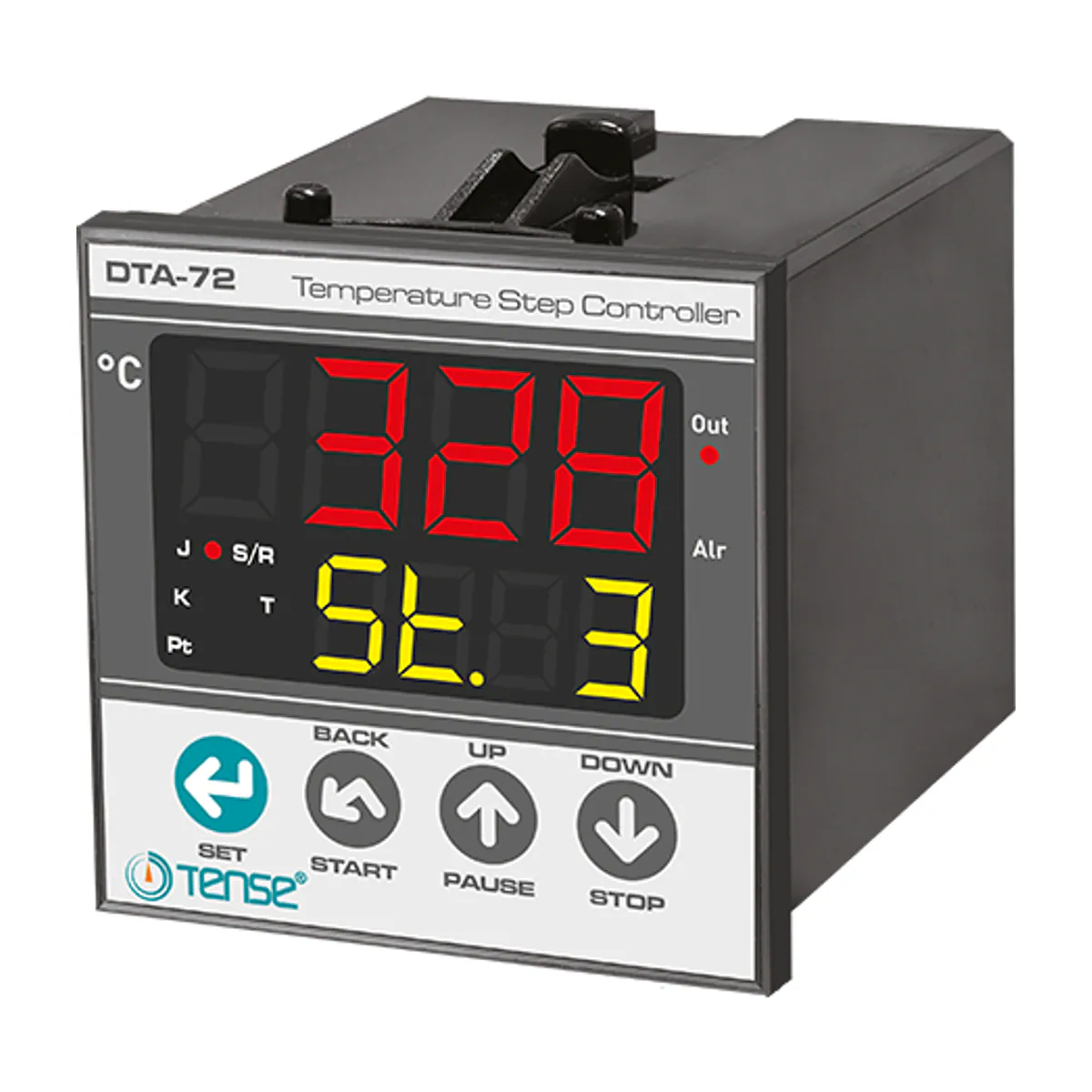

Tense DTA-72 PID Temperature Controller, 72 x 72 mm

• Brand: Tense
• SKU: DTA-72
• MPN: DTA-72
• Price: 2679.00 TRY + VAT · incl. VAT 3214.80 TRY
• Availability: In stock
• PID Thermostats
• Tense PID Thermostats
• Selection guide: PID Thermostats Selection Guide: Technical Criteria and Engineering Practice

Tense DTA-72, PID temperature controller. Dimensions / Enclosure: 72 x 72 mm; Control Type: PID (auto-tune); Built-in Timer Relay: Yes; Mounting Type: Panel mount; Inputs and Outputs: Set contact output, Alarm contact output, Optional SSR output. Digital temperature control relays are designed to keep the temperature of environments requiring temperature-dependent control at the set value. Key Features: Microprocessor-Based PID Temperature Step Controller; Automatic Calculation of PID Parameters with Auto-tune Feature; P, PI, PD, PID or ON-OFF Control Mode; “Anti-windup” Feature; Maximum 20 Steps; Maximum 18 Hours/Step Time Setting; Option to Select Relative or Absolute Alarm; Option to Monitor Setpoint, Process, Step No. and Remaining Time Values Simultaneously; Ambient Temperature Compensation for T/C; Line Compensation for Pt100; Curve Correction with Built-in °C/mV and °C/Ohm Conversion Tables; Option to Add “Offset” to Measured Value; Password-Protected; High Sensitivity and Accuracy; Program and Control Parameters Retained Permanently in Memory; Optional SSR Output; Easy Connection with Plug-in Terminal Block.
