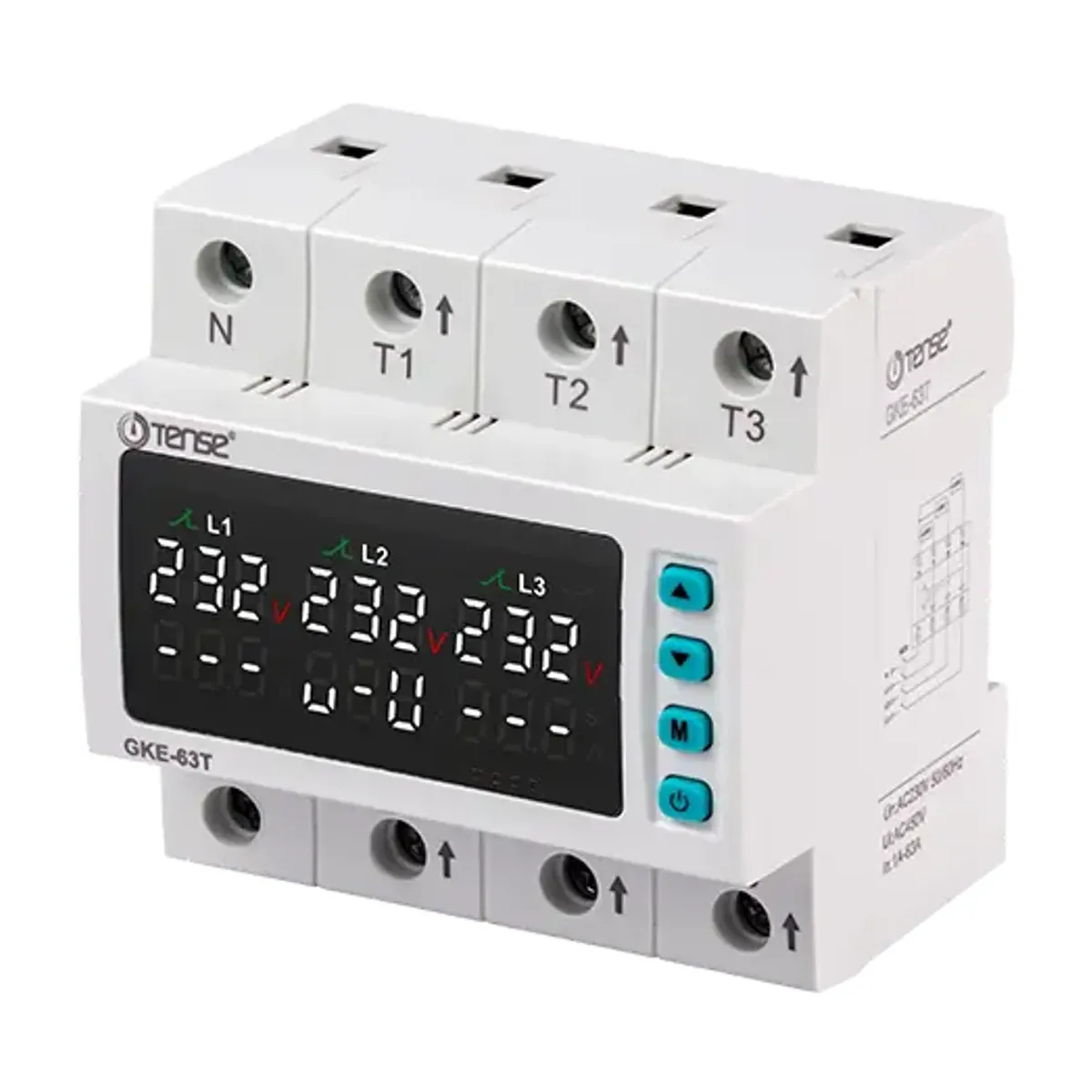

Tense GKE-63T Voltage and Current Protection Relay, 63 A

• Brand: Tense
• SKU: GKE-63T
• MPN: GKE-63T
• Price: 2270.10 TRY + VAT · incl. VAT 2724.12 TRY
• Availability: In stock
• Voltage Protection Relays
• Tense Voltage Protection Relays
• Selection guide: Voltage Protection Relays Selection Guide: Technical Criteria and Engineering Practice

Tense GKE-63T is a voltage and current protection relay. Phase Type: Three-phase; Maximum Current (direct): 63 A; Current Protection: Yes; Indicator Type: Digital; Current Protection Setting Range: 1–63 A. GKE-63T is an advanced three-phase voltage and current protection relay designed to protect your electrical devices against the harshest mains conditions. Thanks to its microcontroller-based design, it operates with high precision and provides reliable protection. The device provides effective protection against many faults such as over/undervoltage, overcurrent, voltage asymmetry, phase sequence error and overheating. With synchronous and asynchronous mode options, it provides safety both for a single circuit and for each phase individually. With an adjustable current value in the 1–63A range, a wide voltage range, automatic reset and delay settings, it adapts easily to different applications. The last fault record and internal temperature indicator give the user clear information. With its compact DIN rail-mounted structure, easy installation and long-life design, GKE-63T is an ideal solution for safely protecting your motors and devices. Key Features: Microcontroller-based: Provides high accuracy and reliability.; Comprehensive protection functions:; Overvoltage/undervoltage protection; Overcurrent (thermal) protection; Voltage asymmetry protection; Phase sequence protection; Overtemperature protection; Fast tripping on short circuit (0.04s); Disconnects the circuit on neutral loss; Synchronous mode: 3-phase single-circuit protection; Asynchronous mode: Protects each phase independently; Current: 1–63A; Undervoltage: 80–210V; Overvoltage: 220–300V; Voltage asymmetry: 20–99V; Start-up delay: 1–300s; Reset delay: 1–600s.
