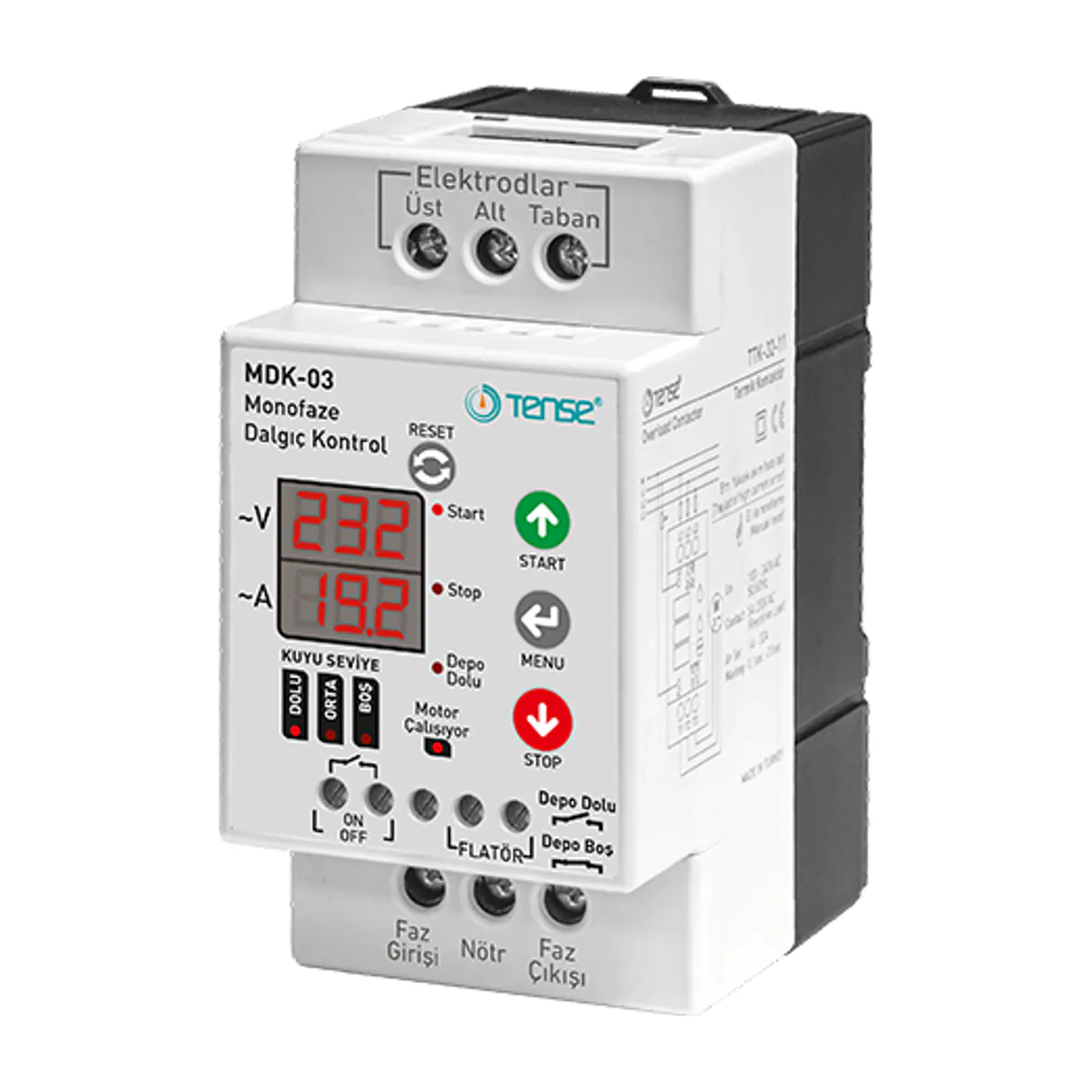

Tense MDK-03 Single-Phase Submersible Pump Control Relay, 1–30 A, DIN Box
- Brand: Tense
- SKU: MDK-03
- MPN: MDK-03
- Price: 2220.75 TRY + VAT · incl. VAT 2664.90 TRY
- Availability: In stock
- Submersible Pump Control Relays
- Selection guide: Control, Timer, and Safety Relays Selection Guide
Tense MDK-03 is a single-phase submersible pump control relay. Phase Type: Single-phase; Built-in Contactor: Yes; Current Range: 1–30 A; Operating Voltage: 150–270 VAC; Measurement Connection: Single phase (single current transformer). Designed to control submersible pumps and motors in wells and similar locations and to protect them against dry running and adverse conditions caused by high or low voltage and current. Key Features: 1A – 30A; Built-in Current Transformer; Built-in Contactor; High/Low Voltage Protection; High/Low Current Protection; Fault Wait Time; Automatic Reset Time and Count; Starting Multiplier and Time; Upper Electrode Wait Time; Can Resume from Last Operating Position (Start/Stop).
| Phase Type | 1-Phase |
|---|---|
| Dimensions / Enclosure | DIN kutu |
| Built-in Contactor | Available |
| Measurement Connection | Tek faz (tek akım trafolu) |
| Current Range | 1–30 A |
| Protection Functions | Yüksek-düşük gerilim, Yüksek-düşük akım |
| Operating Voltage | 150–270 V AC |
| Key Features | 1A – 30A; Dahili Akım Trafolu; Dahili Kontaktörlü; Yüksek/Düşük Gerilim Koruma; Yüksek/Düşük Akım Koruma; Hata Bekleme Zamanı; Otomatik Reset Zamanı ve Sayısı; Demeraj Çarpanı ve Zamanı; Üst Elektrod Bekleme Zamanı; Son Çalışma Konumundan Devam Edebilme (Start/Stop) |
