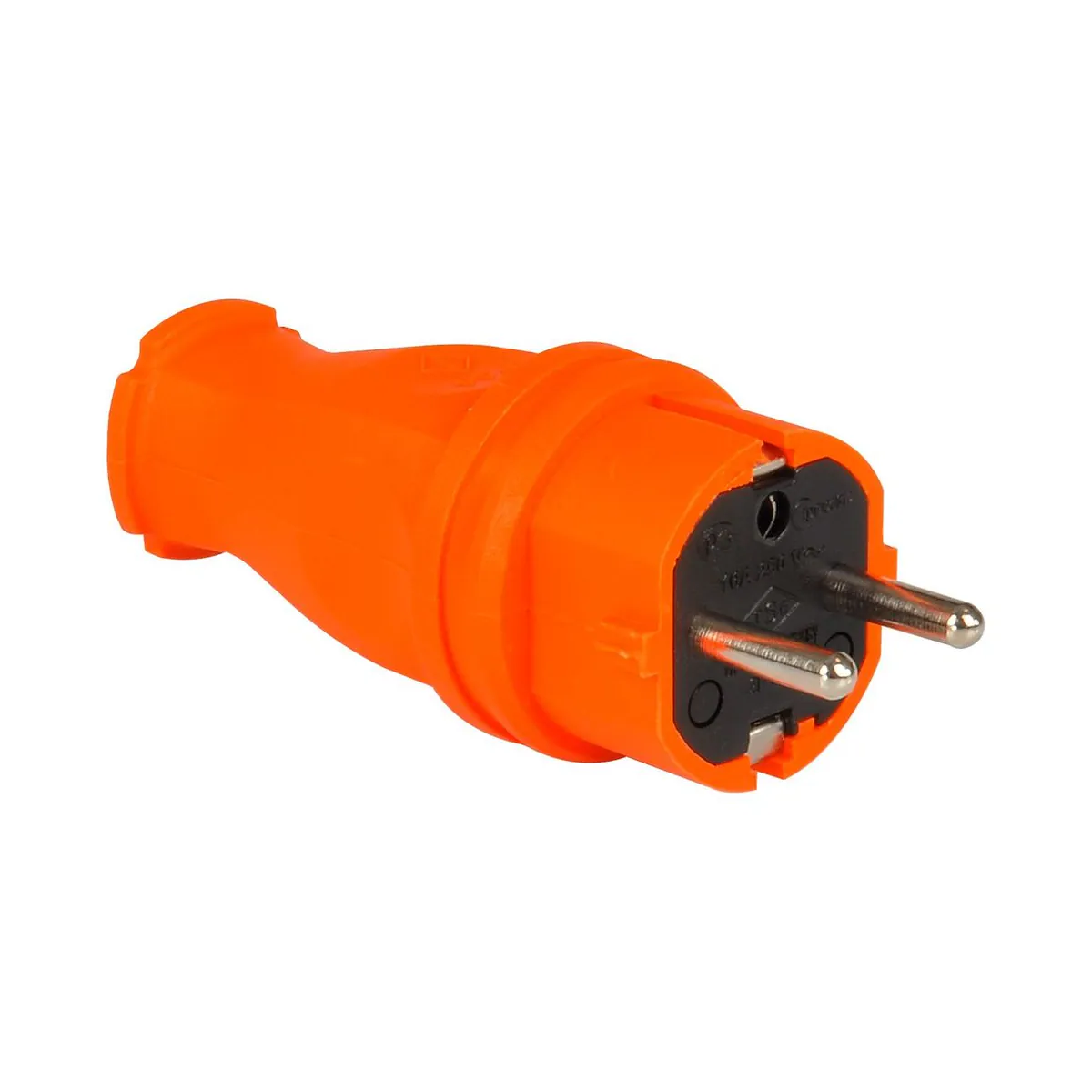

TP Elektrik 3101-303-2300 1x16A Rubber Straight Plug (French Type / UPS), IP 44, Orange
- Brand: TP Elektrik
- SKU: 3101-303-2300
- MPN: 3101-303-2300
- Price: 155.00 TRY + VAT · incl. VAT 186.00 TRY
- Availability: In stock
- Single-Phase Rubber Plugs
- TP Elektrik Single-Phase Rubber Plugs
- Selection guide: Single-Phase Rubber Plugs Selection Guide: Technical Criteria and Engineering Practice
TP Elektrik 3101-303-2300, 1x16A rubber straight plug (French type / UPS). Electrical values: 16 A rated current, 250 V AC rated voltage. Usage information: IP 44 protection rating, screw connection. Key Features: High-shock-resistance housing; Compatible with cables of different cross-sections; Easy installation; Wide connection area. Technical specifications: Protection Rating: IP 44; Connection Type: Screw Connection; Contacts-Current: 1x16A; Rated Current: 16 A; Standard: French Standard; Color: Orange; Number of Contacts: 3; Rated Voltage: 250 V AC; Contact Material: MS 58 + MS 70 (Ground); Contact Carrier: Polycarbonate; Plastic Material: Thermoplastic Elastomer; Operating Temperature: -15 / +70 (±2); Weight: 61 g.
| Poles-Ampere | 1x16A |
|---|---|
| Number of Contacts | 3 |
| Rated Current | 16 A |
| Rated Voltage | 250 V AC |
| Protection Rating | IP44 |
| Standard (Plug Type) | Fransız Normu |
| Connection Type | Screw connection |
| Color | Orange |
| Contact Material | MS 58 + MS 70 (Toprak) |
| Contact Carrier | Polikarbonat |
| Plastic Material | Termoplastik Elastomer |
| Operating Temperature | -15 / +70 (±2) |
| Gram | 61 g |
| Key Features | Darbe dayanımı yüksek gövde yapısı; Farklı kesit kablolara uyumlu; Kolay montaj imkanı; Geniş bağlantı alanı |
