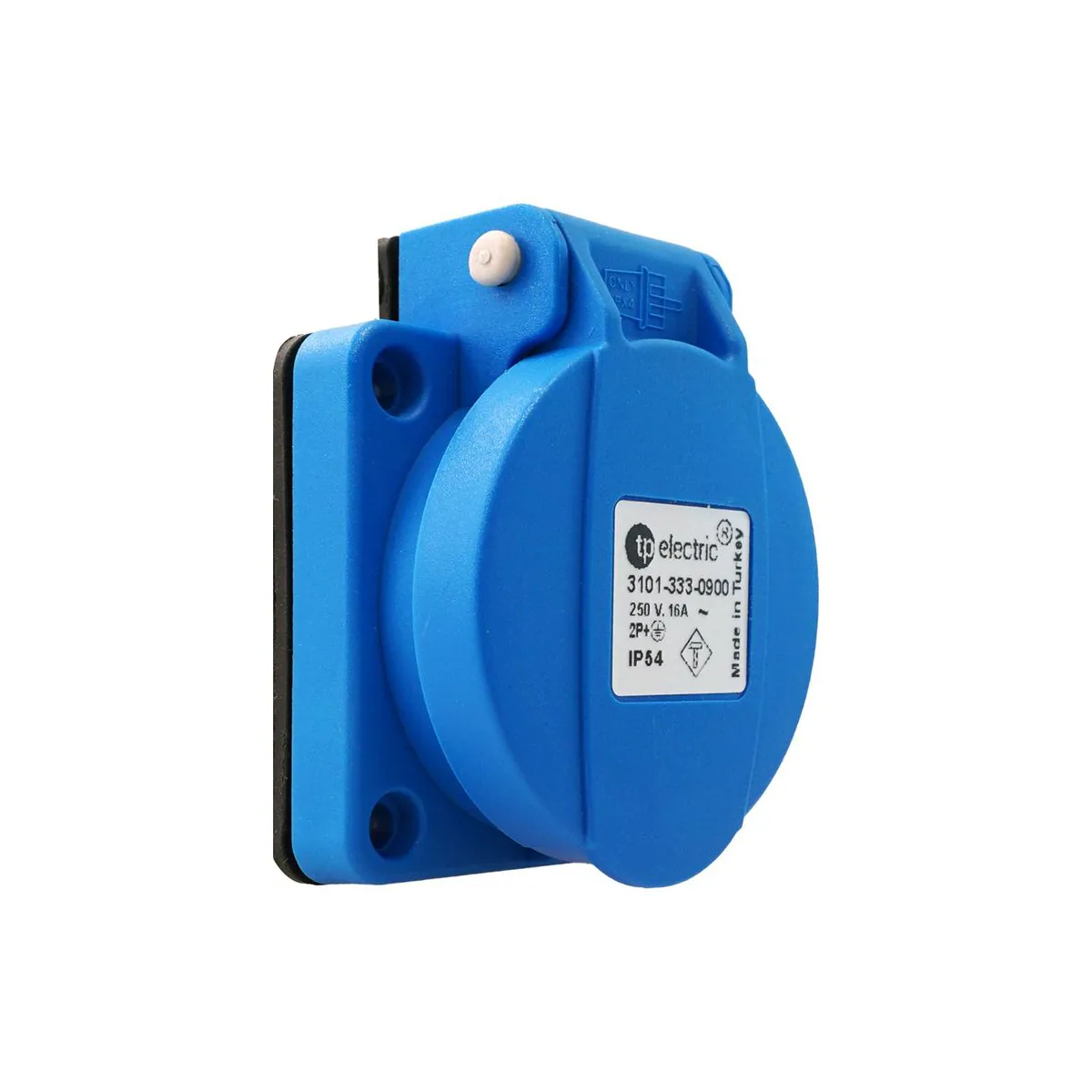

TP Elektrik 3101-333-0900 1x16A Panel Socket - Child-Safe (for Portable Applications), IP 54, Blue
- Brand: TP Elektrik
- SKU: 3101-333-0900
- MPN: 3101-333-0900
- Price: 144.00 TRY + VAT · incl. VAT 172.80 TRY
- Availability: In stock
- Panel-Mount and Machine Type Sockets
- Selection guide: Panel-Mount and Machine Type Sockets Selection Guide: Technical Criteria and Engineering Practice
TP Elektrik 3101-333-0900, 1x16A panel socket - child-safe (for portable applications). Electrical values: 16 A rated current, 200–250 V AC rated voltage, 50–60 Hz frequency. Usage information: IP 54 protection rating, screw connection. Technical specifications: Protection Rating: IP 54; Connection Type: Screw Connection; Contacts-Current: 1x16A; Rated Current: 16 A; Child Protection: Yes; Frequency: 50–60 Hz; Number of Contacts: 3; Standard: German Standard; Color: Blue; Rated Voltage: 200–250 V AC; Contact Material: MS 70; Contact Carrier: Polycarbonate; Plastic Material: Polyamide; Operating Temperature: -15 / +70 (±2); Weight: 50 g.
| Poles-Ampere | 1x16A |
|---|---|
| Number of Contacts | 3 |
| Rated Current | 16 A |
| Rated Voltage | 200–250 V AC |
| Frequency | 50/60 Hz |
| Protection Rating | IP54 |
| Standard (Plug Type) | Alman Normu |
| Connection Type | Screw connection |
| Color | Blue |
| Contact Material | MS 70 |
| Contact Carrier | Polikarbonat |
| Plastic Material | Poliamid |
| Operating Temperature | -15 / +70 (±2) |
| Child Protection | Available |
| Gram | 50 g |
