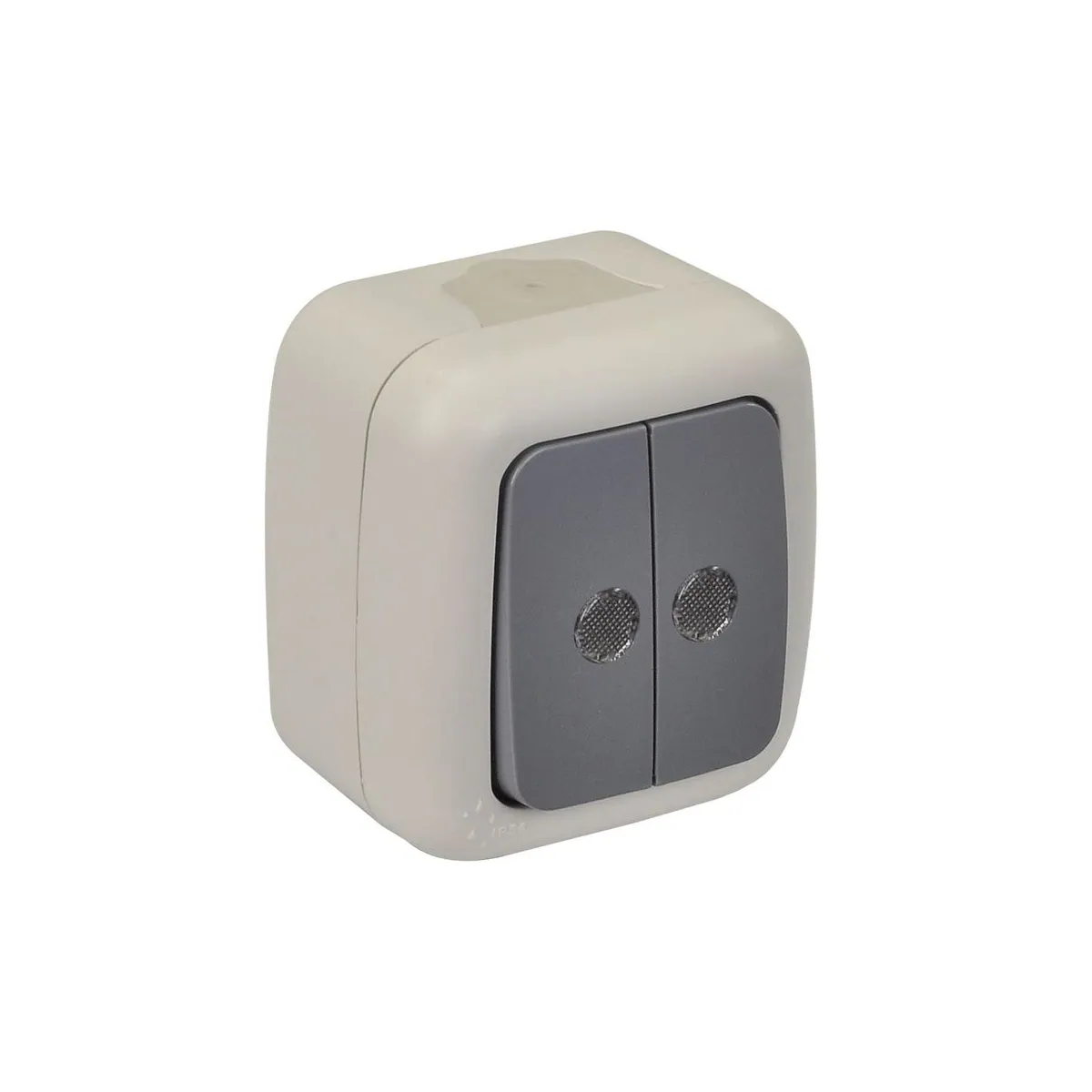

TP Elektrik 3201-021-0601 Damp Location Illuminated Changeover Switch, IP 54
- Brand: TP Elektrik
- SKU: 3201-021-0601
- MPN: 3201-021-0601
- Price: 293.00 TRY + VAT · incl. VAT 351.60 TRY
- Availability: In stock
- Wet Location Switches
- Selection guide: Wet Location Switches Selection Guide: Technical Criteria and Engineering Practice
TP Elektrik 3201-021-0601, damp-location illuminated two-circuit switch. Electrical values: 10 A rated current, 250 V AC rated voltage. Usage information: IP 54 protection rating, screw connection. Technical specifications: Protection Rating: IP 54; Product Type: Single; Weight: 100 g; Rated Current: 10 A; Rated Voltage: 250 V AC; Contact Carrier: PC; Housing Material: Polypropylene; Switch Material: ABS; Cable Gland Entry: Thermoplastic Elastomer; Connection Type: Screw connection; Operating Temperature: -15 / +70 (±2); Standards: TS IEC 60884-1; Compliance: RoHS 2011/65/EU.
| Rated Current | 10 A |
|---|---|
| Rated Voltage | 250 V AC |
| Protection Rating | IP54 |
| Connection Type | Screw connection |
| Product Type | Tekli |
| Gram | 100 g |
| Contact Carrier | PC |
| Housing Material | Polipropilen |
| Switch Material | ABS |
| Cable Gland Entry | Termoplastik Elastomer |
| Operating Temperature | -15 / +70 (±2) |
| Standards | TS IEC 60884-1 |
| Compliance | RoHS 2011/65/EU |
