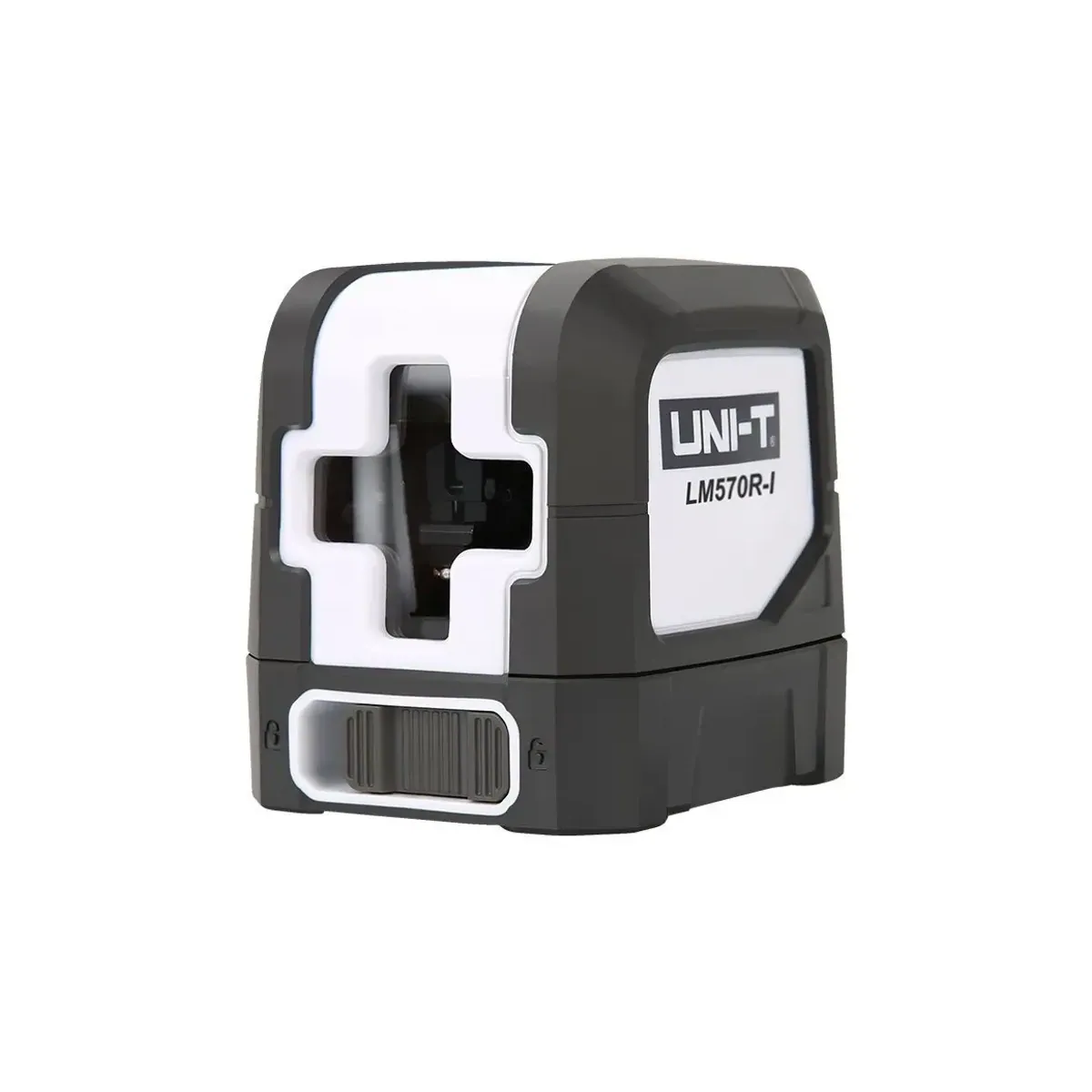

Unit LM570R-I Laser Level Meter
- Brand: Unit
- SKU: LM570R-I
- MPN: LM570R-I
- Price: 2147.04 TRY + VAT · incl. VAT 2576.45 TRY
- Availability: Made to order
- Laser Alignment Devices
- Selection guide: Laser Measuring Devices Selection Guide: Technical Criteria and Engineering Practice
Unit LM570R-I Laser Level Meter is a laser alignment device model manufactured by UNI-T. Self-leveling range 3°±1°. Laser class: Class 2. Other features: tripod mounting hole. Power source: 2 × AA battery (LR6). Box contents: carrying case, USB interface cable.
| Gram | 170 g |
|---|---|
| Additional Functions | Tripod bağlantı deliği |
| Display | Red |
| Power Source | 2 × AA pil (LR6) |
| Light Source | 10mW |
| Laser Wavelength | 635 Nm |
| Laser Power | 10 mW |
| Laser Color | Red |
| Laser Class | Class 2 |
| Self-leveling Range | 3°±1° |
| Self-leveling Time | 3 s |
| Battery Life | >12h (tüm lazerler açık) |
| Standard Accessories | Taşıma çantası, USB arayüz kablosu |
| Tripod Mount | Available |
| H/V Accuracy | ±3 mm / 10 m |
| Fan Angle | yatay 110° / dikey 110° |
| Working Distance (Line) | 15–30 m |
| Operating Time | >12 saat (tüm lazerler açık) |
| Product Dimensions | 59 mm × 28 mm × 137 mm |
