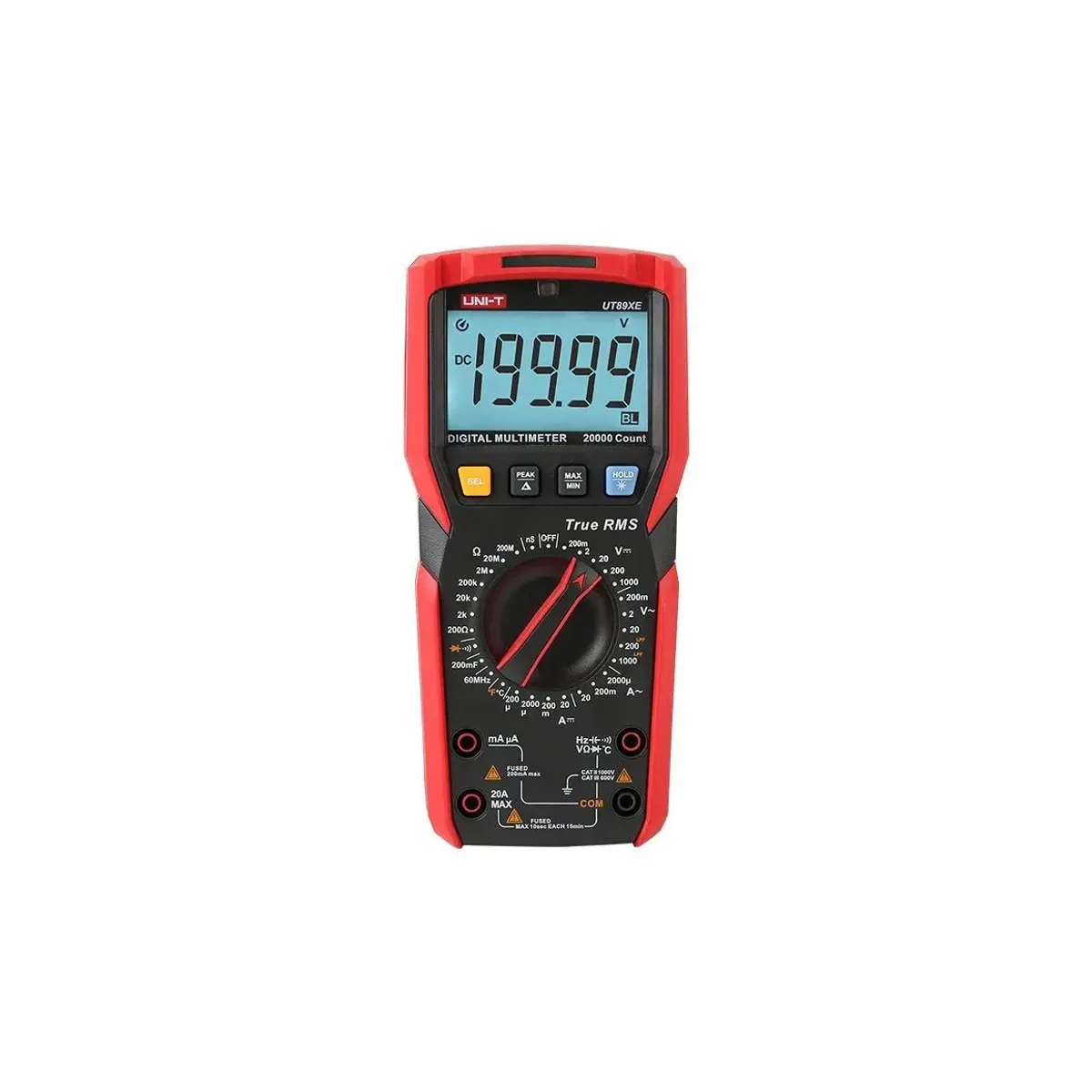

Unit UT 89XE Digital Multimeter
- Brand: Unit
- SKU: UT89XE
- MPN: UT89XE
- Price: 2923.63 TRY + VAT · incl. VAT 3508.36 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT 89XE Digital Multimeter, a digital multimeter model from the UNI-T UT89X series. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (20 A), AC current (20 A), resistance (200 MΩ), capacitance (200 mF), frequency (60 MHz), temperature (−40 °C – 1000 °C), conductivity (200nS). Other features: audible and visual alarm (V / A / capacitance / diode), MAX/MIN, peak hold, low-pass filter (LPF). Power source: 4 × 1.5 V battery (R03). Box contents: batteries, test probes, K-type temperature probe, English user manual.
| AC Current Measurement | 2000 µA / 200 mA / 20 A · ±(%1,5+15) |
|---|---|
| AC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · ±(%0,8+25) |
| Low-Pass Filter | Available |
| Gram | 345 g |
| DC Current Measurement | 2000 µA / 200 mA / 20 A · ±(%0,5+4) |
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · ±(%0,05+5) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ · ±(%0,4+5) |
| Additional Functions | Sesli ve ışıklı alarm (V / A / kapasitans / diyot), MAX/MIN, tepe değer tutma, düşük geçiren filtre (LPF) |
| Display Size | 61 mm × 36 mm |
| Frequency Measurement | 60 MHz · ±(%0,1+3) |
| Power Source | 4 × 1,5 V pil (R03) |
| Capacitance Measurement | 200 mF · ±(%4+50) |
| MIN/MAX | Available |
| Audible and Visual Alarm | V/A/Kapasitans/Diyot |
| Standard Accessories | Piller, test probları, K tipi sıcaklık probu, İngilizce kullanım kılavuzu |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+10) |
| Peak Hold | Available |
| Product Dimensions | 189 mm × 89 mm × 53 mm |
| Conductance Measurement | 200nS · ±(%1,2+50) |
