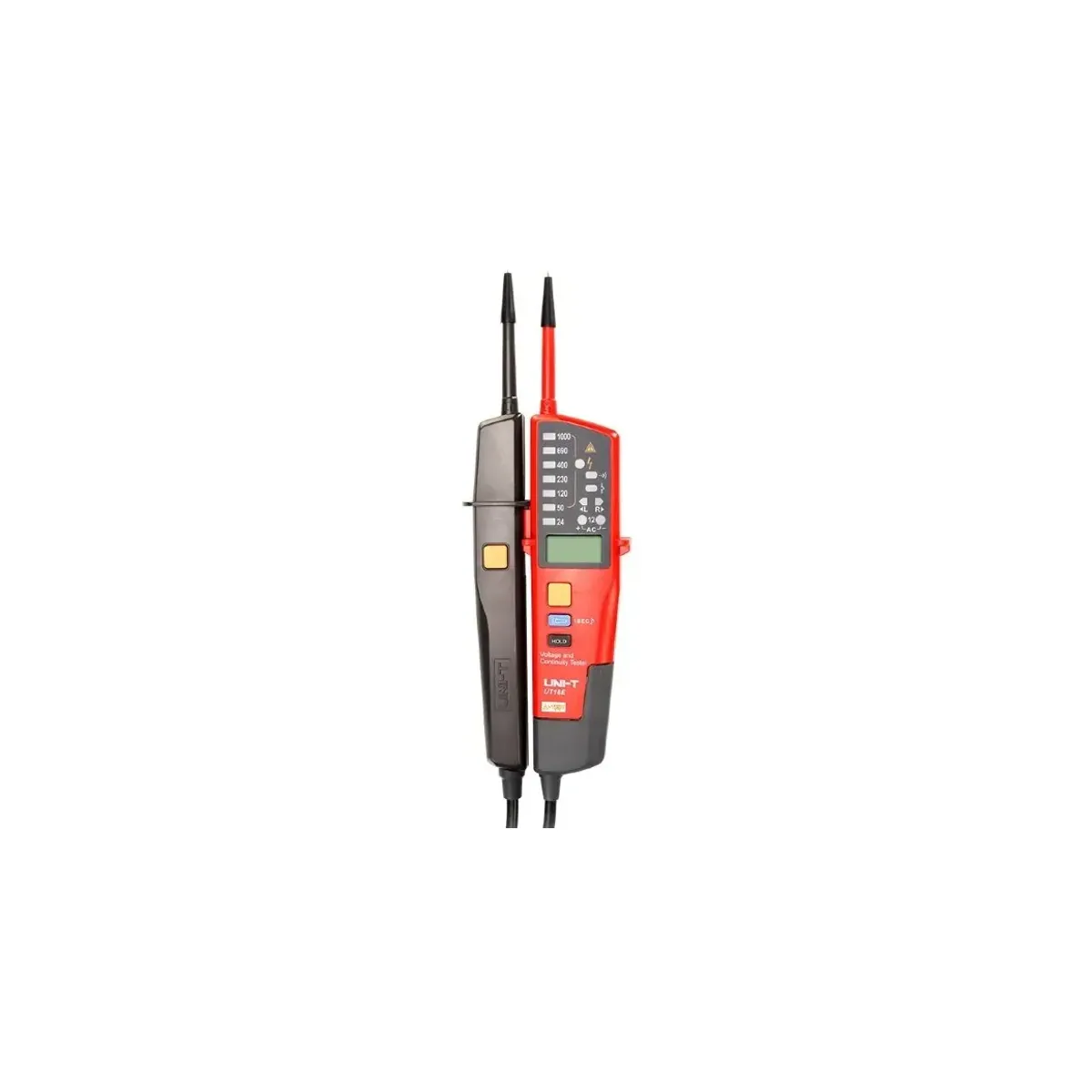

Unit UT18E Voltage and Continuity Tester
- Brand: Unit
- SKU: UT18E
- MPN: UT18E
- Price: 2672.38 TRY + VAT · incl. VAT 3206.86 TRY
- Availability: In stock
- Voltage and Continuity Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT18E Voltage and Continuity Tester. Phase Sequence Test: 100Vac~400Vac (3 phase); Frequency: 50Hz~60Hz. Continuity Test: Resistance: 0Ω~60kΩ; Audible and LED indicator. RCD Test: Operating voltage: 230V (50Hz~400Hz). Polarity Detection: Positive and negative. Self-Test: All LED or LCD indicators. Batteryless Test: Operating voltage: 100~1000V. Voltage Indicator: LED and LCD. Range Selection: All ranges. Overvoltage Protection: 1100V. Automatic Standby: Standby akımı<10μA. Other features: Silent Mode: All ranges; Backlight: All ranges; Low Battery Indication: Approx. 2.4V; LCD Voltage Display: 6V~1000V; LCD Frequency Display: 40Hz~400Hz (accuracy: ±(3%+5)); Safety Category: CAT III 1000V; CAT IV 600V; Weight: 277g; Product Dimensions: 272 x 85 x 31 mm.
| Backlight | Tüm kademeler |
|---|---|
| Gram | 277 g |
| Overvoltage Protection | 1100 V |
| Low Battery Indication | Yaklaşık 2.4V |
| Phase Sequence Test | 100Vac~400Vac (3 faz); Frekans: 50Hz~60Hz |
| Voltage Indicator | LED ve LCD |
| Voltage Measurement | 6V (doğruluk: ±(1.5%+1)); 12V (doğruluk: ±(1.5%+2)); 24V (doğruluk: ±(1.5%+2)); 50V (doğruluk: ±(1.5%+3)); 120V (doğruluk: ±(1.5%+4)); 230V (doğruluk: ±(1.5%+5)); 400V (doğruluk: ±(1.5%+5)); 690V (doğruluk: ±(1.5%+5)); 1000V (doğruluk: ±(1.5%+5)) |
| Safety Category | CAT III 1000V; CAT IV 600V |
| Range Selection | Tüm kademeler |
| Self-Test | Tüm LED veya LCD göstergeler |
| LCD Frequency Display | 40Hz~400Hz (doğruluk: ±(3%+5)) |
| LCD Voltage Display | 6V~1000V |
| Automatic Standby | Bekleme akımı<10μA |
| Batteryless Test | Çalışma gerilimi: 100~1000V |
| Polarity Detection | Pozitif ve negatif |
| RCD Test | Çalışma gerilimi: 230V (50Hz~400Hz) |
| Silent Mode | Tüm kademeler |
| Continuity Test | Direnç: 0Ω~60kΩ; Sesli ve LED ışıklı gösterge |
| Product Dimensions | 272 x 85 x 31 mm |
