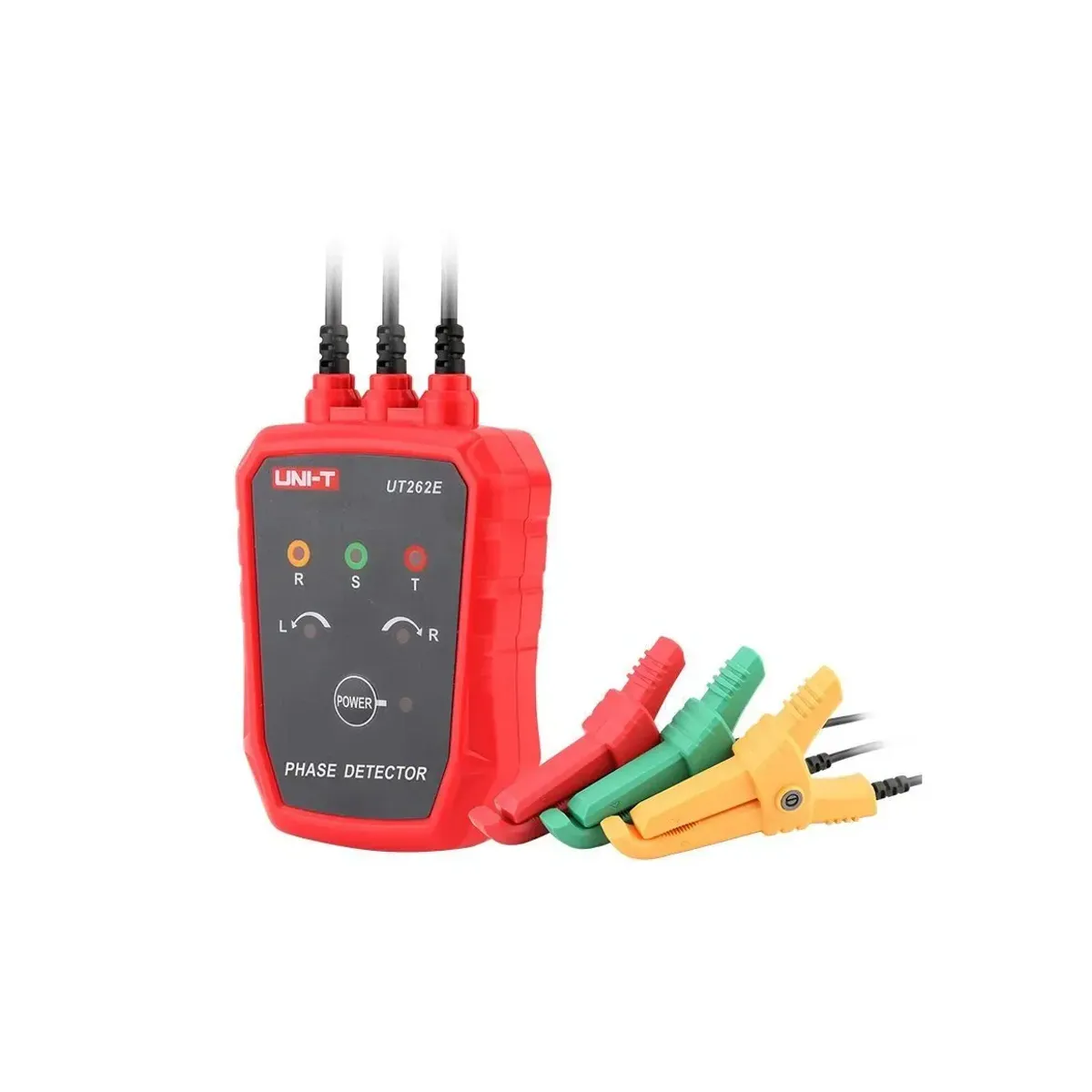

Unit UT262E Non-Contact Phase Detector
- Brand: Unit
- SKU: UT262E
- MPN: UT262E
- Price: 4385.44 TRY + VAT · incl. VAT 5262.53 TRY
- Availability: In stock
- Phase Sequence Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT262E Non-Contact Phase Detector. Storage Temperature: 4 – 140 °F (−20 – 60 °C). Buzzer Level: 65 – 70 dB. Operating Temperature: 32 – 122 °F (0 – 50 °C). Measuring Voltage Range: three-phase, 70–1000 V AC (45–66 Hz). Key Life: 10000 cycles. Certifications: CE, UKCA. Applications: phase detection, phase line check, energy check, phase loss detection, break point location. Auto Power Off: switches off approximately 5 min after being turned on, giving an audible warning twice. Conductor Position: the conductor is placed between the “▲” and “▼” marks on the jaw. Power Consumption: < 10 µA (3 V) when off. Other features: Insulation Strength: 3.7 kVrms; Measuring Method: non-contact clamp measurement; Operating Frequency: 50 / 60 Hz (±10%); Low Battery Indication: <2.4 V; <2 V; Power Source: 2 × 1.5 V AA alkaline battery; IP Rating: IP52; Operating Altitude: < 2000 m.
| Applications | faz tespiti, faz hattı kontrolü, enerji kontrolü, faz kaybı tespiti, kopukluk noktası bulma |
|---|---|
| Measuring Method | temassız pens ölçümü |
| Conductor Position | iletken, pens üzerindeki “▲” ve “▼” işaretleri arasına yerleştirilir |
| Measuring Voltage Range | üç faz, 70–1000 V AC (45–66 Hz) |
| Operating Frequency | 50 / 60 Hz (±%10) |
| Key Life | 10000 cycles |
| Insulation Strength | 3,7 kVrms |
| Buzzer Level | 65 – 70 dB |
| Low Battery Indication | <2,4 V; <2 V |
| Auto Power Off | açıldıktan yaklaşık 5 min sonra kapanır, iki kez sesli uyarı verir |
| Certifications | CE, UKCA |
| IP Rating | IP52 |
| Operating Temperature | 32 – 122 °F (0 – 50 °C) |
| Operating Altitude | < 2000 m |
| Storage Temperature | 4 – 140 °F (−20 – 60 °C) |
| Power Consumption | kapalıyken < 10 µA (3 V) |
| Power Source | 2 × 1,5 V AA alkalin pil |
