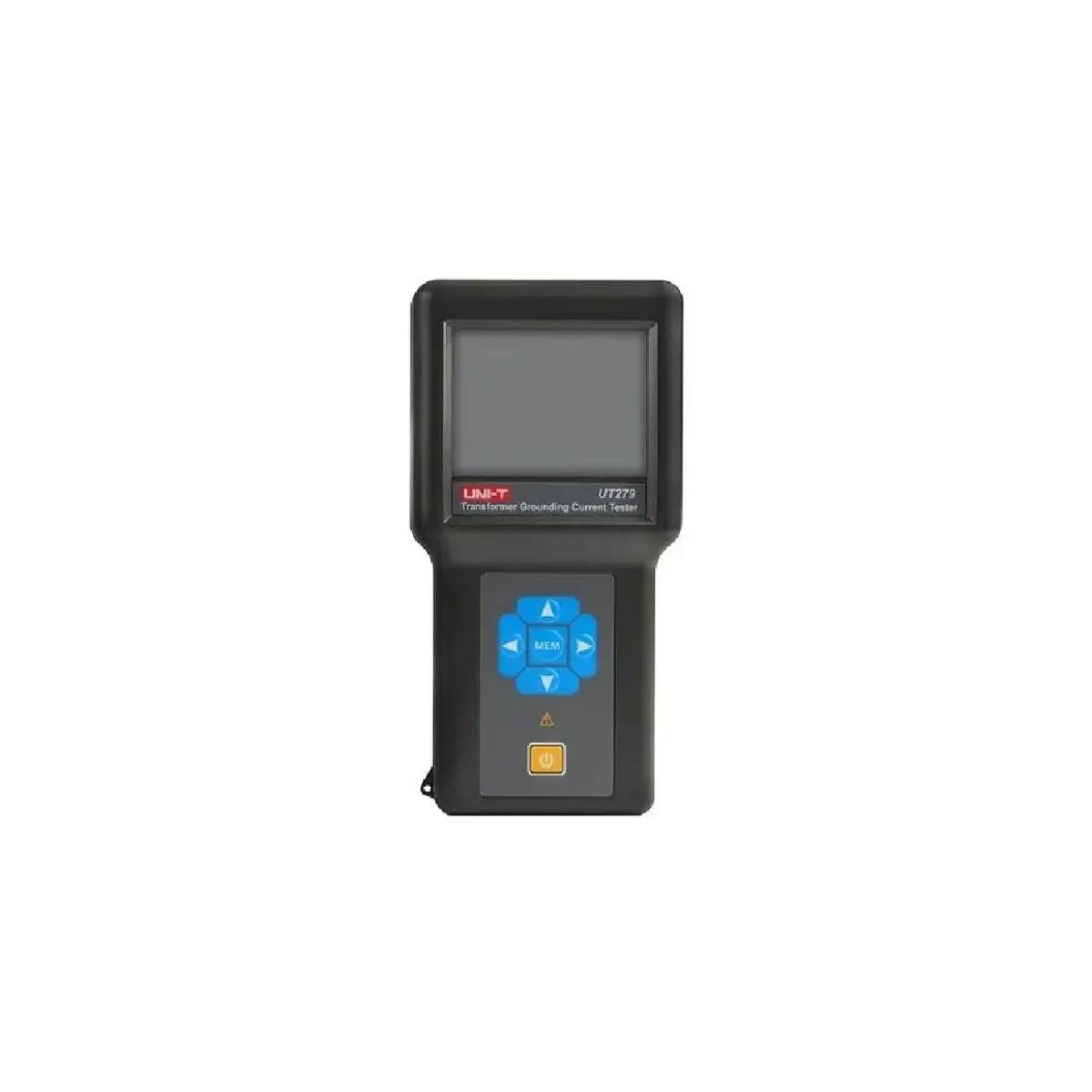

Unit UT279 Transformer Earthing Current Tester
- Brand: Unit
- SKU: UT279
- MPN: UT279
- Price: 25124.92 TRY + VAT · incl. VAT 30149.90 TRY
- Availability: In stock
- Earthing Measuring Instruments
- Selection guide: Earthing Measuring Instruments Selection Guide: Technical Criteria & Application Standards
Unit UT279 Transformer Earthing Current Tester. AC Current Measurement: (ACA)0.00mA~100A (accuracy: ±(0.5%+5dgt)). AC Voltage Measurement: AC 0~600V (accuracy: ±(0.5%+5dgt)). Cable Length: Current clamp cable length: 2m. Display: 3.5 inch color touch LCD (320 ×240); Size: 71 x 53mm. Frequency Measurement: 10HZ~1000HZ (accuracy: ±2Hz). Test Method: Clamp meter with current transformer. Sampling Rate: 1 measurements per second. Memory: 200 records. Auto Power Off: Yes. USB Communication: Data transfer via USB cable. Other features: Alarm: 10mA~99.99A; Audible and visual alarm; Line Voltage: <AC 600V; Overload Indication: “OL” symbol; Low Battery Indication: Yes; Operating Environment: -10°C~40°C; below 80%rh; Storage Environment: -10°C~60°C; below 70%rh; Insulation Strength: AC 2kV/rms (between screw and housing); Pollution Degree: 2.
| AC Current Measurement | (ACA)0.00mA~100A (doğruluk: ±(0.5%+5dgt)) |
|---|---|
| AC Voltage Measurement | AC 0~600V (doğruluk: ±(0.5%+5dgt)) |
| Alarm | 10mA~99.99A; Sesli ve ışıklı alarm |
| Gram | Host: 450g (pil dahil); Akım pensi: 780g |
| Overload Indication | “OL” simgesi |
| Storage Environment | -10°C~60°C; altında 70%rh |
| Low Battery Indication | Available |
| Display | 3.5 inç renkli dokunmatik LCD (320 ×240); Boyut: 71 x 53mm |
| Frequency Measurement | 10HZ~1000HZ (doğruluk: ±2Hz) |
| Power Source | DC 9V alkalin dry pil LR6 1.5V×6 |
| Memory | 200 kayıt |
| Line Voltage | <AC 600V |
| Cable Length | Akım pensi kablo uzunluğu: 2m |
| Pollution Degree | 2 |
| Auto Power Off | Available |
| Test Method | Akım trafolu pens |
| USB Communication | USB kablosu ile veri aktarımı |
| Insulation Strength | AC 2kV/rms (vida ile gövde arasında) |
| Operating Environment | -10°C~40°C; altında 80%RH |
| Sampling Rate | Saniyede 1 ölçüm |
| Product Dimensions | Ana cihaz boyutu: 198 × 100 × 45mm; Akım pensi boyutu: 194 × 145 × 40mm |
