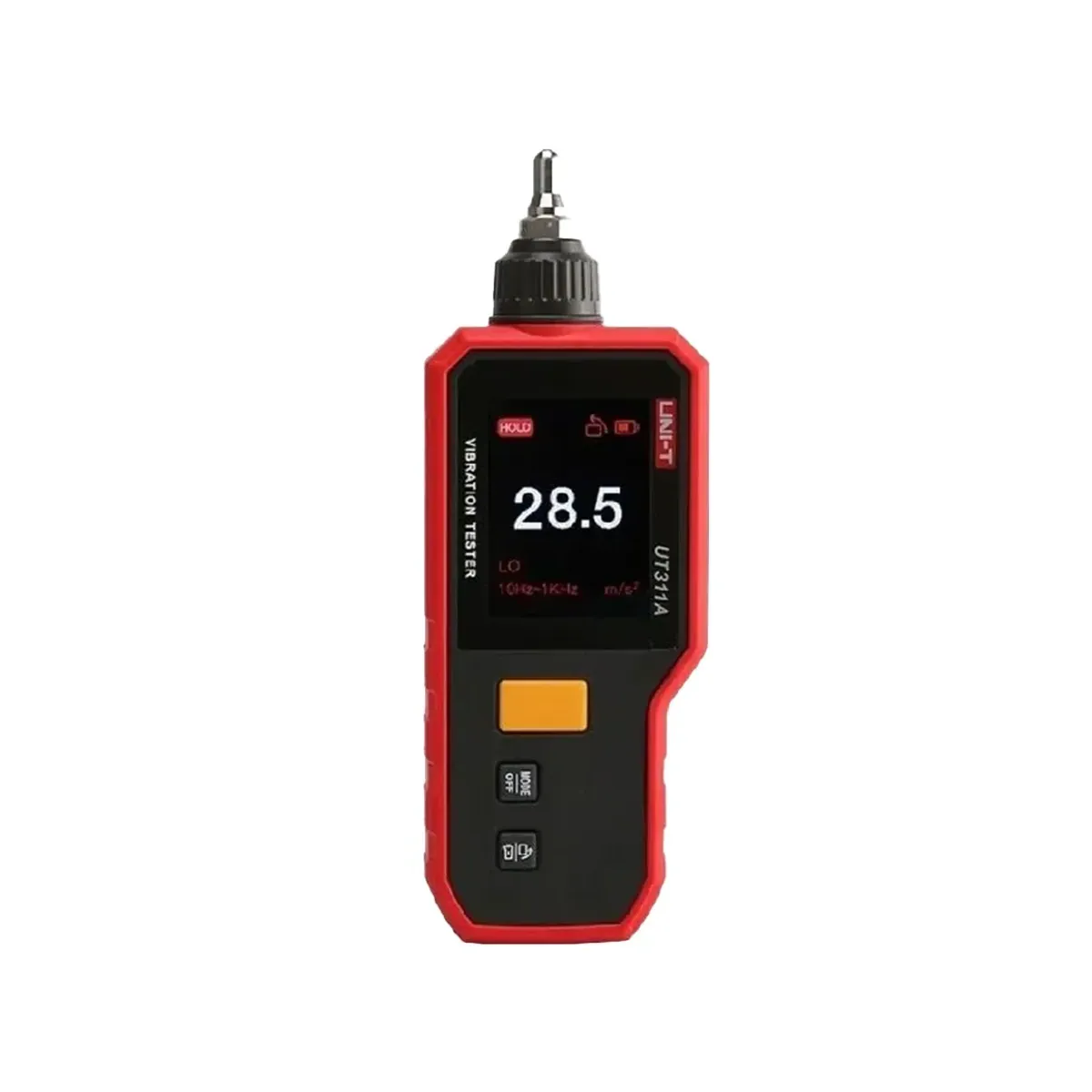

Unit UT311A Vibration Tester

Unit UT311A Vibration Tester

Unit UT311A Vibration Tester. Acceleration (O-P): 0.1–199.9 m/s²; resolution 0.1 m/s²; accuracy ±(5%+2 digits). Display: 2.4 inch color TFT; auto-rotation. Acceleration Frequency Range: Low: 10 Hz–1 kHz; high: 1–15 kHz. Velocity (RMS): 0.1–199.9 mm/s; 10 Hz–1.5 kHz; resolution 0.1 mm/s; accuracy ±(5%+2 digits). Displacement (P-P): 0.001–1.999 mm; 10 Hz–1 kHz; resolution 0.001 mm; accuracy ±(10%+2 digits). Power Source: 1350 mAh / 3.7 V lithium battery. Charging Interface: Type-C. Charging Voltage: DC 5 V. Charging Time: Approximately 3 hours. Battery Life: Approximately 12 hours. Other features: Auto Power Off: 5 minutes if no operation; Data Hold: Yes; Flashlight: Yes; Backlight: Yes; Operating Environment: 0°C – 40°C; ≤80% RH, non-condensing; Storage Temperature: -20°C – 60°C; Product Dimensions: 180 × 28 × 64 mm (including short probe); Weight: Approx. 191 g (including short probe).

BacklightAvailable
GramYaklaşık 191 g (kısa prob dahil)
Storage Temperature−20 °C – 60 °C
Display2.4 inç renkli TFT; otomatik döndürme
FlashlightAvailable
Power Source1350 mAh / 3.7 V lityum pil
Velocity (RMS)0.1–199.9 mm/s; 10 Hz–1.5 kHz; çözünürlük 0.1 mm/s; doğruluk ±(%5+2 basamak)
Auto Power Offİşlem yapılmazsa 5 dakika
Battery LifeYaklaşık 12 saat
Data HoldAvailable
Displacement (P-P)0.001–1.999 mm; 10 Hz–1 kHz; çözünürlük 0.001 mm; doğruluk ±(%10+2 basamak)
Operating Environment0°C – 40°C; ≤%80 RH, yoğuşmasız
Product Dimensions180 × 28 × 64 mm (kısa prob dahil)
Acceleration (O-P)0.1–199.9 m/s²; çözünürlük 0.1 m/s²; doğruluk ±(%5+2 basamak)
Acceleration Frequency RangeDüşük: 10 Hz–1 kHz; yüksek: 1–15 kHz
Charging InterfaceType-C
Charging VoltageDC 5 V
Charging TimeYaklaşık 3 saat
