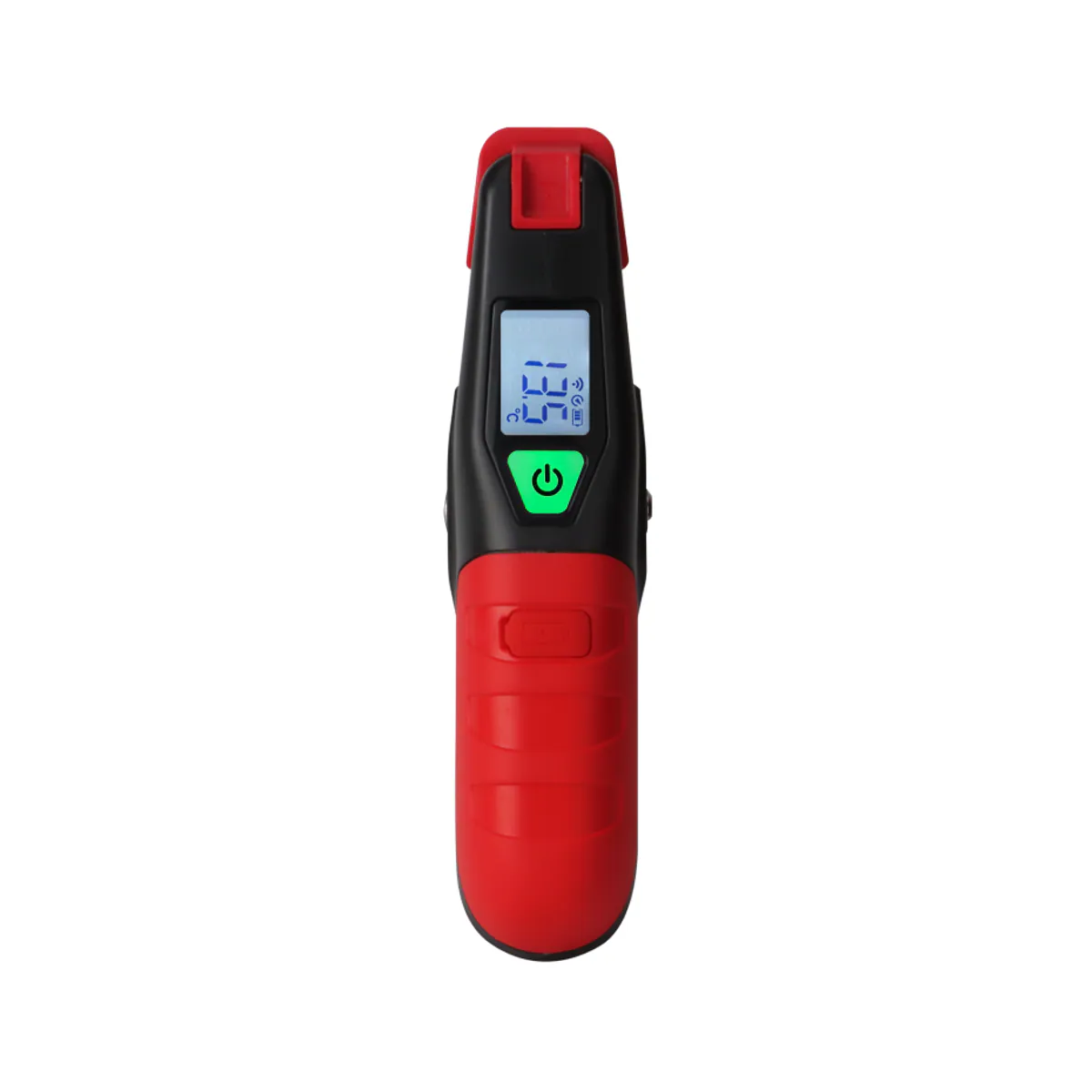

Unit UT320i -50–150 °C IP65 Wireless Pipe Temperature Clamp
- Brand: Unit
- SKU: UT320i
- MPN: UT320i
- Price: 3654.53 TRY + VAT · incl. VAT 4385.44 TRY
- Availability: Made to order
- Digital Thermometers
- Selection guide: Temperature and Heat Control Instruments Selection Guide: Technical Criteria and Engineering Practice
Unit UT320i is a wireless temperature clamp by UNI-T designed for quick and accurate temperature measurement of pipe surfaces; its clamp-type probe fits pipes from 6 to 42 mm in diameter. The measuring range is -50 to 150 °C with a resolution of 0.5 °C; the accuracy is ±0.5 °C from -50 to 80 °C and ±1 °C from 80 to 150 °C. It stores 10,000 records, has a wireless range of 100 m in open space, and the mobile app can connect to up to 6 UT320i units at the same time. It offers IP65 protection, 2 m drop resistance, a high-temperature-resistant jaw, an LED indicator and a built-in 3.7 V 1400 mAh rechargeable lithium battery (180 hours of operation); it is charged via USB-C and can be used together with the UT336E digital manifold gauge. The clamp-type probe is well suited to HVAC system inspection, troubleshooting and maintenance.
| Gram | Yaklaşık 156 g |
|---|---|
| Storage Temperature | -20–60 °C |
| Drop Resistance | 2 m |
| Display | Düşük güç tüketimli LCD |
| Power Source | Dahili şarj edilebilir lityum pil 3.7 V 1400 mAh |
| IP Rating | IP65 |
| Auto Power Off | Var (5 min işlem yapılmazsa; kablosuz bağlantı sürerken kapanmaz; kapatılabilir) |
| Operating Humidity | <85% RH |
| Operating Temperature | -20–50 °C |
| Product Dimensions | 156 mm × 79 mm × 40 mm |
| Temperature Range | -50–150 °C |
| Temperature Resolution | 0.5 °C |
| Temperature Accuracy | ±0.5 °C (-50–80 °C); ±1 °C (80–150 °C) |
| Measurement Units | °C, °F; seçilen birim hafızada saklanır |
| Overload Indication | 151.0 °C üzerinde OL; -50.5 °C altında -OL |
| Tube Diameter | 6–42 mm |
| Memory | 10,000 kayıt |
| Range | 100 m |
| Mobile App | Var (aynı anda en fazla 6 adet UT320i bağlanır; gerçek zamanlı ölçüm, PDF/CSV rapor dışa aktarma) |
| Firmware update | Var (OTA) |
| Battery Status Indicator | Available |
| LED Indication | Available |
| Languages | EN, FR, DE, IT, ES, SV, PL, CZ |
| Battery Life | 180 saat (açık ve kablosuz iletim açık); 120 saat (açık, kablosuz iletim ve arka ışık açık) |
| Certifications | CE, RoHS |
| Standard Accessories | Kablosuz sıcaklık kelepçesi, kullanım kılavuzu, USB-C şarj kablosu, güvenlik kılavuzu, genel dosya indirme kılavuzu |
| Compatible Models | UT336E dijital manifold manometre (kablosuz senkronizasyon; yüksek/alçak basınç hattı sıcaklığı) |
