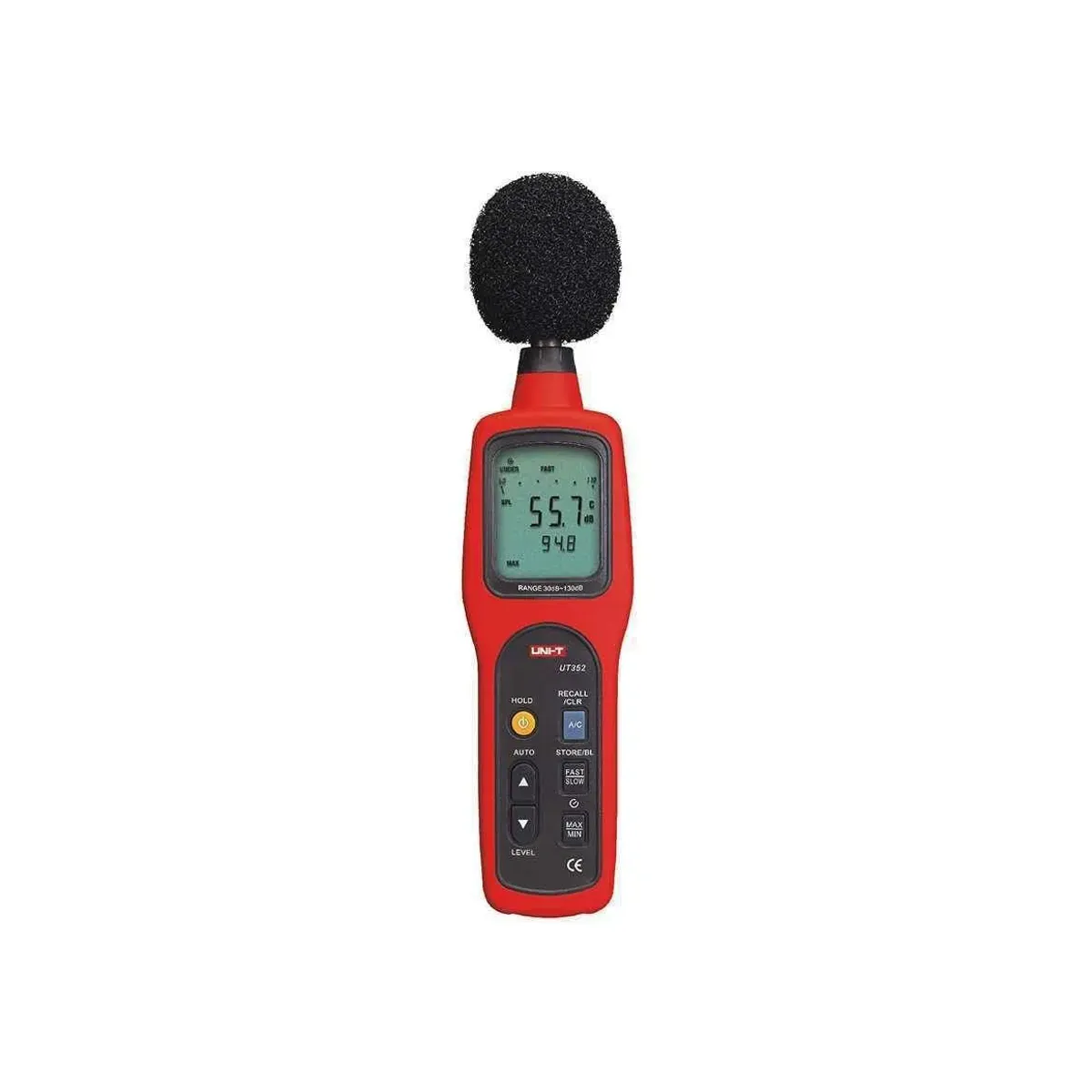

Unit UT352 Sound Level Meter Decibel Meter
- Brand: Unit
- SKU: UT352
- MPN: UT352
- Price: 6623.84 TRY + VAT · incl. VAT 7948.61 TRY
- Availability: Made to order
- Sound Level Meters
- Selection guide: Environmental Measuring Instruments Selection Guide: Technical Criteria and Engineering Practice
Unit UT352 Sound Level Meter Decibel Meter, a sound level meter model manufactured by UNI-T. Measurement functions: frequency (31.5 Hz – 8000 Hz), sound level (30 – 130 dB). Other features: data hold, auto power off, low battery indicator (≤4.8 V), MAX, MIN, upper limit alarm, lower limit alarm, backlight, analog bar graph (30 – 130 dB). Power source: 4 × 1.5 V battery (LR6). Box contents: batteries, windscreen foam, leather case.
| Analog Bar Graph | 30~130dB |
|---|---|
| Analog Output | DC: tam skala 2 Vrms, 10 mV/dB, çıkış empedansı yaklaşık 100 Ω |
| Backlight | Available |
| Gram | 330 g |
| Low Battery Indication | ≤4.8V |
| Additional Functions | Veri tutma, otomatik kapanma, düşük pil göstergesi (≤4,8 V), MAX, MIN, üst limit alarmı, alt limit alarmı, arka ışık, analog çubuk gösterge (30 – 130 dB) |
| Display Size | 53 mm × 41 mm |
| Frequency Weighting | A ve C |
| Frequency Measurement | 31,5 Hz – 8000 Hz |
| Power Source | 4 × 1,5 V pil (LR6) |
| MAX Mode | Available |
| MIN Mode | Available |
| Auto Power Off | Available |
| Sound Level Measurement | 30 – 80 dB · ±1,5 dB; 50 – 100 dB · ±1,5 dB; 60 – 110 dB · ±1,5 dB; 80 – 130 dB · ±1,5 dB |
| Standard Accessories | Piller, rüzgâr köpüğü, deri kutu |
| Data Logging | 63 kayıt |
| Data Hold | Available |
| Measuring Range | 30~80dB (doğruluk: ±1.5dB); 50~100dB (doğruluk: ±1.5dB); 60~110dB (doğruluk: ±1.5dB); 80~130dB (doğruluk: ±1.5dB) |
| Measurement Rate | hızlı: 8 kez/s; yavaş: 1 kez/s |
| Sampling Rate | HIZLI: 8 ölçüm/s; YAVAŞ: 1 ölçüm/s |
| Product Dimensions | 273 mm × 70 mm × 39 mm |
