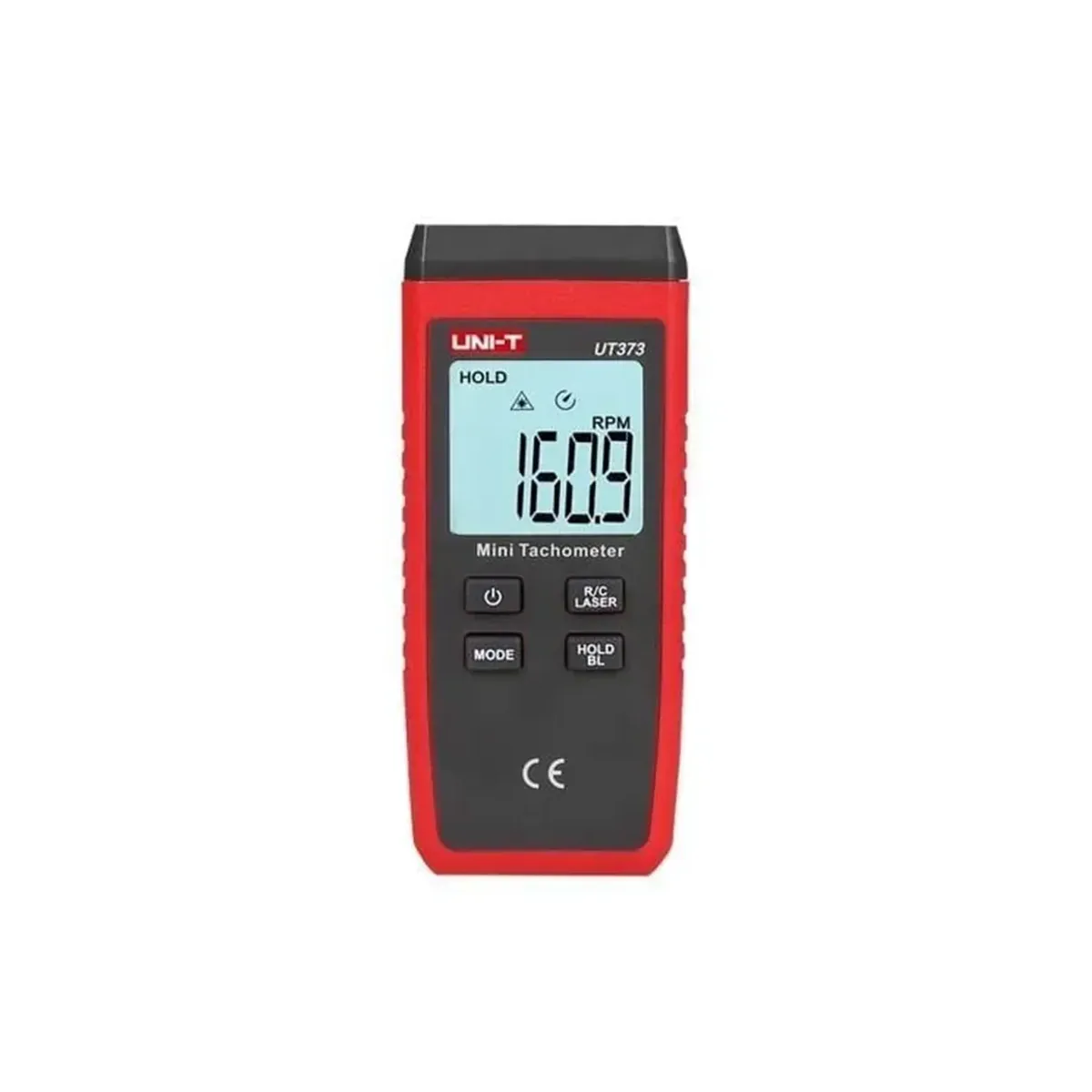

Unit UT373 Mini Optical Tachometer
- Brand: Unit
- SKU: UT373
- MPN: UT373
- Price: 1096.36 TRY + VAT · incl. VAT 1315.63 TRY
- Availability: In stock
- Tachometer Instruments
- Selection guide: Process Control Instruments Selection Guide: Technical Criteria and Engineering Practice
Unit UT373 Mini Optical Tachometer is a tachometer model manufactured by UNI-T. Measurement functions: speed (RPM) (10.0 – 99999 rpm), counting (0 – 99999 counts (resolution 1)). Other features: auto power off, low battery indicator, laser-on indicator, data hold, MAX/MIN, RPM/count function switching, overload indicator, backlight. Power source: 3 × 1.5 V battery (R03). Box contents: batteries, reflective tape.
| Backlight | Available |
|---|---|
| Gram | 85 g (pil hariç) |
| Overload Indication | Available |
| RPM Measurement | 10,0 – 9999,9 rpm (çözünürlük 0,1) · ±(%0,04+2); 10000 – 99999 rpm (çözünürlük 1) · ±(%0,04+2) |
| Speed Measurement | 10.0~9999.9RPM; 0.1 (doğruluk: ±(0.04%+2)); 10000~99999RPM; 1 (doğruluk: ±(0.04%+2)) |
| Drop Resistance | 1 m |
| Low Battery Indication | Available |
| Additional Functions | Otomatik kapanma, düşük pil göstergesi, lazer açık göstergesi, veri tutma, MAX/MIN, devir/sayma fonksiyonu geçişi, aşırı load göstergesi, arka ışık |
| Display Size | 5 haneli segment ekran, en fazla 99999 |
| Refresh Rate | 1–7 s (120 rpm üzerinde 1 s) |
| Power Source | 3 × 1,5 V pil (R03) |
| Target Distance | 50mm~200mm |
| Range Selection | Otomatik |
| Laser Indication | Available |
| MIN/MAX | Available |
| Auto Power Off | Available |
| Counting | 0 – 99999 sayım (çözünürlük 1) · ±1 |
| Sensor | fotodiyot ve lazer tüpü |
| Standard Accessories | Piller, yansıtıcı bant |
| Data Hold | Available |
| Refresh Rate | 1s – 7s (1s için >120rpm) |
| Measuring Angle | dikeyden ±30° |
| Measuring Distance | 50 mm – 200 mm |
| Product Dimensions | 183,8 mm × 56 mm × 34 mm |
