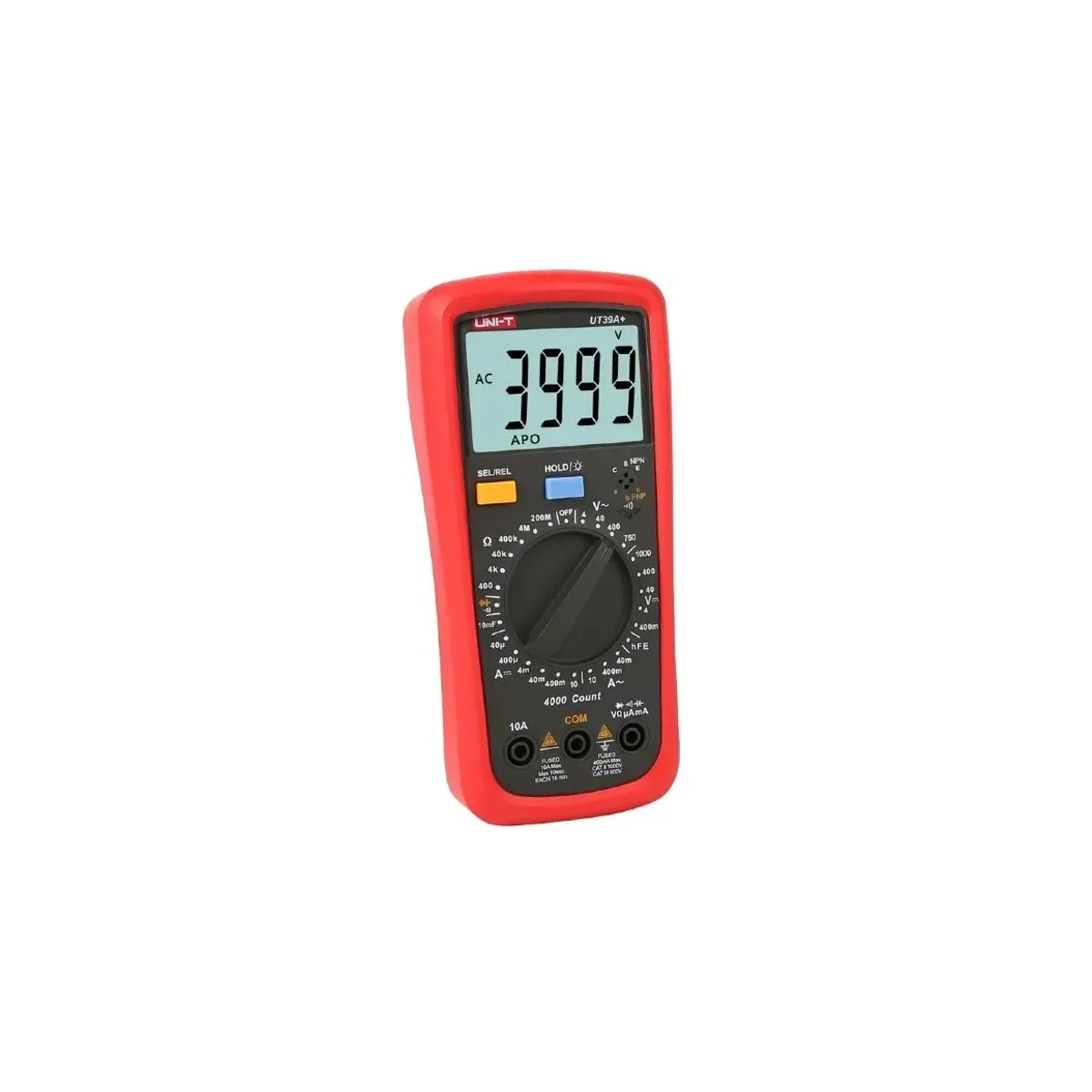

Unit UT39A+ Digital Multimeter
- Brand: Unit
- SKU: UT39A+
- MPN: UT39A+
- Price: 1005.00 TRY + VAT · incl. VAT 1206.00 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT39A+ Digital Multimeter is a digital multimeter model from the UNI-T UT39+ series. It has a 4000-count display. Measurement functions: DC voltage (1000 V), AC voltage (750 V), DC current (10 A), AC current (10 A), resistance (200 MΩ), capacitance (10 mF). Safety category CAT II 1000 V, CAT III 600 V. Power source: 2 × 1.5 V battery (R03). Box contents: test probes, English user manual.
| Display Count | 4000 |
|---|---|
| DC Voltage Measurement | 400 mV / 4 V / 40 V / 400 V / 1000 V · ±(%0,5+5) |
| AC Voltage Measurement | 4 V / 40 V / 400 V / 750 V · ±(%0,8+3) |
| DC Current Measurement | 40 µA / 400 µA / 4 mA / 40 mA / 400 mA / 10 A · ±(%0,8+3) |
| AC Current Measurement | 40 mA / 400 mA / 10 A · ±(%1+2) |
| Resistance Measurement | 400 Ω / 4000 Ω / 40 kΩ / 400 kΩ / 4 MΩ / 200 MΩ · ±(%0,8+2) |
| Capacitance Measurement | 10 mF · ±(%4+5) |
| Safety Category | CAT II 1000 V, CAT III 600 V |
| Power Source | 2 × 1,5 V pil (R03) |
| Display Size | 56,5 mm × 36 mm |
| Product Dimensions | 175 mm × 83 mm × 53 mm |
| Gram | 330 g |
| Standard Accessories | Test probları, İngilizce kullanım kılavuzu |
