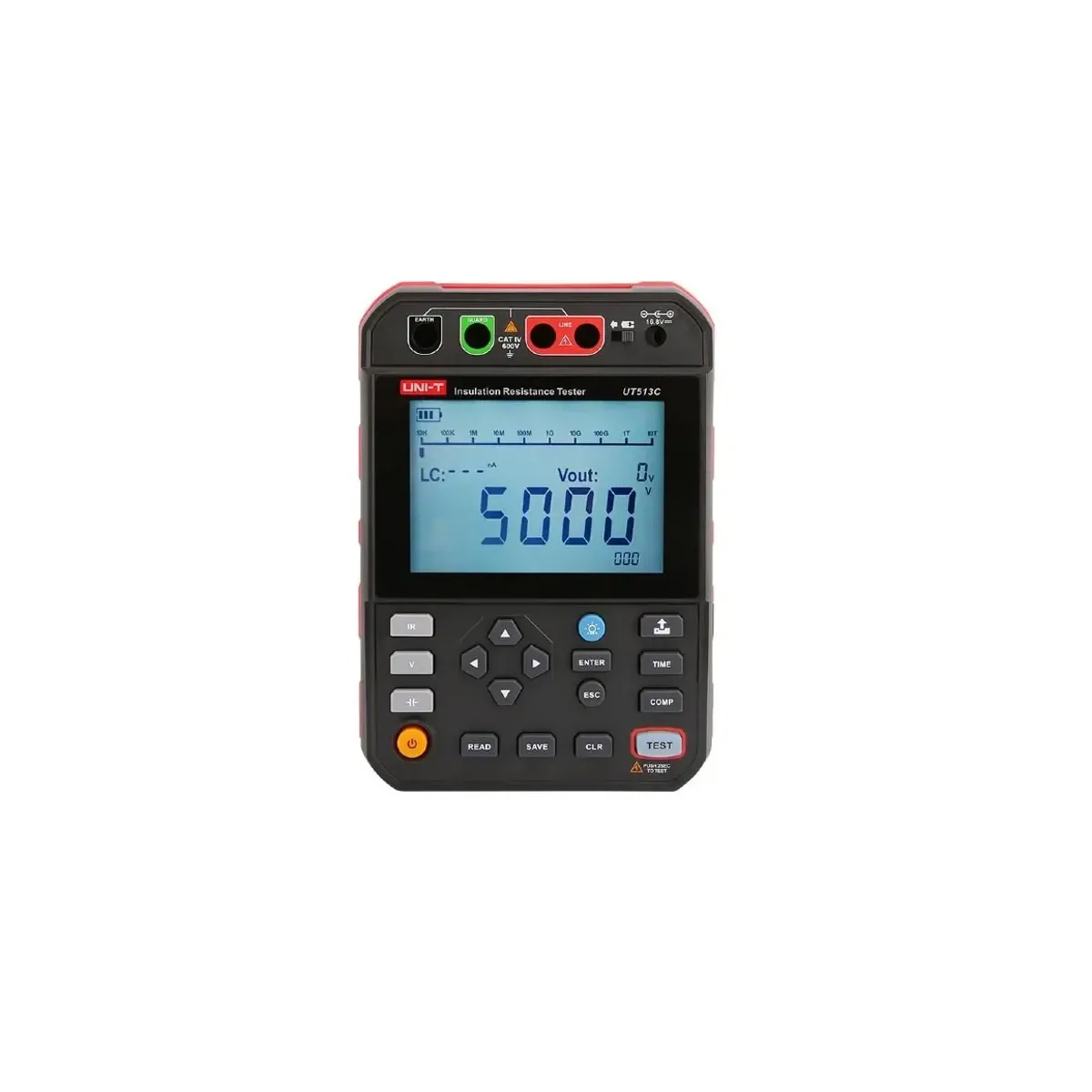

Unit UT513C Insulation Resistance Tester
- Brand: Unit
- SKU: UT513C
- MPN: UT513C
- Price: 27865.83 TRY + VAT · incl. VAT 33439.00 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT513C Insulation Resistance Tester. AC Voltage Measurement: 30~750VAC(50Hz/60Hz): ±(3%+5). DC Voltage Measurement: 30~1000VDC: ±(3%+5). Capacitance Measurement: 0.01uF~15.0uF. Current Measurement: 0.01nA~5.0mA. Short-circuit Current: approximately 5.0mA. PI Test: Yes. DAR Test: Yes. Comparative Resistance Test: Yes. Voltage Step: Yes. Memory: 999 records. Other features: USB Data Transfer: Yes; Bluetooth: Yes; Low Battery Indication: Yes; Auto Power Off: Approx. 15 minutes; Safety Category: CAT IV 600V; Power Source: 14.8V,5200mAh lithium battery; Weight: Approx. 1800g (battery included); Product Dimensions: 238 x 166 x 90.5mm(L*W*D).
| AC Voltage Measurement | 30~750VAC(50Hz/60Hz): ±(3%+5) |
|---|---|
| Current Measurement | 0.01nA~5.0mA |
| Gram | Yaklaşık 1800g (pil dahil) |
| Bluetooth | Available |
| DAR Test | Available |
| DC Voltage Measurement | 30~1000VDC: ±(3%+5) |
| Low Battery Indication | Available |
| Voltage Step | Available |
| Safety Category | CAT IV 600 V |
| Power Source | 14.8V,5200mAh lityum pil |
| Memory | 999 kayıt |
| Capacitance Measurement | 0.01uF~15.0uF |
| Comparative Resistance Test | Available |
| Short-circuit Current | yaklaşık 5.0mA |
| Auto Power Off | Yaklaşık 15 dakika |
| PI Test | Available |
| Test Voltages | 250 / 500 / 1000 / 2500 / 5000 V |
| USB Data Transfer | Available |
| Product Dimensions | 238 x 166 x 90.5mm(L*W*D) |
| Insulation Resistance (1000V Test) | <1.00MΩ: yalnız referans; 1.00MΩ–9.99GΩ: ±(5%+5); 10.0GΩ–199GΩ: ±(10%+10); 200GΩ–1.00TΩ: yalnız referans |
| Insulation Resistance (2500V Test) | <2.50MΩ: yalnız referans; 2.50MΩ–24.9GΩ: ±(5%+5); 25.0GΩ–499GΩ: ±(15%+10); 500GΩ–2.50TΩ: yalnız referans |
| Insulation Resistance (250V Test) | <0.25MΩ: yalnız referans; 0.25MΩ–4.99GΩ: ±(5%+5); 5.00GΩ–49.9GΩ: ±(10%+10); 50.0GΩ–250GΩ: yalnız referans |
| Insulation Resistance (5000V Test) | <5.00MΩ: yalnız referans; 5.00MΩ–49.9GΩ: ±(5%+5); 50.0GΩ–999GΩ: ±(15%+20); 1.00TΩ–5.00TΩ: yalnız referans |
| Insulation Resistance (500V Test) | <0.50MΩ: yalnız referans; 0.50MΩ–4.99GΩ: ±(5%+5); 5.00GΩ–99.9GΩ: ±(10%+10); 100GΩ–500GΩ: yalnız referans |
