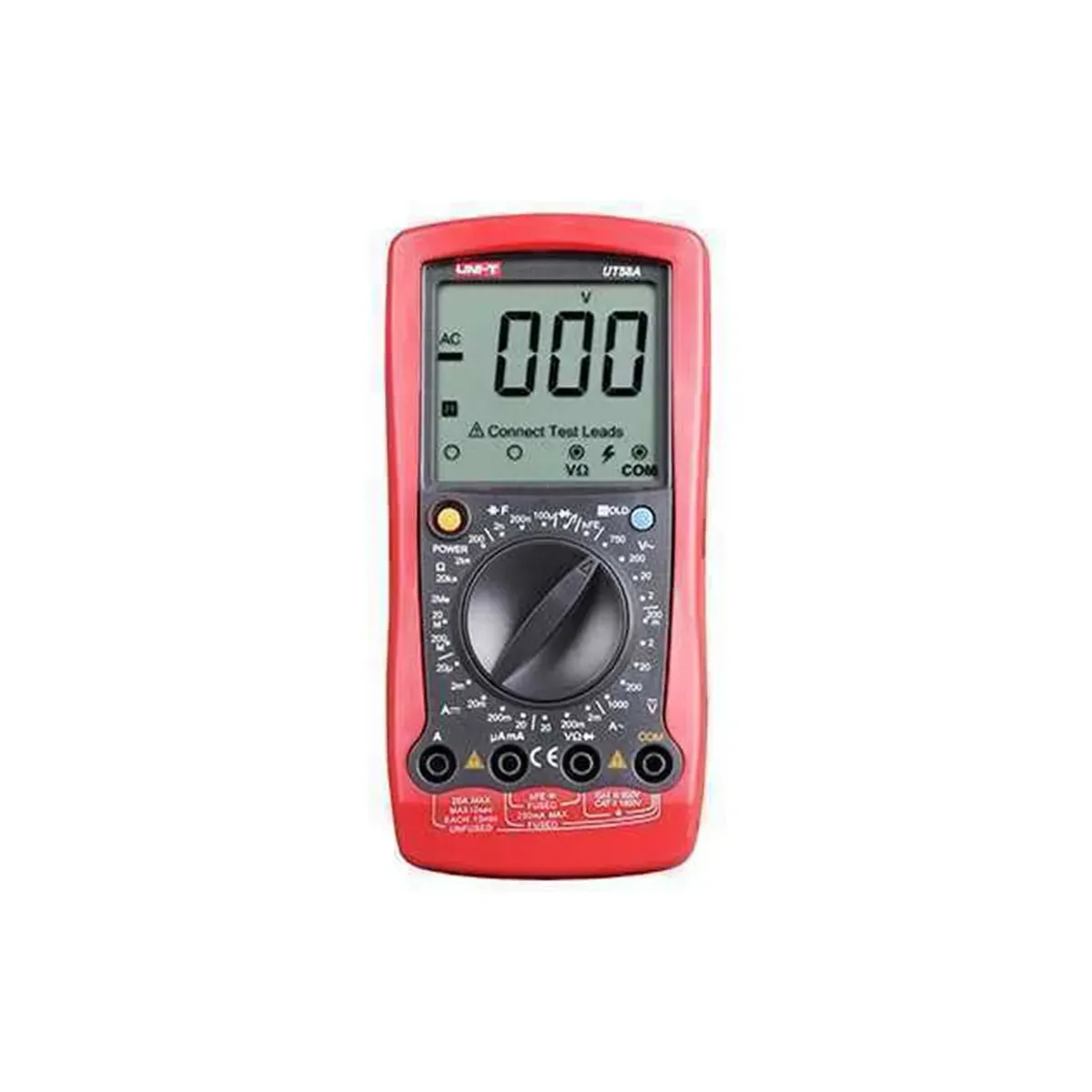

Unit UT58A Digital Multimeter
- Brand: Unit
- SKU: UT58A
- MPN: UT58A
- Price: 1598.86 TRY + VAT · incl. VAT 1918.63 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT58A Digital Multimeter is a digital multimeter model from the UNI-T UT58 series. Measurement functions: DC voltage (1000 V), AC voltage (750 V), DC current (20 A), AC current (20 A), resistance (200 MΩ), capacitance (100 µF). Power source: 9 V battery (6F22). Box contents: battery, test probes, protective case, multipurpose socket.
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · ±(%0,5+1) |
|---|---|
| AC Voltage Measurement | 2 V / 20 V / 200 V / 750 V · ±(%0,8+3) |
| DC Current Measurement | 20 µA / 2 mA / 20 mA / 200 mA / 20 A · ±(%0,8+1) |
| AC Current Measurement | 2 mA / 200 mA / 20 A · ±(%1+3) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 2 MΩ / 20 MΩ / 200 MΩ · ±(%0,8+1) |
| Capacitance Measurement | 2 nF / 200 nF / 100 µF · ±(%4+3) |
| Power Source | 9 V pil (6F22) |
| Display Size | 60 mm × 54 mm |
| Product Dimensions | 179 mm × 88 mm × 39 mm |
| Gram | 350 g |
| Standard Accessories | Pil, test probları, koruyucu kılıf, çok amaçlı soket |
