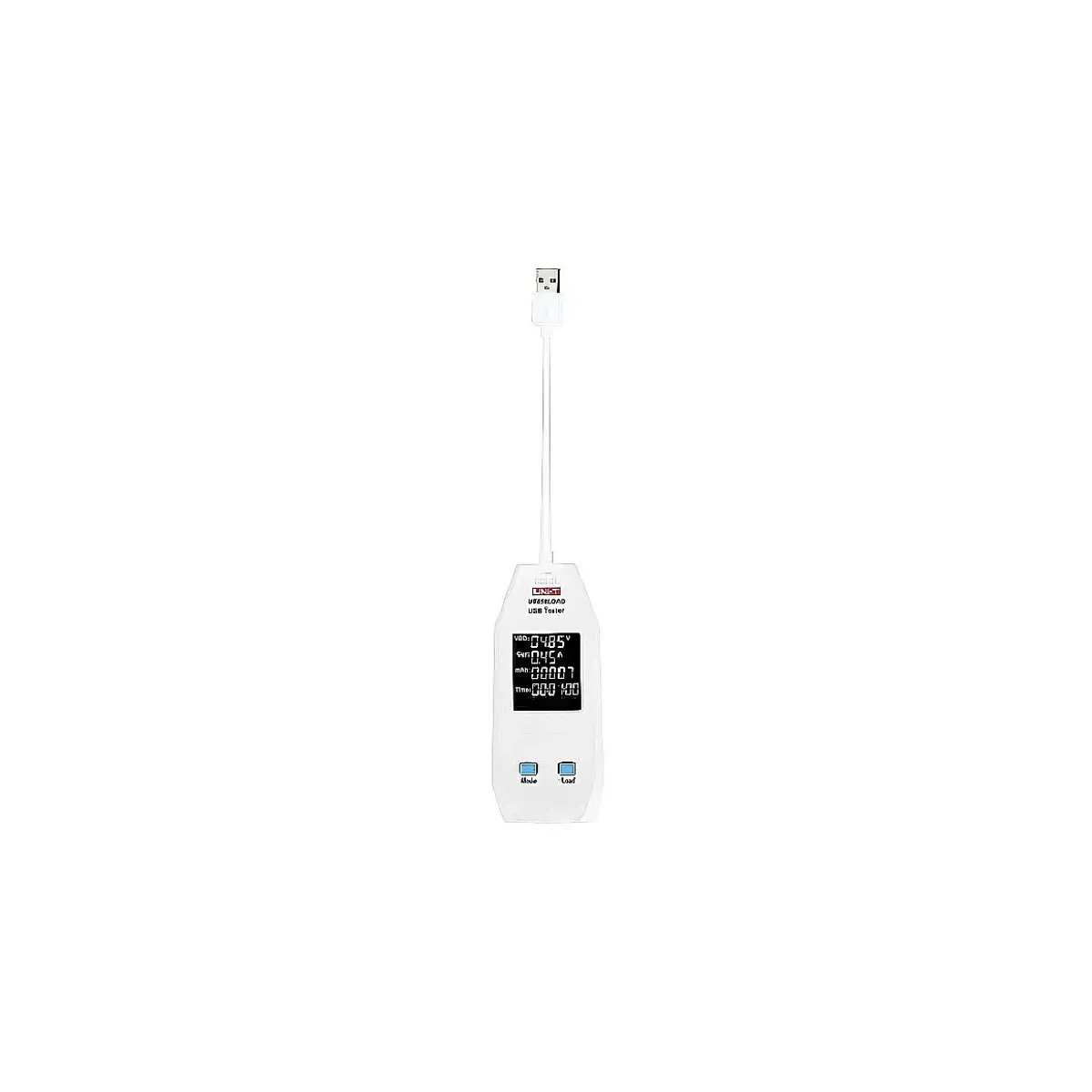

Unit UT658LOAD USB Tester
- Brand: Unit
- SKU: UT658LOAD
- MPN: UT658LOAD
- Price: 1005.00 TRY + VAT · incl. VAT 1206.00 TRY
- Availability: Made to order
- USB Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT658LOAD USB Tester is a USB tester model from the UNI-T UT658 series. Data/charging protocol: USB 2.0 / 3.0. Other features: input/output ports (Type-A), voltage measurement, current measurement (Type-A), capacity measurement, energy measurement, circuit equivalent resistance measurement, USB data line voltage (D+, D−), data logging, electronic load, maximum recording time, fast charging protocol (Type-A).
| Gram | 114.4 g |
|---|---|
| Circuit Equivalent Resistance | 1~480Ω |
| Additional Functions | Giriş/çıkış portları (Type-A), gerilim ölçümü, akım ölçümü (Type-A), kapasite ölçümü, enerji ölçümü, devre eşdeğer direnci ölçümü, USB veri hattı gerilimi (D+, D−), veri kaydı, elektronik load, maksimum kayıt süresi, hızlı şarj protokolü (Type-A) |
| Energy Measurement | 0~1000Wh |
| Voltage Range | 4~24VDC, çözünürlük: 0.01V |
| Input and Output Ports | Available |
| Memory | 10 kayıt |
| Capacity Measurement | 0~99999mAh, çözünürlük: 1mAh |
| Maximum Recording Time | 99h, 59min, 59s; çözünürlük: 1s |
| Type-A Current Range | 0.05~3ADC, çözünürlük: 0.01A |
| Type-A Fast Charging Protocol | QC 3.0 hızlı şarj protokolü |
| USB Data Line Voltage | 0~3.3V |
| Data/Charging Protocol | USB 2.0 / 3.0 |
| Product Dimensions | 122 mm × 53 mm × 27 mm |
