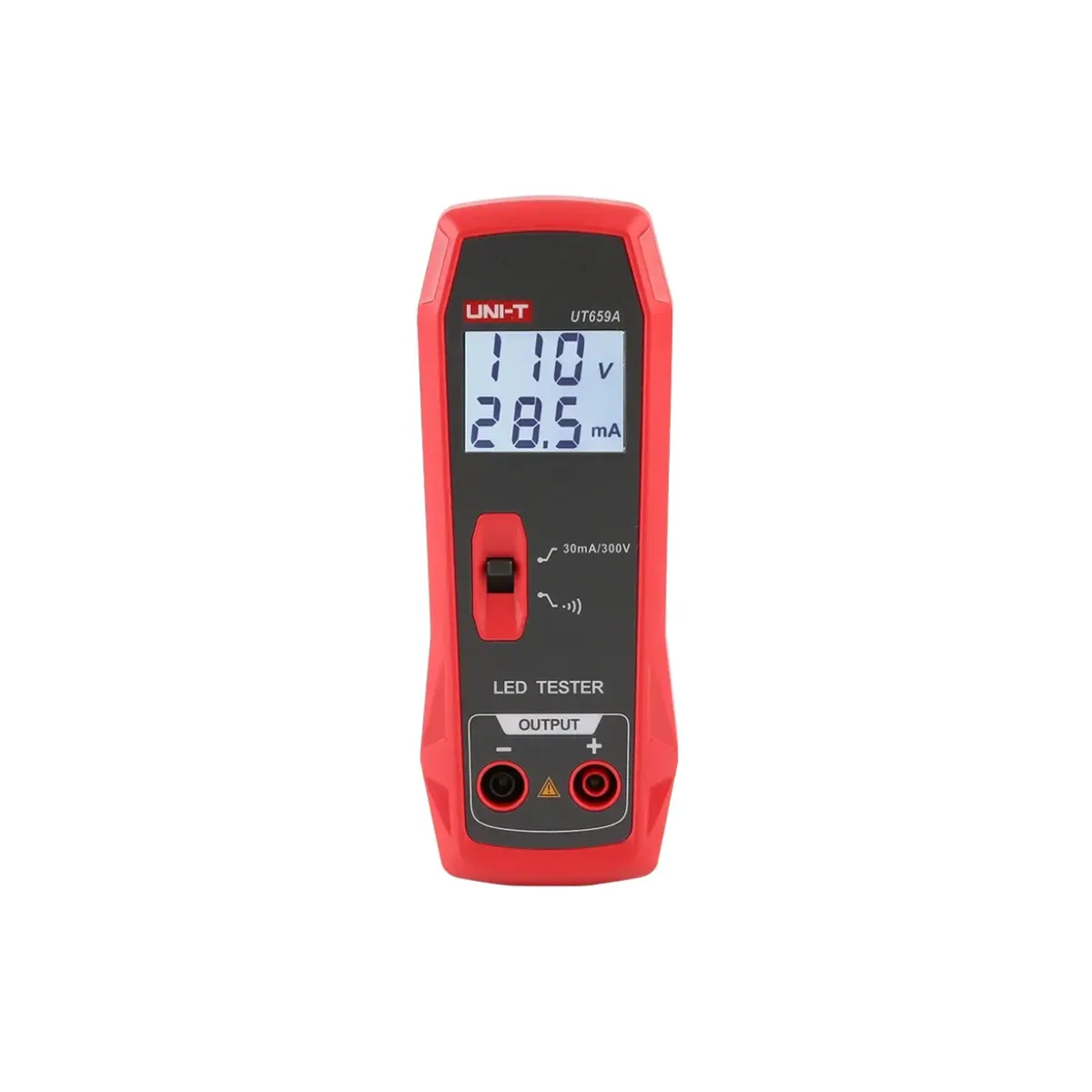

Unit UT659A LED Bar Tester
- Brand: Unit
- SKU: UT659A
- MPN: UT659A
- Price: 1872.95 TRY + VAT · incl. VAT 2247.54 TRY
- Availability: Made to order
- LED Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT659A LED Bar Tester, an LED tester model of the UNI-T UT659 series. Safety category CAT II 300 V. Power source: AC 85–260 V, 50/60 Hz. Box contents: power cable, test probes, English user manual.
| Backlight | sürekli açık |
|---|---|
| Gram | 175 g |
| Storage Temperature | −10 °C – 50 °C |
| Drop Resistance | 1 m |
| Drop Protection | 1 m |
| Display Size | 60 mm × 35 mm |
| Input Range | 85V – 265V @ 50/60Hz |
| Input Voltage | 85–265 V, 50 / 60 Hz |
| Safety Category | CAT II 300 V |
| Safety Protection | yüksek empedanslı açık devre |
| Power Source | AC 85–260 V, 50/60 Hz |
| Certifications | CE, RoHS |
| Standard Accessories | Güç kablosu, test probları, İngilizce kullanım kılavuzu |
| Continuity Test | çıkış gerilimi: 5 V DC, ölçüm direnci: 0 – 99,9 Ω |
| Operating Humidity | <80 %RH |
| Operating Temperature | 0 °C – 40 °C |
| Operating Altitude | ≤2000 m |
| Output Current | 30 mA |
| Output Voltage | 300 V |
| Product Dimensions | 150 mm × 56 mm × 42 mm |
