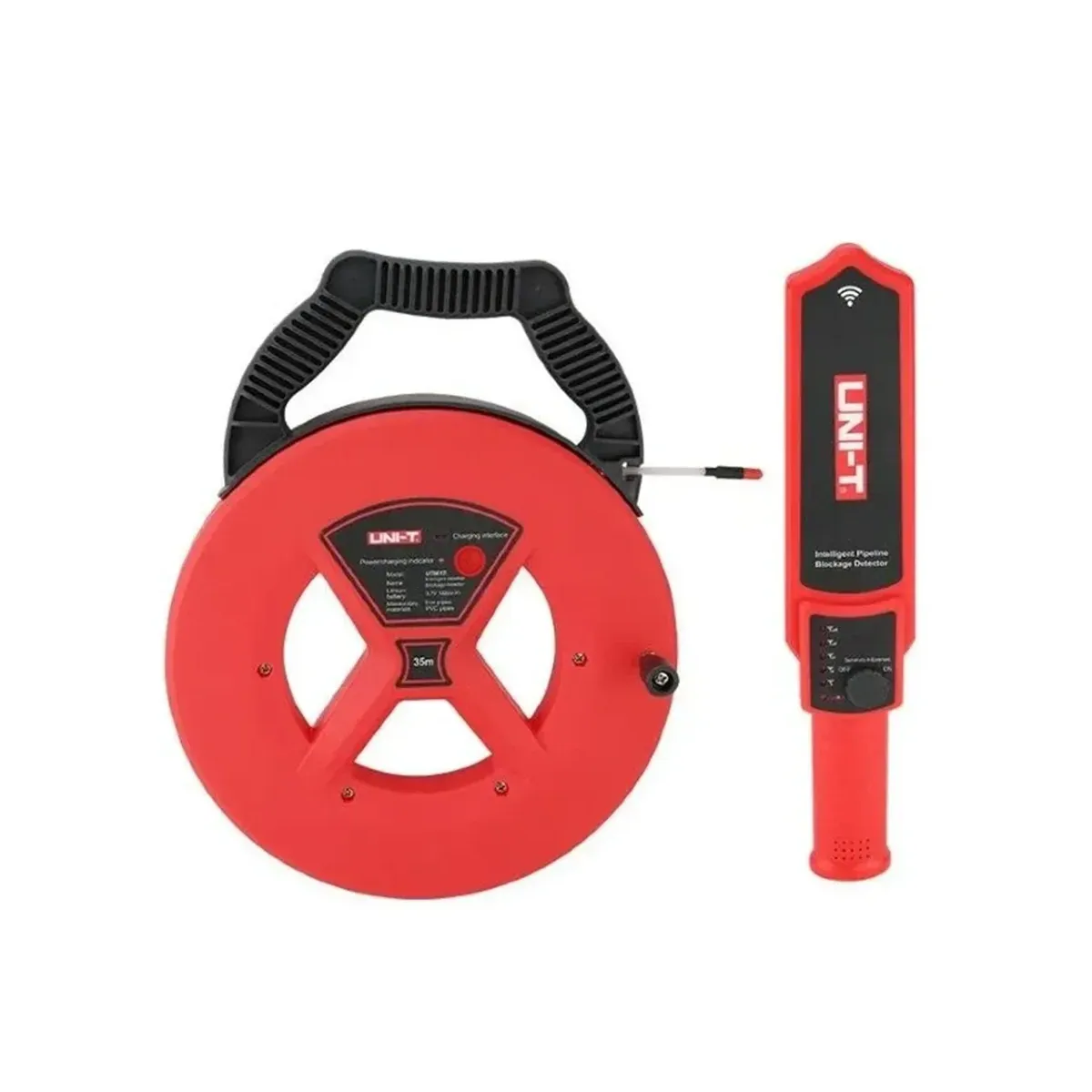

Unit UT661D Pipe Blockage Detector
- Brand: Unit
- SKU: UT661D
- MPN: UT661D
- Price: 3426.13 TRY + VAT · incl. VAT 4111.36 TRY
- Availability: Made to order
- Wall Scanners
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT661D Pipe Blockage Detector, a pipe blockage detector model from the UNI-T UT661 series. Other features: transmitter, receiver, audible alert, visual alert, low battery alert. Box contents: charging cable, probe set.
| Detection Depth | 50 cm |
|---|---|
| Detectable Pipe Material | plastik ve metal borular |
| Receiver Current | kapalıyken < 2 µA, beklemede < 40 mA, en fazla 150–450 mA (1 cm mesafede) |
| Receiver Battery | dahili 3,7 V 1800 mAh lityum batarya |
| Gram | verici: 1,42 kg; alıcı: 0,26 kg |
| Low Battery Indication | Available |
| Additional Functions | Verici, alıcı, sesli uyarı, ışıklı uyarı, düşük pil uyarısı |
| Illuminated Warning | Available |
| Maximum Detection Depth | 50 cm |
| Battery Life | 10 saat |
| Sound Level (0.5 m) | >75 dB |
| Sound Level (1 cm) | >93 dB |
| Audible Alarm | Available |
| Signal Cable | 35 m |
| Standard Accessories | Şarj kablosu, prob seti |
| Waterproofing | prob IP67 |
| Transmitter Current | kapalıyken < 2 µA, çalışırken 230–310 mA |
| Transmitter Battery | dahili 3,7 V 1800 mAh lityum batarya |
| Operating Environment | −20 °C – 60 °C, 10 – 80 %RH |
| Product Dimensions | verici 38 × 30 × 42 mm; alıcı 40 × 38 × 80 mm |
| Charging Current | 450–550 mA |
