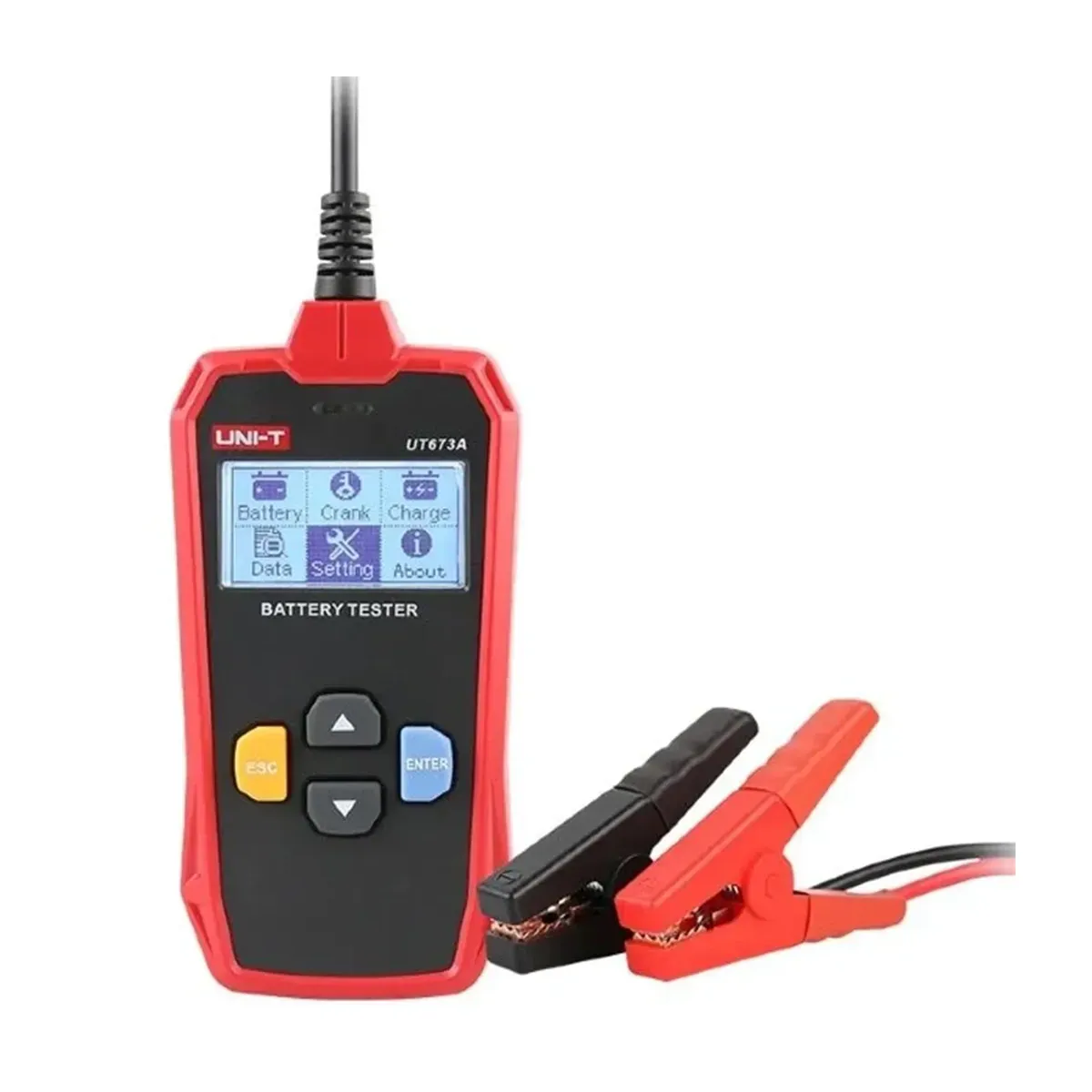

Unit UT673A Digital Battery Tester
- Brand: Unit
- SKU: UT673A
- MPN: UT673A
- Price: 1964.31 TRY + VAT · incl. VAT 2357.17 TRY
- Availability: In stock
- Cell and Battery Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT673A Digital Battery Tester is a battery tester model manufactured by UNI-T. Supported battery types: standard lead-acid, AGM flat plate, AGM spiral, gel (GEL), EFB. The battery capacity range is 3 – 250 Ah. Other features: 12 V battery test (7 – 16 V DC), overvoltage protection, reverse connection protection, poor contact warning, battery status indicator, battery life display, battery capacity display, battery internal resistance display. Power source: powered from an external source.
| 12 V Battery Test | 7~16V DC |
|---|---|
| 12 V/24 V Cranking System Test | 7 – 30 V DC |
| 12 V/24 V Charging System Test | 7 – 30 V DC |
| Battery Capacity Range | 3 – 250 Ah |
| Battery Standards and Range | CCA: 40 – 2000; BCI: 40 – 2000; CA: 40 – 2000; MCA: 40 – 2000; JIS: 26A17 – 245H52; DIN: 40 – 1400; IEC: 40 – 1400; EN: 40 – 2000; SAE: 40 – 2000; AH: 3 – 250 Ah |
| Battery Types | standart kurşun asit, AGM düz plaka, AGM spiral, jel (GEL), EFB |
| Battery Internal Resistance Indicator | Available |
| Gram | 264 g |
| Overvoltage Protection | Available |
| Additional Functions | 12 V akü testi (7 – 16 V DC), aşırı gerilim koruması, ters bağlantı koruması, zayıf temas uyarısı, pil durumu göstergesi, akü ömrü gösterimi, akü kapasitesi gösterimi, akü iç direnci gösterimi |
| Display Size | 128 × 64 siyah-beyaz nokta matris |
| Power Source | harici kaynaktan beslenir |
| Poor Contact Indicator | Available |
| Battery Status Indicator | Available |
| Battery Capacity | 3~250Ah |
| Battery Capacity Indicator | Available |
| Battery Life Indicator | Available |
| Certifications | CE, FCC, RoHS |
| Reverse Connection Protection | Available |
| Product Dimensions | 76 mm × 22 mm × 142 mm |
