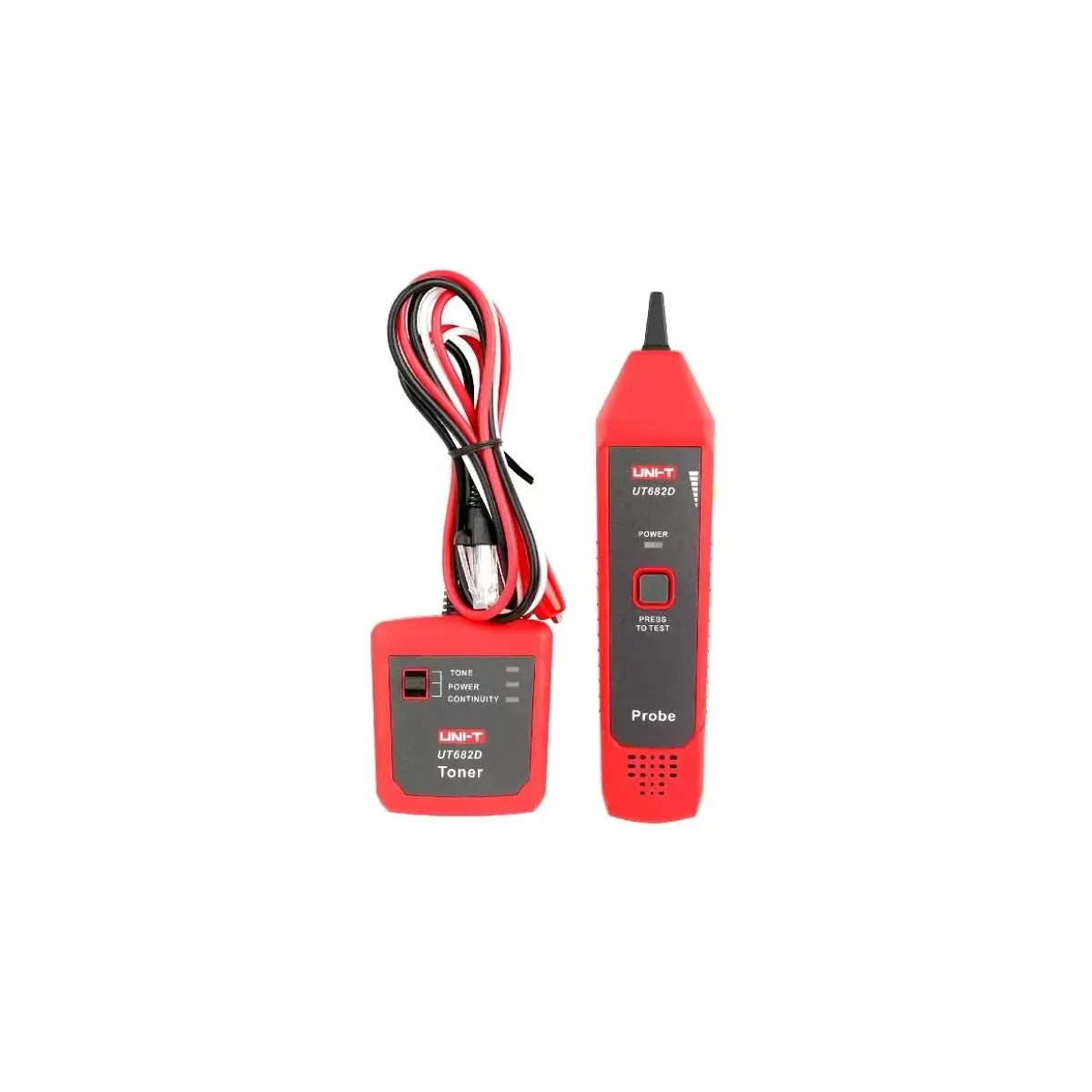

Unit UT682 Cable tracer and Tester
- Brand: Unit
- SKU: UT682
- MPN: UT682
- Price: 1644.54 TRY + VAT · incl. VAT 1973.45 TRY
- Availability: In stock
- Cable Testers and Tracers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT682 Cable tracer and Tester. Cable Types: LAN, telephone line, coaxial cable and electrical wire. Telephone Line Tracing Distance: ≥3000 m. Telephone Line Polarity Test: DC ±(5–52 V). Line Separation: Distinguishing telephone and LAN connections. Transmitter Output Voltage: ≥12 V peak-to-peak. Power Source: One 9 V battery each in the transmitter and receiver. Receiver Standby Current: Approximately 10 mA. Receiver Operating Current: <40 mA (AC RMS). Transmitter Input Protection: 52 V DC. Operating Environment: 0°C – 40°C; 20%–75 RH. Other features: Storage Environment: -10°C – 50°C; 10%–90 RH; Operating Altitude: ≤2000 m; Weight: Transmitter 125 g; receiver 153 g; Product Dimensions: Transmitter 125 × 48 × 28 mm; receiver 195 × 48 × 30 mm; Shielded/Unshielded Cable Tracing Distance: ≥320 m; Control Panel Cable Tracing Distance: ≥100 m; Open and Short Circuit Test: Yes; Broken Wire Tracing: Yes.
| Receiver Standby Current | Yaklaşık 10 mA |
|---|---|
| Receiver Operating Current | <40 mA (AC RMS) |
| Open and Short Circuit Test | Available |
| Gram | Verici 125 g; alıcı 153 g |
| Storage Environment | -10°C – 50°C; %10–90 RH |
| Shielded/Unshielded Cable Tracing Distance | ≥320 m |
| Power Source | Verici ve alıcıda birer 9 V pil |
| Line Separation | Telefon ve LAN bağlantılarını ayırt etme |
| Line Sequence Test | 9 LED; hızlı ve yavaş mod |
| Cable Types | LAN, telefon hattı, koaksiyel kablo ve elektrik teli |
| Broken Wire Tracing | Available |
| Headphone Jack | Available |
| Control Panel Cable Tracing Distance | ≥100 m |
| Telephone Line Polarity Test | DC ±(5–52 V) |
| Telephone Line Tracing Distance | ≥3000 m |
| Transmitter Low Battery Warning | 6.6 V ±0.5 V |
| Transmitter Input Protection | 52 V DC |
| Transmitter Operating Current | En fazla 25 mA |
| Transmitter Output Voltage | ≥12 V tepeden tepeye |
| Operating Environment | 0°C – 40°C; %20–75 RH |
| Operating Altitude | ≤2000 m |
| Product Dimensions | Verici 125 × 48 × 28 mm; alıcı 195 × 48 × 30 mm |
