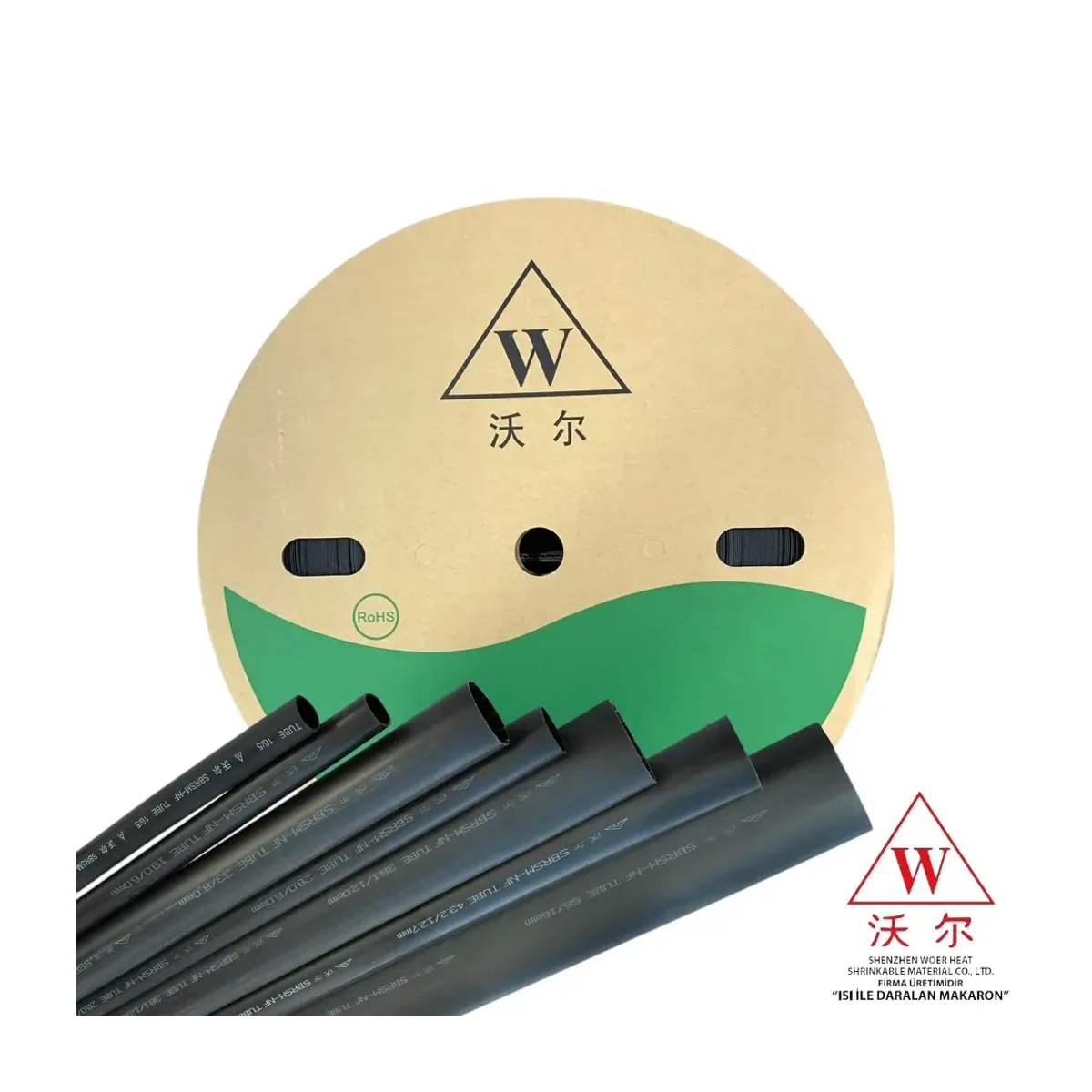

Woer SBRSM-NF Adhesive-Lined Heat-Shrink Sleeve 3/1 65 mm 1.22 m Length
- Brand: Woer
- SKU: KSN1413
- Price: 162.67 TRY + VAT · incl. VAT 195.20 TRY
- Availability: In stock
- Gel-Filled Adhesive Heat-Shrink Sleeves
- Woer Gel-Filled Adhesive Heat-Shrink Sleeves
- Selection guide: Gel-Filled Adhesive Heat-Shrink Sleeves Selection Guide: Technical Criteria and Engineering Practice
Woer SBRSM-NF Adhesive-Lined Heat-Shrink Sleeve 3/1 65 mm 1.22 m Length, a polyolefin sleeve with an inner adhesive layer and a 3/1 shrink ratio; used for insulating and sealing cables and connection points. Nominal size 65 mm, length 1.22 m. After shrinking, the diameter is 19 mm, the wall thickness is 2.50 ± 0.30 mm, the adhesive layer is 0.80 ± 0.25 mm and the total wall thickness is 3.30 ± 0.45 mm. Made of polyolefin, flame retardancy is self-extinguishing; operating temperature -55 °C + 125 °C. The product is sold by the piece as a 1.22 m length; the catalog lists a case quantity of 25 pieces.
| Material | Polyolefin |
|---|---|
| Shrink Ratio | 3/1 |
| Flame Retardancy | Self-extinguishing |
| Operating Temperature | -55 °C + 125 °C |
| Diameter after Shrinking | 19 mm |
| Wall Thickness (after shrinking) | 2,50 ± 0,30 mm |
| Adhesive Layer Thickness (after shrinking) | 0,80 ± 0,25 mm |
| Total Wall Thickness (after shrinking) | 3,30 ± 0,45 mm |
| Nominal Size | 65 mm |
| Length | 1.22 m |
