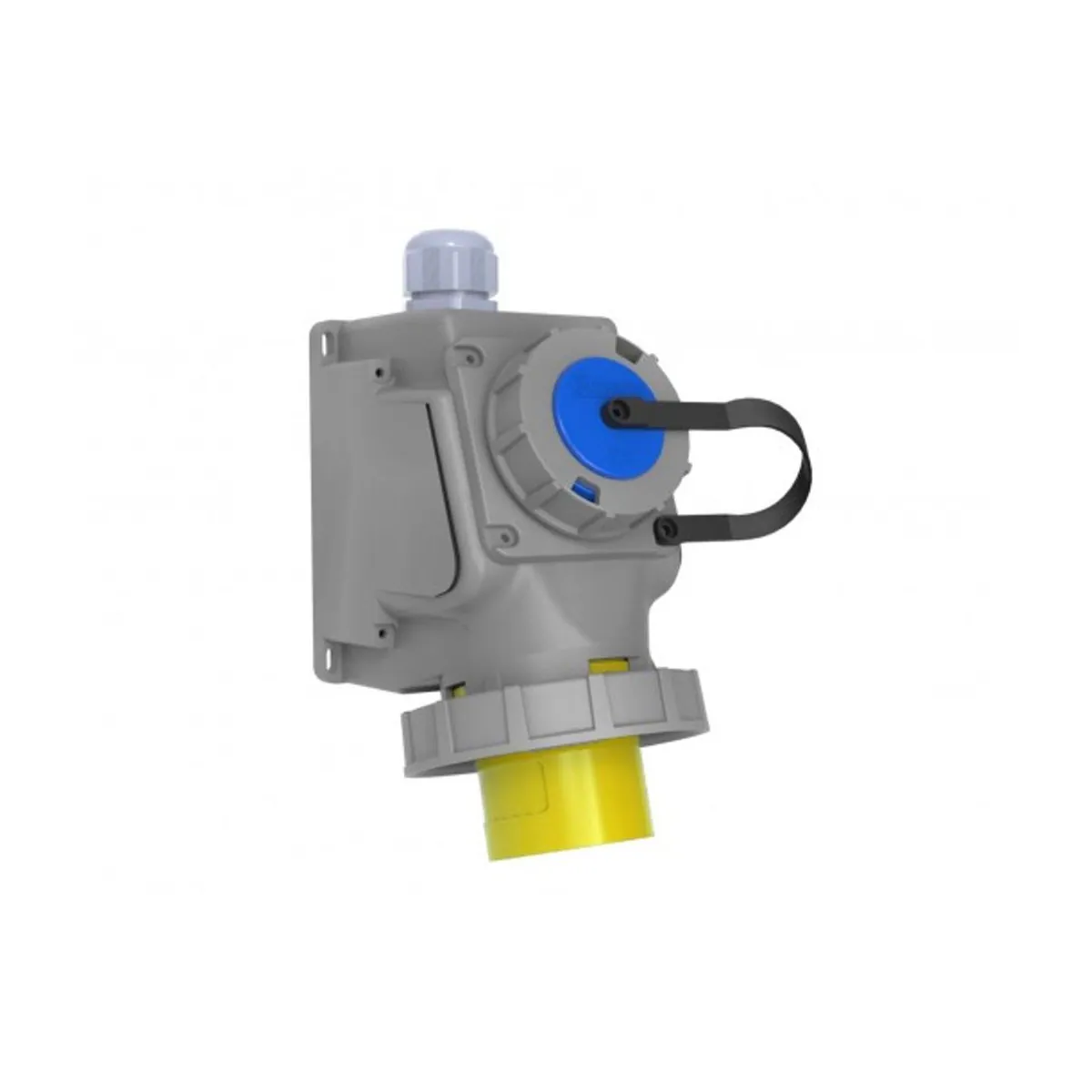

Bemis BC1-3303-7238 CEE 90° Angled Wall Plug with Machine Socket 32 A 2P+E IP67
- Brand: Bemis
- SKU: BC1-3303-7238
- MPN: BC1-3303-7238
- Price: 863.39 TRY + VAT · incl. VAT 1036.07 TRY
- Availability: In stock
- CEE Angled Wall Plugs
- Bemis CEE Angled Wall Plugs
- Selection guide: CEE Angled Wall Plugs Selection Guide: Technical Criteria and Engineering Practice
Bemis BC1-3303-7238, CEE 90° Angled Mak. Wall plug with socket model. Rated Current: 32 A. Pole arrangement: 2P+E. Voltage: 110V. AC. IP Rating: IP67. Housing Material: Polyamide 6.
| Series | 3 Kontaklı CEE Norm Seri |
|---|---|
| IP Rating | IP67 |
| Rated Current | 32 A |
| Number of Contacts | 3 |
| Pole Arrangement | 2P+E |
| Voltage | 110V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 4h |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 90° |
| Series Electrical Designation | 3/32A. (2P+E) 110V. AC 50/60 Hz. 4h (Polyamid 6) |
| Product Configuration | 3/32A. 90° Eğik Mak. Prizli Duvar Fişi |
| Contact Material | MS 58 |
| Gram | 508 g |
| Voltage range | 110–150 V |
| Technical Drawing Dimension Notes | a: 113; b: 82; c: 91; d: 149; e: 131; f: 199 (mm) |
