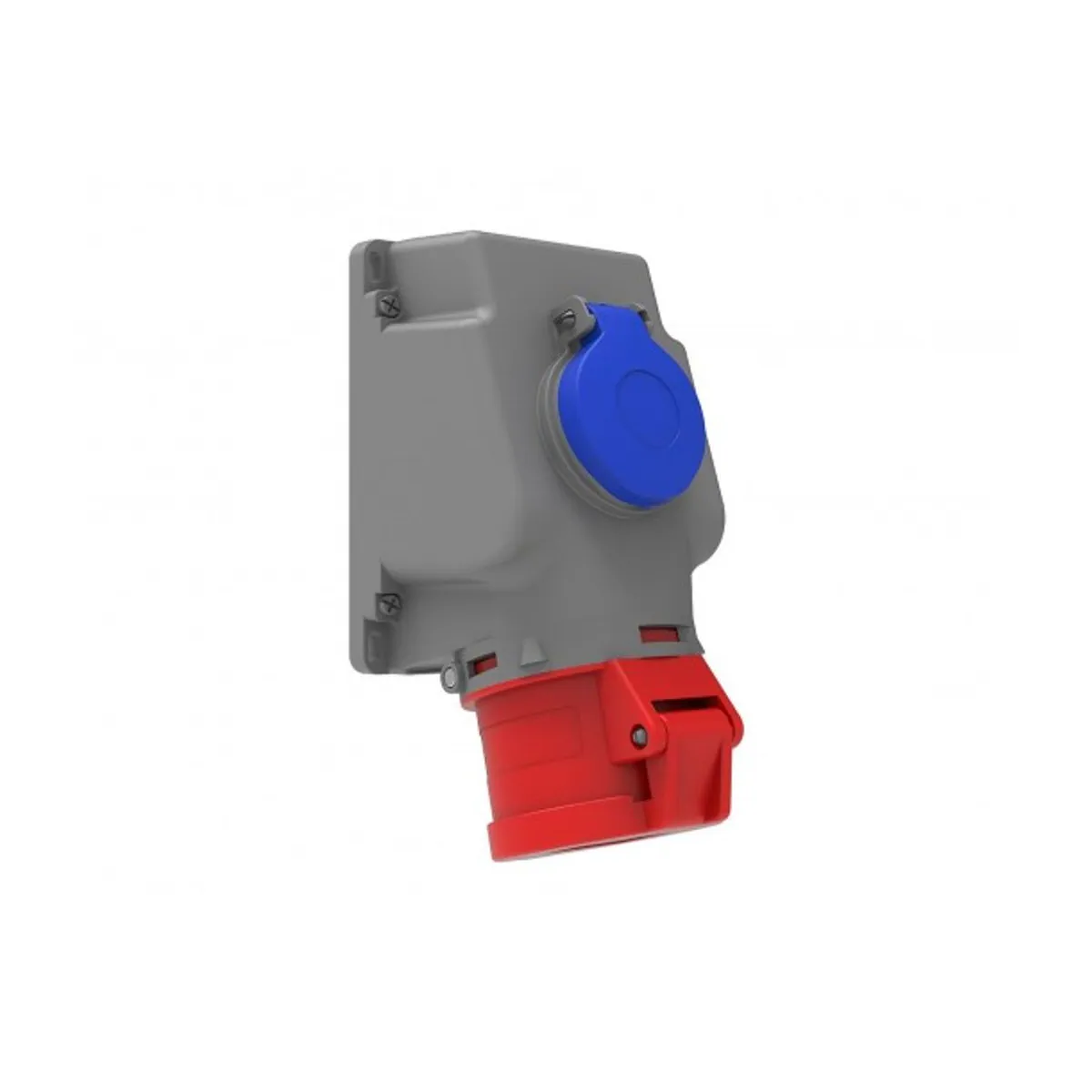

Bemis BC1-3505-2537 CEE 90° Angled Wall Socket with Panel Socket 32 A 3P+E+N IP44
- Brand: Bemis
- SKU: BC1-3505-2537
- MPN: BC1-3505-2537
- Price: 919.79 TRY + VAT · incl. VAT 1103.75 TRY
- Availability: In stock
- CEE Angled Wall Sockets
- Bemis CEE Angled Wall Sockets
- Selection guide: CEE Angled Wall and Surface Sockets Selection Guide
Bemis BC1-3505-2537, CEE 90° Angled Wall Socket with Panel Socket model. Rated Current: 32 A. Pole Arrangement: 3P+E+N. Voltage: 380V. AC. IP Rating: IP44. Housing Material: Polyamide 6.
| Series | 5 Kontaklı CEE Norm Seri |
|---|---|
| IP Rating | IP44 |
| Rated Current | 32 A |
| Number of Contacts | 5 |
| Pole Arrangement | 3P+N+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 90° |
| Series Electrical Designation | 5/32A. (3P+E+N) 380V. AC 50/60 Hz. 6h (Polyamid 6) |
| Product Configuration | 5/32A. 90° Eğik P. Prizli Duvar Priz |
| Contact Material | MS 58 |
| Gram | 416.6 g |
| Voltage range | 380–450 V |
| Internal wiring | Kablo bağlantıları yapılmış ve klemense toplanmış |
| Technical Drawing Dimension Notes | a: 78; b: 64; c: 79; d: 78; e: 87; f: 96 (mm) |
