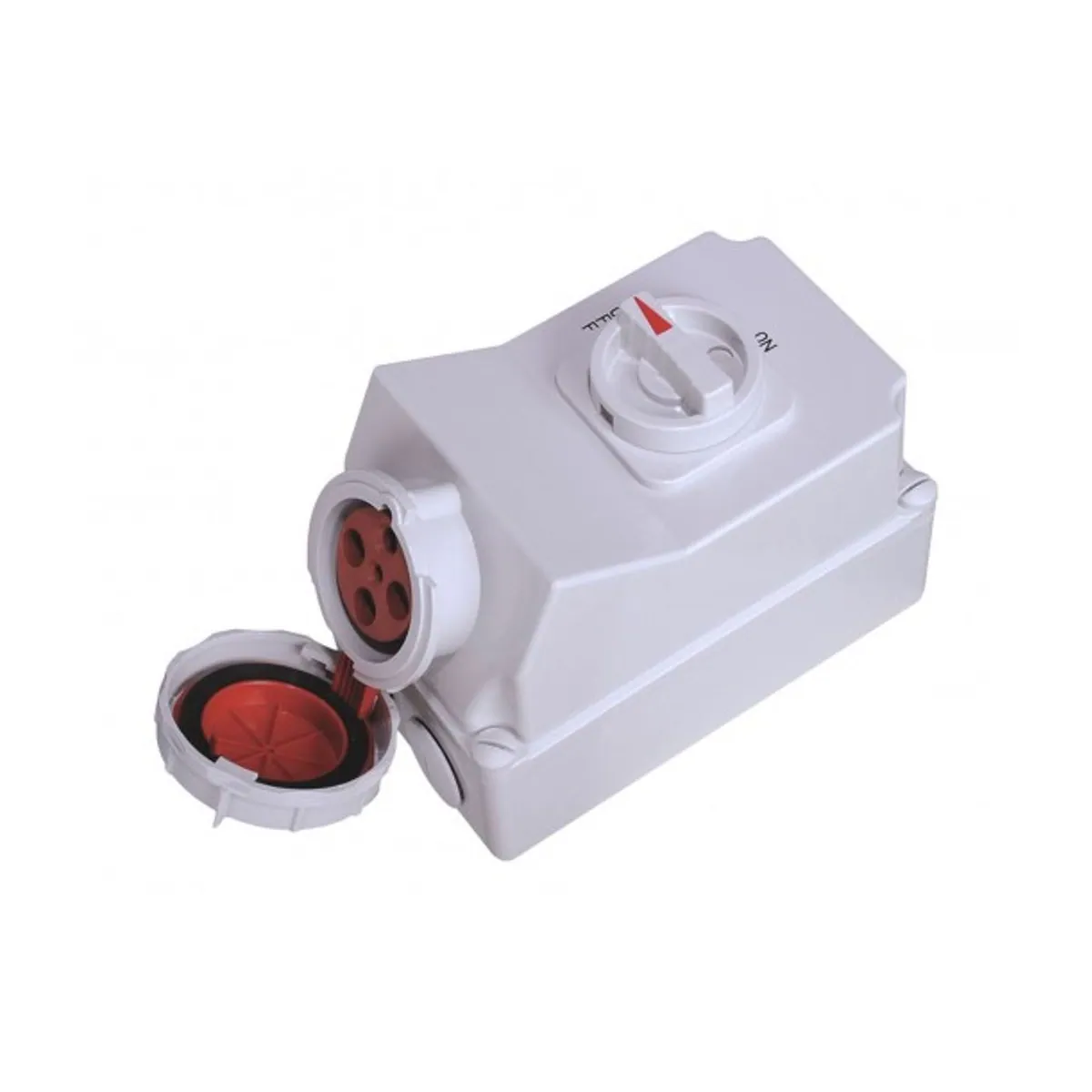

Bemis BC1-4504-7540 Socket with Interlock Switch 63 A 3P+E IP67
- Brand: Bemis
- SKU: BC1-4504-7540
- MPN: BC1-4504-7540
- Price: 5350.95 TRY + VAT · incl. VAT 6421.14 TRY
- Availability: In stock
- Switched and Interlocked CEE Sockets
- Bemis Switched and Interlocked CEE Sockets
- Selection guide: Switched and Interlocked CEE Sockets Selection Guide: Technical Criteria and Engineering Practice
This Bemis BC1-4504-7540 is a socket with interlock switch. Rated Current: 63 A. Pole arrangement: 3P+E. Voltage: 380V-450V. IP Rating: IP67. Mechanical interlock operation: The switch is enabled when the plug is inserted; the plug can be removed only in the OFF position.
| Series | CEE Norm Interlock Priz |
|---|---|
| IP Rating | IP67 |
| IK Impact Protection | IK8 |
| Rated Current | 63 A |
| Number of Contacts | 4 |
| Warranty Period | 2 years |
| Inclination Angle | 90° |
| Manufacturer Stated Standards | IEC 309-1 | IEC 309-2 | EN 60 309-1 | EN 60 309-2 | IEC 60947 |
| Product Configuration | 4/63A. 90° Eğik Duvar Priz |
| Glow wire test | 850 °C üzerinde (üretici beyanı) |
| Mechanical interlock operation | Fiş takılıyken şalter etkinleşir; fiş yalnız OFF konumunda çıkarılır |
| Switch utilization category | AC-21 / AC-22 / AC-23 |
| Switch standard | IEC 60947 |
| Pole Arrangement | 3P+E |
| Frequency | 50/60 Hz |
| Contact Material | MS 58 |
| Voltage | 380V-450V |
