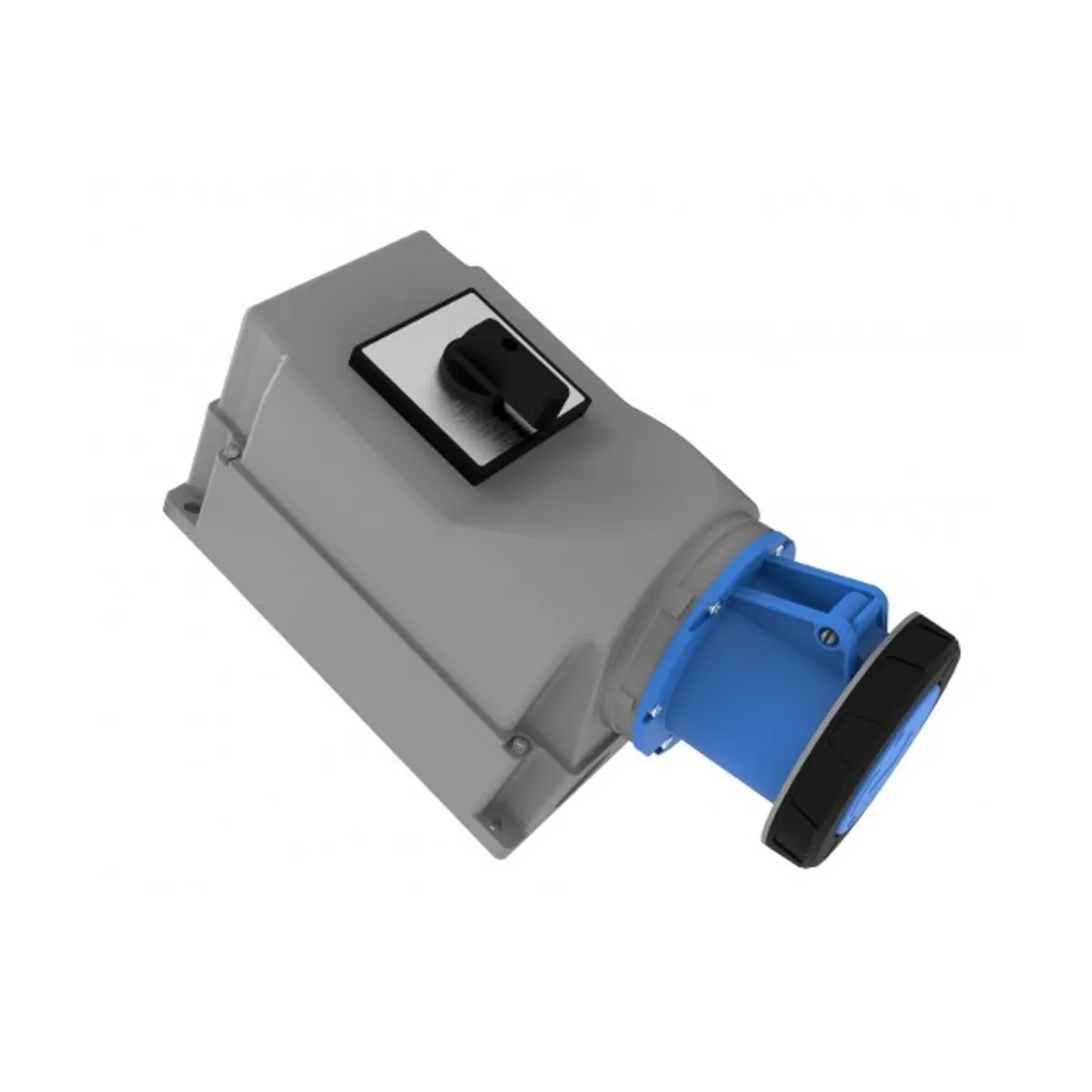

Bemis BC1-6403-7550 CEE 90° Angled Wall Socket with Cam Switch 125 A 2P+E IP65
- Brand: Bemis
- SKU: BC1-6403-7550
- MPN: BC1-6403-7550
- Price: 3894.42 TRY + VAT · incl. VAT 4673.30 TRY
- Availability: In stock
- Switched and Interlocked CEE Sockets
- Bemis Switched and Interlocked CEE Sockets
- Selection guide: Switched and Interlocked CEE Sockets Selection Guide: Technical Criteria and Engineering Practice
Bemis BC1-6403-7550 is a CEE 90° Angled Wall Socket with Cam Switch model. Rated Current: 125 A. Pole arrangement: 2P+E. Voltage: 220V. AC. IP Rating: IP65. Housing Material: Polyamide 6.
| Series | 3 Kontaklı CEE Norm Seri |
|---|---|
| Subseries | RS |
| IP Rating | IP65 |
| Rated Current | 125 A |
| Number of Contacts | 3 |
| Pole Arrangement | 2P+E |
| Voltage | 220V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Pilot Contact | Yok (pilotsuz seri) |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 90° |
| Switch | Available |
| Switch Type | Pako |
| Series Electrical Designation | 3/125A. (2P+E) 220V. AC 50/60 Hz. 6h (Polyamid 6) |
| Product Configuration | 3/125A. 90° Eğik Pako Şalterli Duvar Prizi |
| Grip surface | Darbe emici kauçuk kaplama |
| Seal construction | Sızdırmazlık contaları |
| Contact clamping | Çelik sekman |
| Terminal construction | Asansör klemens |
| Screw system | Yüksek torka dayanıklı alyan başlı vidalar |
| Cable retention | Sızdırmaz kablo sabitleme rakoru |
| Contact Material | MS58 pirinç |
| IK Impact Protection | IK10+ |
| Voltage range | 220–250 V |
| Heat-resistant material | Red fosfor (üretici tanımı) |
| Cable Entry Holes | 1 × Ø50 mm; 2 × Ø40 mm |
| Cover operation | Tek elle açık tutulabilir |
