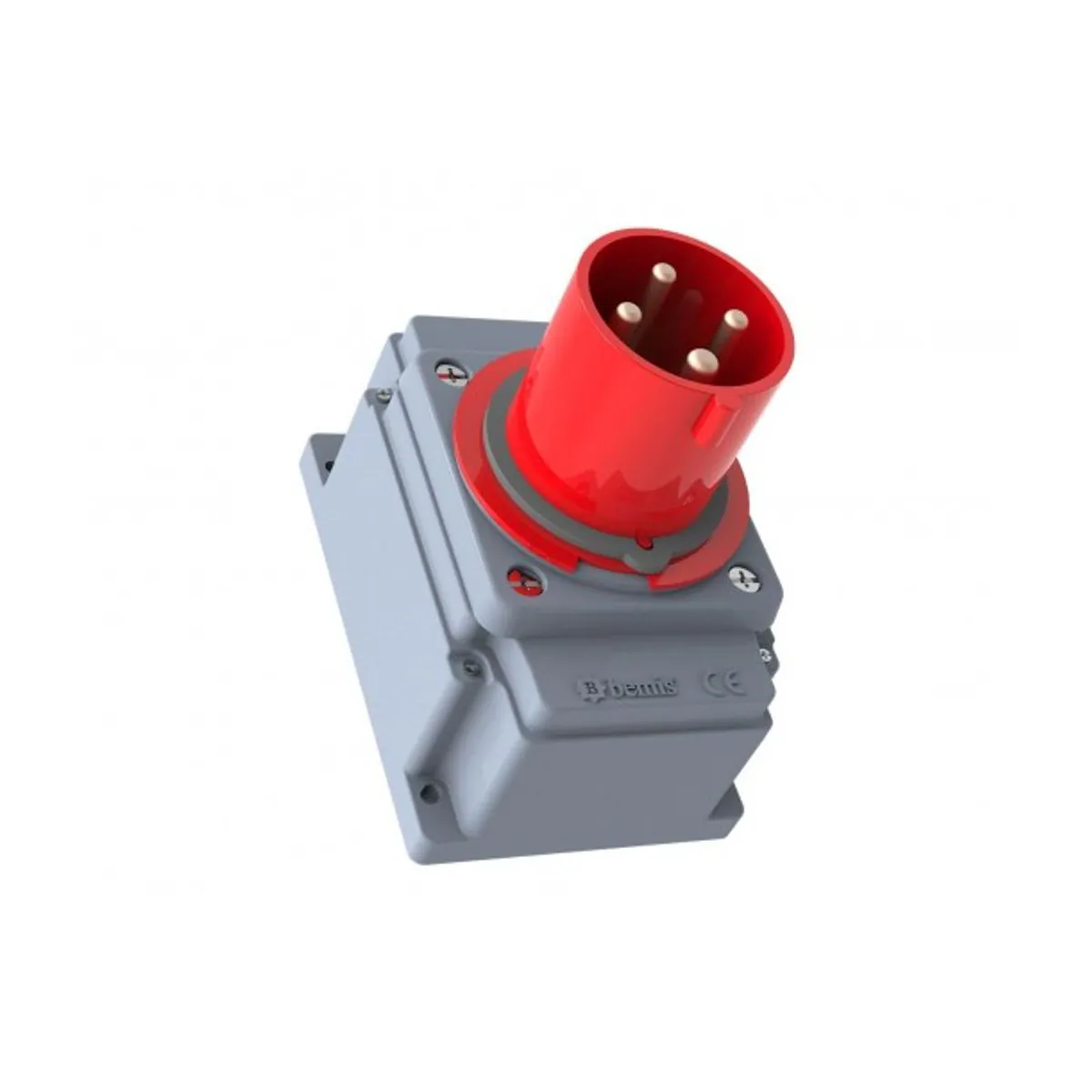

Bemis BC3-4504-2210 CEE Wall-Mounted Plug 63 A 3P+E IP44
- Brand: Bemis
- SKU: BC3-4504-2210
- MPN: BC3-4504-2210
- Price: 1080.06 TRY + VAT · incl. VAT 1296.07 TRY
- Availability: In stock
- CEE Straight Housing Wall Plugs
- Bemis CEE Straight Housing Wall Plugs
- Selection guide: CEE Straight Housing Wall Plugs Selection Guide: Technical Criteria and Engineering Practice
Bemis BC3-4504-2210 is a CEE Wall-Mounted Plug model. Rated Current: 63 A. Pole arrangement: 3P+E. Voltage: 380V. AC. IP Rating: IP44. Housing Material: Polyamide 6.
| Series | 4 Kontaklı CEE Norm Seri |
|---|---|
| Subseries | RS |
| IP Rating | IP44 |
| Rated Current | 63 A |
| Number of Contacts | 4 |
| Pole Arrangement | 3P+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Pilot Contact | Available |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Series Electrical Designation | 4/63A. (3P+E) 380V. AC 50/60 Hz. 6h (Polyamid 6) PİLOTLU |
| Product Configuration | 4/63A. Duvar Fiş |
| Grip surface | Darbe emici kauçuk kaplama |
| Seal construction | Sızdırmazlık contaları |
| Contact clamping | Çelik sekman |
| Terminal construction | Asansör klemens |
| Screw system | Yüksek torka dayanıklı alyan başlı vidalar |
| Cable retention | Sızdırmaz kablo sabitleme rakoru |
| Contact Material | MS58 pirinç |
| IK Impact Protection | IK10+ |
| Voltage range | 380–450 V |
| Heat-resistant material | Red fosfor (üretici tanımı) |
