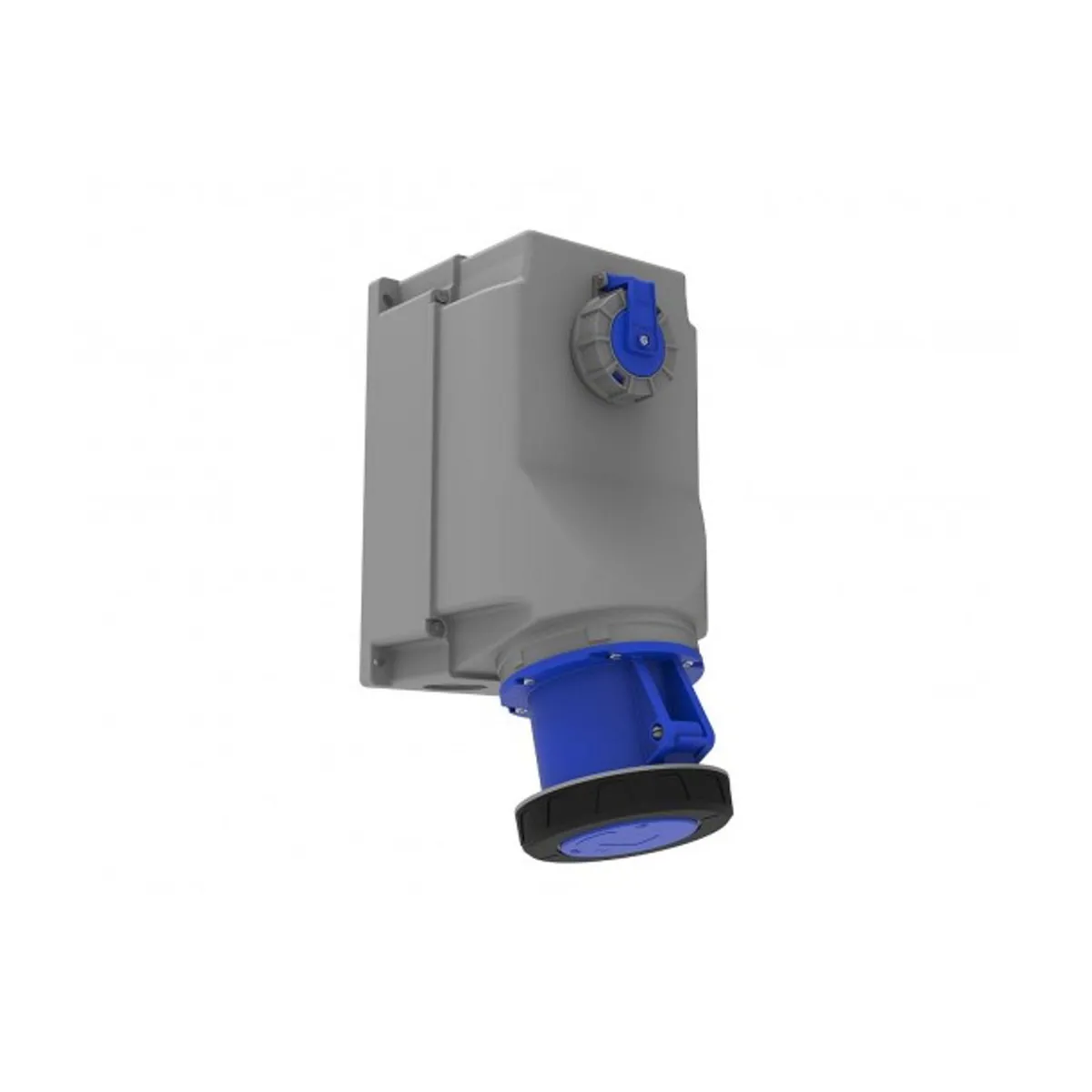

Bemis BC3-6403-7537 CEE 90° Angled Wall Socket with 1/16A. Machine Socket 125 A 2P+E IP67
- Brand: Bemis
- SKU: BC3-6403-7537
- MPN: BC3-6403-7537
- Price: 3489.75 TRY + VAT · incl. VAT 4187.70 TRY
- Availability: In stock
- CEE Angled Wall Sockets
- Bemis CEE Angled Wall Sockets
- Selection guide: CEE Angled Wall and Surface Sockets Selection Guide
Bemis BC3-6403-7537, CEE 90° Angled 1/16A. Max. Wall socket with socket model. Rated Current: 125 A. Pole arrangement: 2P+E. Voltage: 220V. AC. IP Rating: IP67. Housing Material: Polyamide 6.
| Series | 3 Kontaklı CEE Norm Seri |
|---|---|
| Subseries | RS |
| IP Rating | IP67 |
| Rated Current | 125 A |
| Number of Contacts | 3 |
| Pole Arrangement | 2P+E |
| Voltage | 220V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 6h |
| Pilot Contact | Available |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 90° |
| Series Electrical Designation | 3/125A. (2P+E) 220V. AC 50/60 Hz. 6h (Polyamid 6) PİLOTLU |
| Product Configuration | 3/125A. 90° Eğik 1/16A. Mak. Prizli Duvar Prizi |
| Grip surface | Darbe emici kauçuk kaplama |
| Seal construction | Sızdırmazlık contaları |
| Contact clamping | Çelik sekman |
| Terminal construction | Asansör klemens |
| Screw system | Yüksek torka dayanıklı alyan başlı vidalar |
| Cable retention | Sızdırmaz kablo sabitleme rakoru |
| Contact Material | MS58 pirinç |
| IK Impact Protection | IK10+ |
| Cover operation | Tek elle açık tutulabilir |
| Heat-resistant material | Red fosfor (üretici tanımı) |
| Internal wiring | Kablo bağlantıları yapılmış ve klemense toplanmış |
| Voltage range | 220–250 V |
| Cable Entry Holes | 1 × Ø50 mm; 2 × Ø40 mm |
