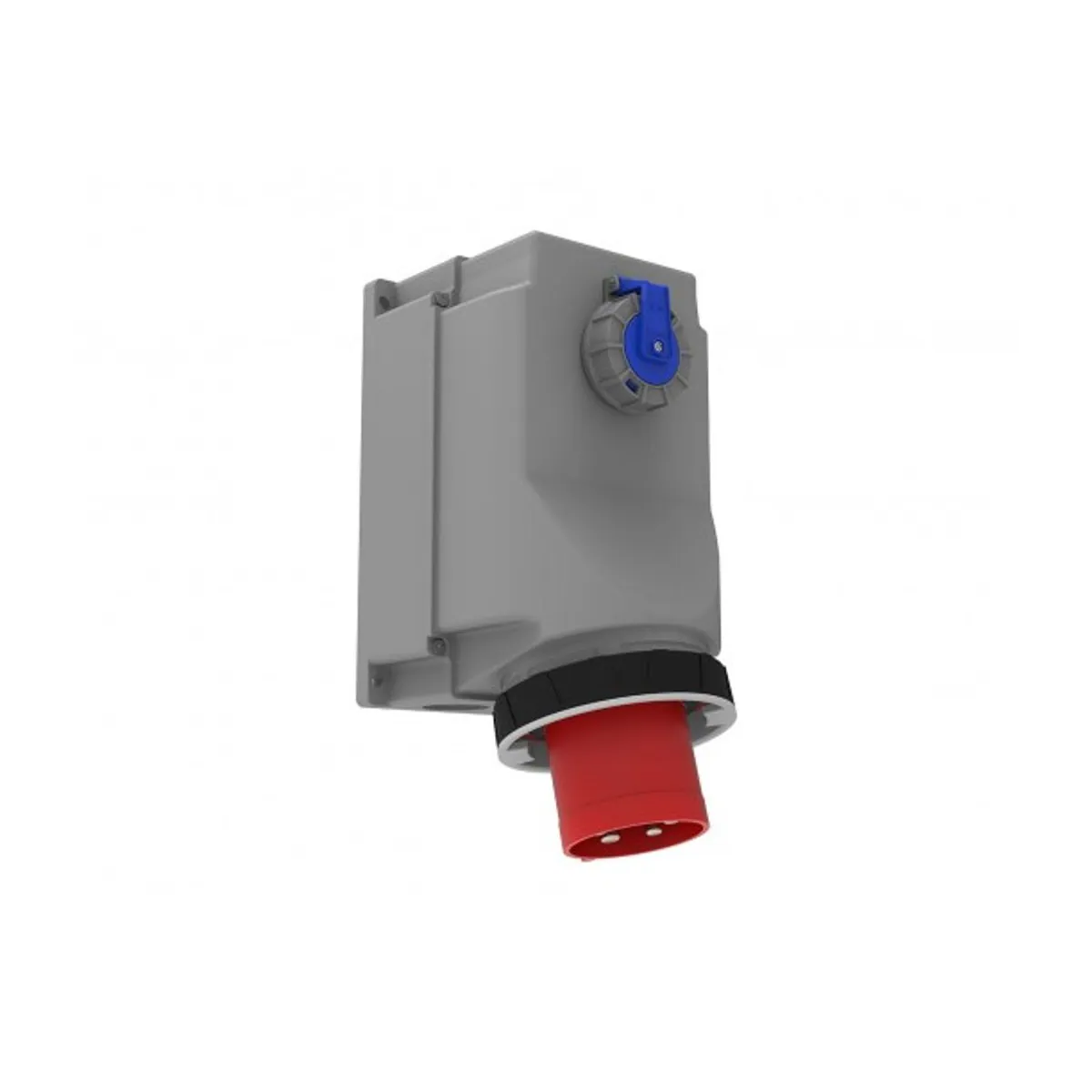

Bemis BC3-8504-7238 CEE 90° Angled Wall Plug with 1/16A. Machine Socket 160 A 3P+E IP67
- Brand: Bemis
- SKU: BC3-8504-7238
- MPN: BC3-8504-7238
- Price: 5864.66 TRY + VAT · incl. VAT 7037.59 TRY
- Availability: In stock
- CEE Angled Wall Plugs
- Bemis CEE Angled Wall Plugs
- Selection guide: CEE Angled Wall Plugs Selection Guide: Technical Criteria and Engineering Practice
Bemis BC3-8504-7238, CEE 90° Angled 1/16A. Max. Wall plug with socket model. Rated Current: 160 A. Pole arrangement: 3P+E. Voltage: 380V. AC. IP Rating: IP67. Housing Material: Polyamide 6.
| Series | 4 Kontaklı CEE Norm Seri |
|---|---|
| Subseries | RS |
| IP Rating | IP67 |
| Rated Current | 160 A |
| Number of Contacts | 4 |
| Pole Arrangement | 3P+E |
| Voltage | 380V. AC |
| Frequency | 50/60 Hz |
| Clock Position | 7h |
| Pilot Contact | Available |
| Housing Material | Polyamid 6 |
| Warranty Period | 5 years |
| Inclination Angle | 90° |
| Series Electrical Designation | 4/160A. (3P+E) 380V. AC 50/60 Hz. 7h (Polyamid 6) PİLOTLU |
| Product Configuration | 4/160A. 90° Eğik 1/16A. Mak. Prizli Duvar Fişi |
| Grip surface | Darbe emici kauçuk kaplama |
| Seal construction | Sızdırmazlık contaları |
| Contact clamping | Çelik sekman |
| Terminal construction | Asansör klemens |
| Screw system | Yüksek torka dayanıklı alyan başlı vidalar |
| Cable retention | Sızdırmaz kablo sabitleme rakoru |
| Contact Material | MS58 pirinç |
| IK Impact Protection | IK10+ |
| Heat-resistant material | Red fosfor (üretici tanımı) |
| Cover operation | Tek elle açık tutulabilir |
