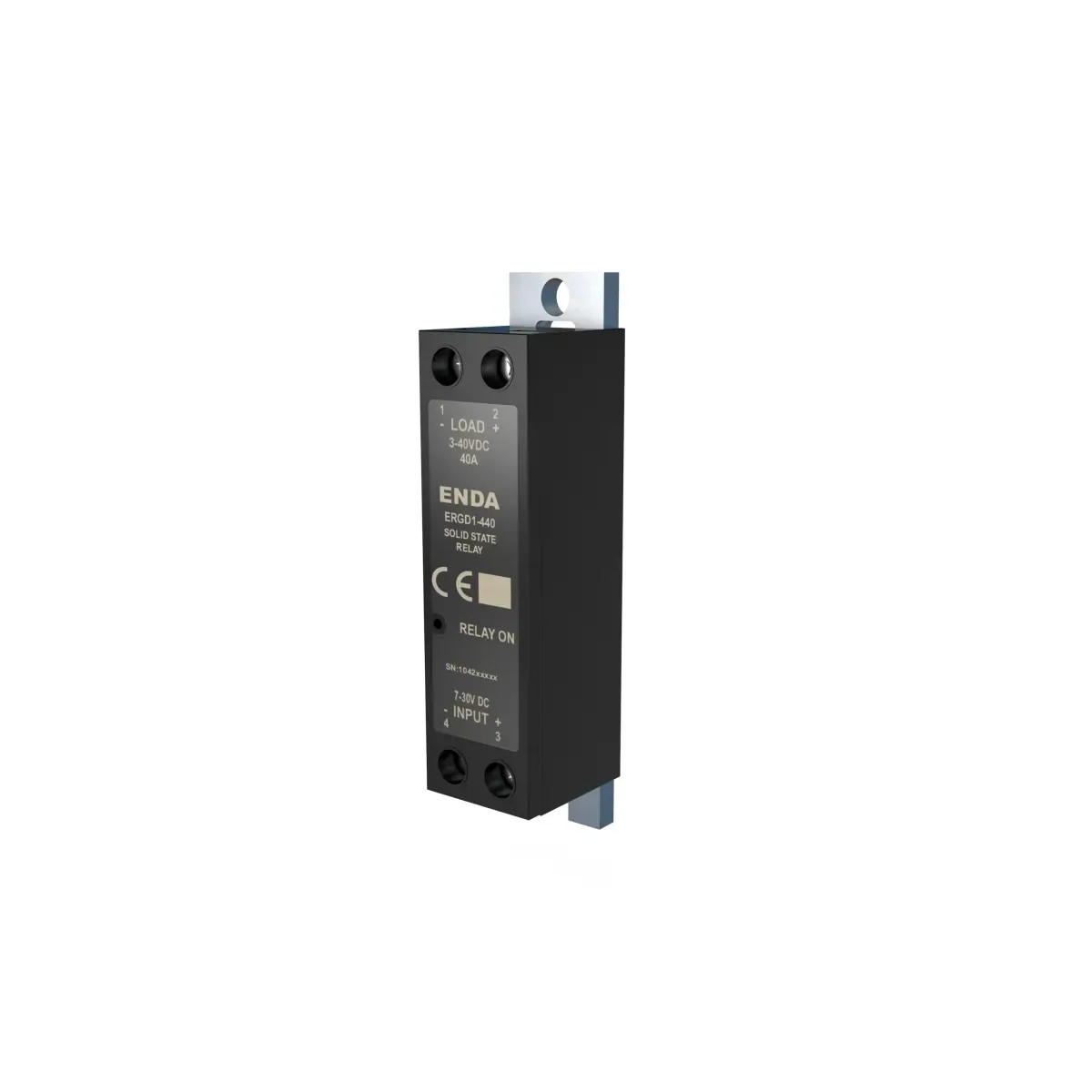

Enda EPGD1-440Z Zero Crossing Panel-Mounted Single-Phase DC-DC Solid State Relay
- Brand: Enda
- SKU: EPGD1-440Z
- MPN: EPGD1-440Z
- Price: 806.88 TRY + VAT · incl. VAT 968.26 TRY
- Availability: Made to order
- Solid State Relays (SSR)
- Enda Solid State Relays (SSR)
- Selection guide: Solid State Relays (SSR) Selection Guide: Technical Criteria and Engineering Practice
Enda EPGD1-440Z Zero Crossing Panel-Mounted Single-Phase DC-DC Solid State Relay. Solid State Relays (SSR) are used for PLC output, control and isolation. Technical values: Current 40A, Supply Type / Input Voltage 7 - 30V DC, Phase Type Single-Phase. Stock code: EPGD1-440Z.
| Current | 40 A |
|---|---|
| Supply Type / Input Voltage | 7 - 30V DC |
| Phase Type | 1-Phase |
| Load Voltage | 3-40V DC |
| Number of Poles | 1P |
| Minimum Operating Current | 1 mA DC |
| Leakage current | 0,25 mA DC |
| Non-repetitive Surge Current | 230 A DC (25°C) |
| On-state Voltage Drop | 1,6 V DC |
| Switching Frequency | 100 Hz |
| Junction-to-Case Thermal Resistance | ≤1,0 °C/W |
| Turn-on Voltage | ≥ 7VDC |
| Turn-off Voltage | < 6VDC |
| Input current | < 20mAdc |
| Turn-on Time | 5ms |
| Turn-off Time | 5ms |
| Housing Dimensions (W×H×D) | G45xY62xD31mm |
| Mounting Style | M4 vidalar ile panele monte edilir |
| Connecting Capacity | 4mm²'lik kablo |
| Tightening Torque | Max. 1,2Nm |
| Electromagnetic Compatibility (EMC) | EN 61326-1: 2013 |
| Operating Temperature | -25... +60 °C |
| Storage Temperature | -30... +100 °C |
| Relative Humidity | +40 °C'da %50, sıcaklık azaldığında artarak +20 °C'da %90 olabilir (yoğuşma olmamalı) |
| Operating Altitude | En çok 1000m |
| IP Rating | IP20 |
| Housing Material | Kendi kendine sönen plastik (EN 60695-11-10 standardına göre V-0) |
| Insulation voltage | 2500 Vrms 1 dak. (giriş ve çıkış terminalleri arasında) |
