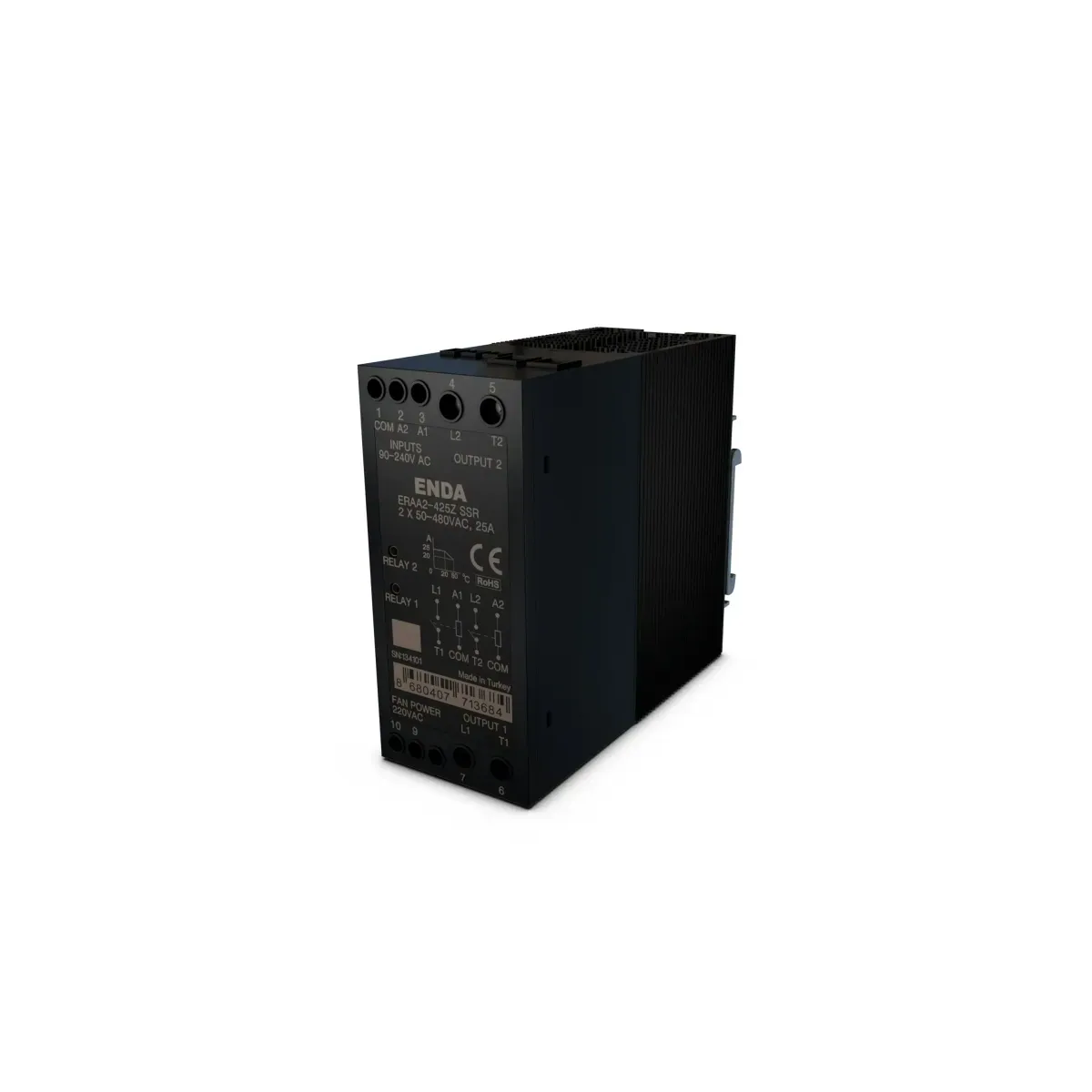

Enda ERAA2-425Z Zero Crossing DIN Rail-Mounted Monofaze,2 x Solid State Relay
- Brand: Enda
- SKU: ERAA2-425Z
- MPN: ERAA2-425Z
- Price: 3195.24 TRY + VAT · incl. VAT 3834.29 TRY
- Availability: Made to order
- Solid State Relays (SSR)
- Enda Solid State Relays (SSR)
- Selection guide: Solid State Relays (SSR) Selection Guide: Technical Criteria and Engineering Practice
Enda ERAA2-425Z Zero Crossing DIN Rail-Mounted Monofaze,2 x Solid State Relay. Solid State Relays (SSR) are used for PLC output, control and isolation. Technical values: Current 2x25A, Supply Type / Input Voltage 90 - 240VAC, Phase Type Single-Phase. Stock code: ERAA2-425Z.
| Current | 2x25A |
|---|---|
| Supply Type / Input Voltage | 90–240 V AC |
| Phase Type | 1-Phase |
| Switching method | Sıfır geçiş |
| Number of Poles | 2P |
| Overload Current | 70 Arms (t=1s/25°C) |
| Non-repetitive Surge Current | 190 Arms (25°C) |
| On-state Voltage Drop | 1,8 Vrms |
| Leakage current | 8 mArms |
| I²t Value for Fusing | 265 A²s (t=10ms) |
| Minimum Operating Current | 200 mArms |
| Frequency | 50/60 Hz |
| Turn-on Voltage | > 75Vac |
| Turn-off Voltage | < 6Vac |
| Input current | < 2x8mAac |
| Turn-on Time | Maksimum 1 Periyot |
| Turn-off Time | Maksimum 2 Periyot |
| Housing Dimensions (W×H×D) | G46xY100xD117mm |
| Mounting Style | EN 60715 standardı TH35 tipi raya monte edilir |
| Connecting Capacity | Güç hatları için 16mm²'lik (kablo ucu ile 25mm²'lik) kablolar, sinyal hatları için 4mm²'lik kablolar |
| Tightening Torque | Max. 1,2Nm |
| Standards | EN 60947-4-3 |
| Operating Temperature | -25... +60 °C |
| Storage Temperature | -30... +100 °C |
| Relative Humidity | +40 °C'da %50, sıcaklık azaldığında artarak +20 °C'da %90 olabilir (yoğuşma olmamalı) |
| Pollution Degree | 2 |
| Overvoltage category | II |
| Operating Altitude | En çok 1000m |
| IP Rating | IP20 |
| Housing Material | Kendi kendine sönen plastik (EN 60695-11-10 standardına göre V-0) |
| Insulation voltage | 2500 Vrms 1 dak. (giriş ve çıkış terminalleri arasında) |
