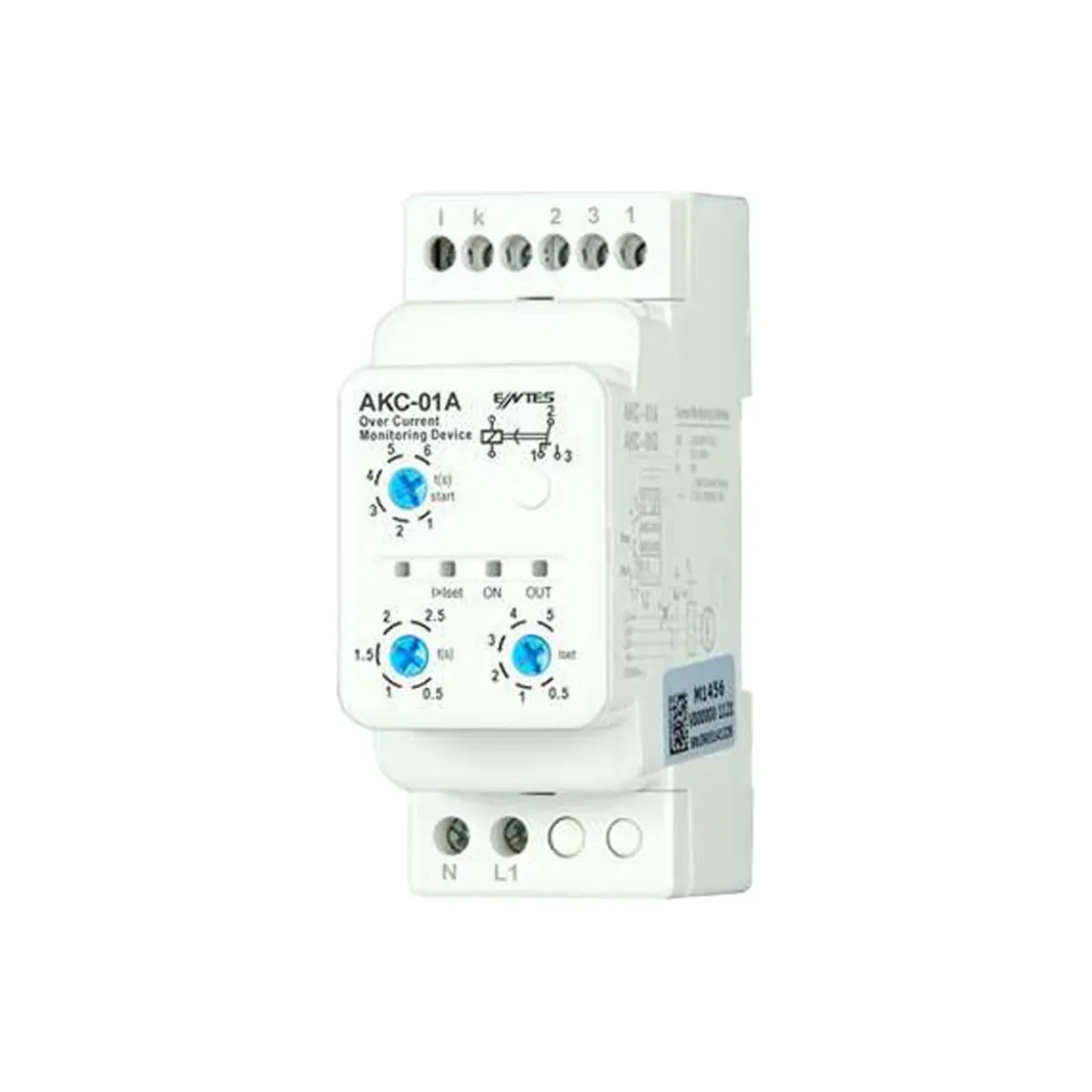

Entes AKC-01A Current Protection Relay, Overcurrent, 230VAC
- Brand: Entes
- SKU: M1456
- MPN: M1456
- Price: 1037.40 TRY + VAT · incl. VAT 1244.88 TRY
- Availability: Made to order
- Current Protection Relays
- Selection guide: Current Protection Relays Selection Guide: Technical Criteria & Application Standards
Entes AKC-01A Current Protection Relay, Overcurrent, 230VAC. Current protection relays are used to prevent faults at pumps, compressors, elevators and mains inputs. Stock code: M1456.
| Protection Functions | Aşırı Akım Koruması |
|---|---|
| Current Input | 1-10000/5A veya 0,5-5A Direkt |
| Operating Range | (0.9 -1.1) x Un |
| Start Delay | 1 - 6 sn. |
| Ambient Temperature | -5 °C ; +55 °C |
| IP Rating | IP20 |
| Mounting Type | Pano içine dikey veya klemens rayına |
| Gram | 0.3 kg |
| Current Setting Range | 0.5 - 5A(AC) |
| Operating Frequency | 50/60 Hz |
| Relay Output | 1 C/O,8A,2000 VA |
| Trip delay setting range | 0.5 - 2.5 sn. |
