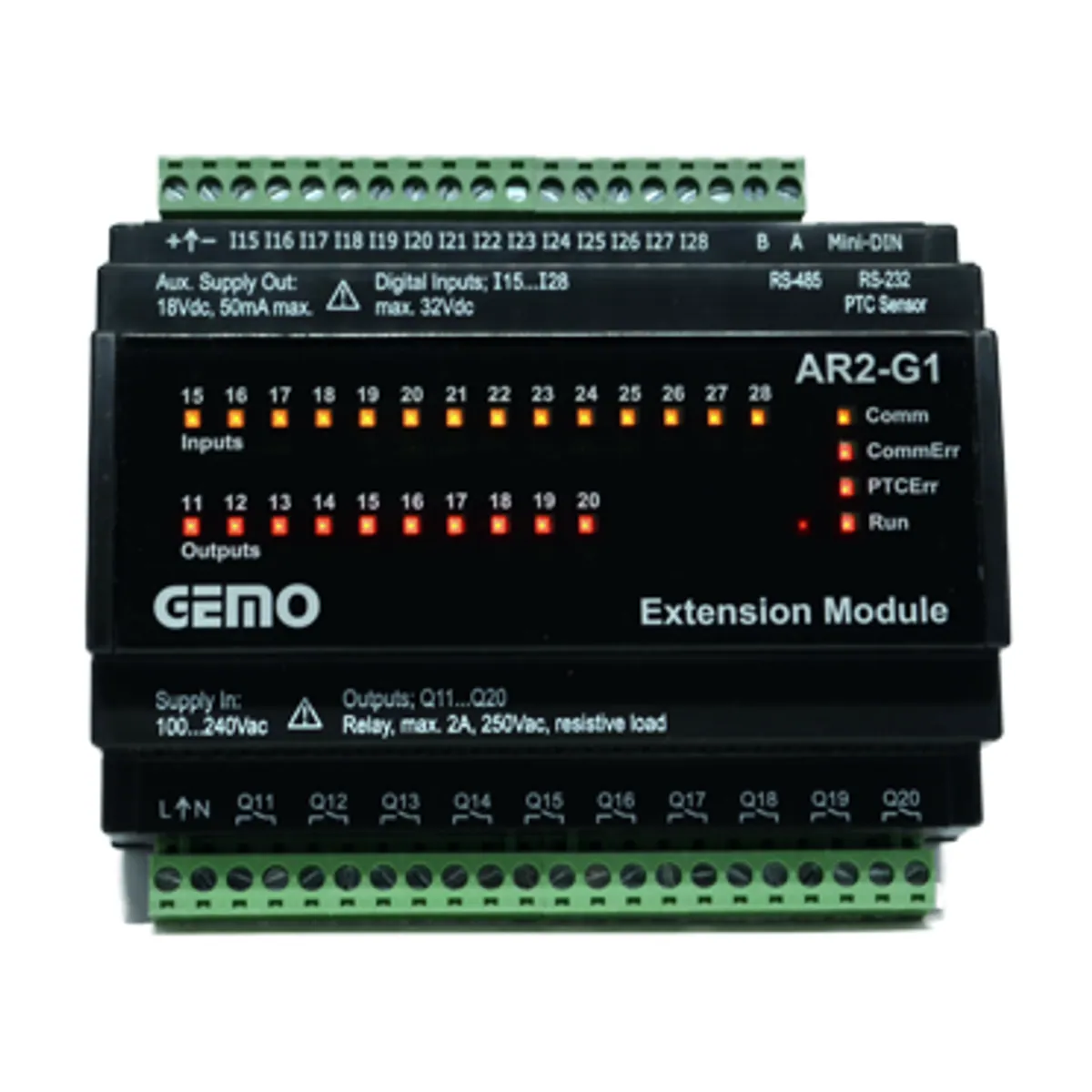

GEMO AR2-G1-24VDC-12D2A Expansion Module, 18..32 VDC, 12 Digital Input, 2 Analog Input, 10 Relay Output
- Brand: GEMO
- SKU: AR2-G1-24VDC-12D2A
- MPN: AR2-G1-24VDC-12D2A
- Price: 3405.27 TRY + VAT · incl. VAT 4086.32 TRY
- Availability: In stock
- Mixed Analog and Digital I/O Modules
- Selection guide: PLC Input and Output Modules Selection Guide
GEMO AR2-G1-24VDC-12D2A, expansion module for AR2-A-14D, AR2-A-12D2A and AR2-P series. Operates on 18..32 VDC supply; offers 12 digital inputs, 2 0-10 V analog inputs and 10 relay outputs.
| Supply Type | 18..32Vdc |
|---|---|
| I/O Input | 12 Sayısal Giriş, 2x10Vdc Analog Giriş |
| I/O Output | 10xRöle |
| LED Indicator | Available |
| Compatible Devices | AR2-A-14D, AR2-A-12D2A, AR2-P |
| PTC Input | 2 telli PTC (-50..150 °C) |
| Digital input | OFF:0..2VDC; ON:10..32VDC, maks.32VDC, ortak (-) negatif uç (PNP/Totem Pole), izole (opto-coupler) |
| Auxiliary Supply Output | 18Vdc, maks. 50mA (sayısal girişler için) |
| Relay Output | Röle, maks. 250VAC, 2A, Rezistif load |
| Size Type | 125x115x65 mm (klemens soketi takılı olarak) |
| Mounting Type | Pano içi raya sabit montaj |
| Power Consumption | En fazla 6W |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | 30 °C'ye kadar %80, sonra doğrusal azalarak 50 °C'de %50 (yoğunlaşmasız) |
| Operating Altitude | En çok 2000 m |
| Standards | EMC: TS EN 61000-6-2:2019, IEC 61000-6-2:2016 RLV, TS EN 61000-6-4:2020, IEC 61000-6-4:2018 RLV; Güvenlik: TS EN 61010-1:2012 + A1:2019 + A1/AC:2019 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
