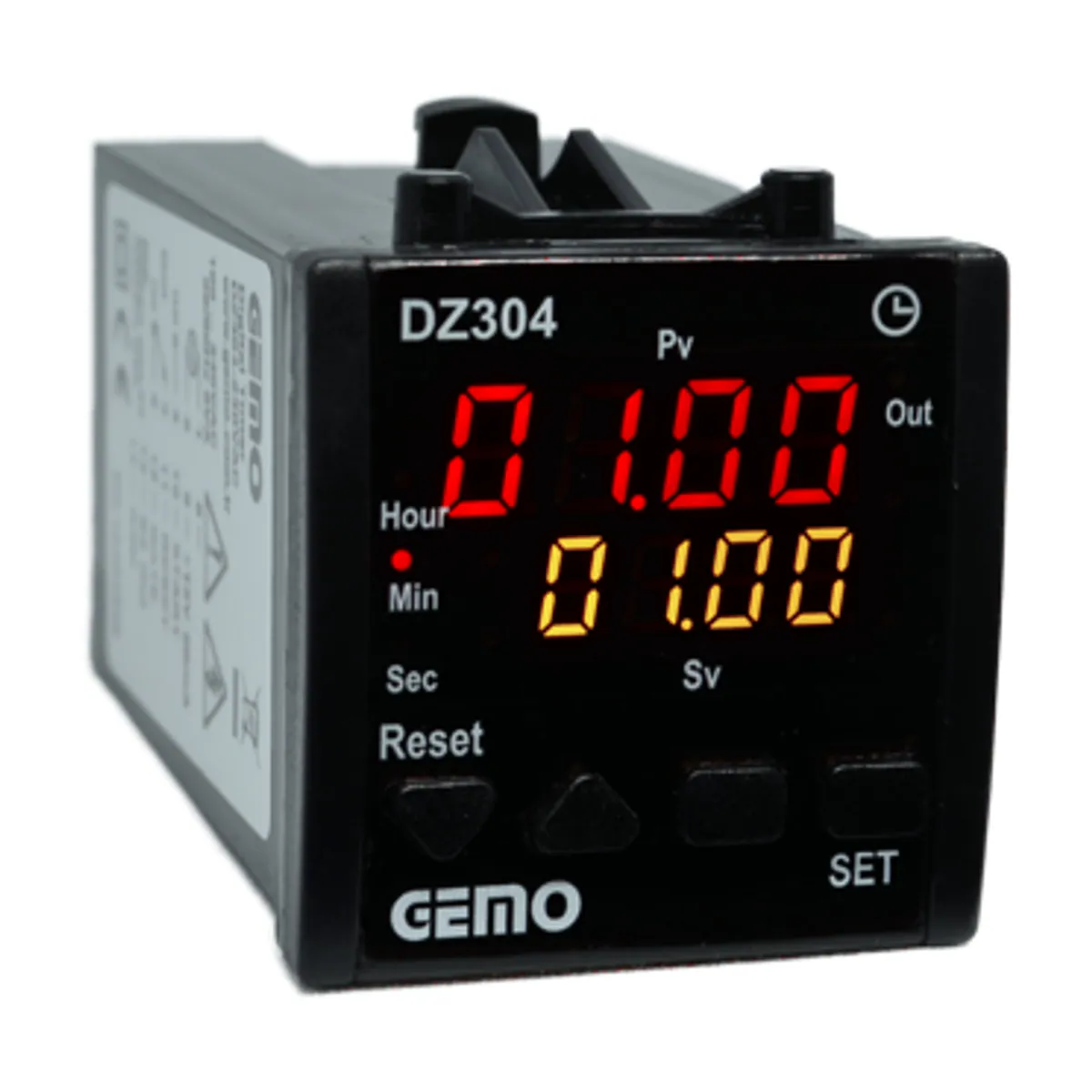

GEMO DZ304-230VAC Multifunction Timer Relay
- Brand: GEMO
- SKU: DZ304-230VAC
- MPN: DZ304-230VAC
- Price: 1313.85 TRY + VAT · incl. VAT 1576.62 TRY
- Availability: In stock
- Multi-Function Timer Relays
- GEMO Multi-Function Timer Relays
- Selection guide: Multi-Function Timer Relays Selection Guide: Technical Criteria and Engineering Practice
GEMO DZ304-230VAC multifunction time relay; with 100..240Vac supply voltage, programmable from 0.1 s to 99 hours.
| Supply Type | 100..240 VAC |
|---|---|
| Timer Relay Time Range | 0,1 sn...99 saat |
| Display | 2x4 Dijit, PV ve SV |
| Size Type | 48x48 mm |
| Function | Çok Fonksiyonlu (13 Mod) |
| Control Inputs | START, RESET, GATE |
| Panel Cut-out | 45,5x45,5 mm |
| Relay Output | Röle (NA-O-NK), 250VAC, 2A, Rezistif load |
| Solid-State (SS) Output | Open collector (NPN çıkış), 30V, 100mA maks. |
| Sensor Supply Output | 12VDC, 50mA maks. (regülesiz) |
| Resolution | 1 dak. / 1 san. / 0.1 san. |
| Accuracy | ± % 0.5 (Tam Skalanın) |
| Power Consumption | < 6VA |
| Operating Temperature | 0 .. 50 °C |
| Storage Temperature | -10 °C .. 60 °C (buzlanma olmadan) |
| Relative Humidity | 30 °C'ye kadar %80, sonra doğrusal azalarak 50 °C'de %50 (yoğunlaşmasız) |
| Operating Altitude | < 2000 m |
| Standards | EMC: EN 61000-6-1, EN 61000-6-3; Güvenlik: EN 61010-1 |
| Pollution Degree | 1 |
| IP Rating | IP20 |
| Tightening Torque | en fazla 0.5 N.m (klemens) |
| Mounting Type | Panel tipi sabit montaj |
